Dump Semi Trailer and truck freight are the most commonly used vehicles in logistics. What are the differences between Dump Semi Trailer and truck freight, and what are the advantages and disadvantages?
In the process of transportation, bulk cargo is often carried, and it will consume a lot of manpower when unloading the goods. Therefore, now the carrying vehicle has a self-unloading function, which can automatically move the goods of the vehicle, saving the use of manpower in the handling process. There is also an Dump Semi Trailer in the semi-trailer series.
6 Units 100 Ton Dump Semi Trailer for Sale in Mauritania
Due to the difference in the purpose of the vehicle and its body structure, common Dump Semi Trailer can be divided into two types of lifting: side-over and back-over. Why is it designed like this?
Side tipper trailer lift is rare, and the model has a large limitation
Side tipper trailer lift generally have longer body sizes (such as semi-trailers, dump trucks with a cargo compartment size longer than 9.6m), and the cargo carried by the side tipper trailer is relatively fixed, and the unloading site is relatively flat. Since the side tipper trailer cannot be displaced during rollover and unloading, in order to prevent the tires of the vehicle from being buried by the goods and unable to drive out during unloading, and to more thoroughly unload the goods in the compartment, a common method is to cooperate with the shift support to unload the goods.
Due to the low lift height and the low center of gravity of the side tipper trailer in the form of rollover lift, it is less prone to rollover accidents. However, due to the limitation of its lifting form, the loaded goods and the unloading site have certain limitations, so they must be used in conjunction with the shift support.
3 axle semi dump trailer for sale
Flexible and convenient, end dump semi trailer can be seen everywhere
Our most common form of lifting should be the backflip. This type of lifting is generally used on 100t dump semi trailer with a cargo compartment length of less than 8.6 meters. Loading goods is more flexible and changeable. the unloading site is much more free and there are basically no restrictions. Due to the high height of the dump semi trailer after back-overlifting, the center of gravity becomes extremely unstable. If the ground is uneven during unloading, it is easy to roll over.
Package of end dump semi trailer
1. Before driving, check the control valve handle of the End Dump Semi Trailer and the power take-off switch to ensure that they are reliably locked in the "stop" position to ensure that the gear pump does not work to prevent losses caused by automatic lifting of the carriage on the way.
2. Regardless of lifting or landing, in order to make the gear pump work, the clutch pedal should be stepped on first, so as to avoid impact when the power take-off gear meshes, which may cause serious wear or breakage of the gear teeth.
3. Check whether the manual handles, hooks and other parts are open before lifting the heavy 100 Ton Dump Semi Trailer to ensure that the door can be opened normally when lifting to prevent major accidents such as overturning.

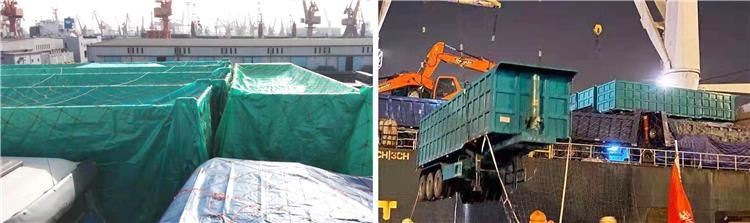

Shipment of 6 Units 3 axle Dump Semi Trailer
4. When the 100 Ton Dump Semi Trailer is lifted, the engine speed is not allowed to exceed 2400r/min to avoid damage to the oil pump due to overspeed operation, or the lift is too large to make the 100 Ton Dump Semi Trailer unstable and roll over; when it is about to be lifted to the maximum angle, the throttle cannot be increased , Otherwise it may cause the car to be lifted excessively, which will cause the rear box to be deformed, the dump semi trailer to turn over and damage, and the oil cylinder to pull the cap and other lifting parts to be damaged.
5. When using mechanical equipment to load goods, it should be poured into the carriage from a lower position as much as possible to avoid damage or deformation of the bottom plate or even the main beam of the Dump Semi Trailer for sale due to forced impact.

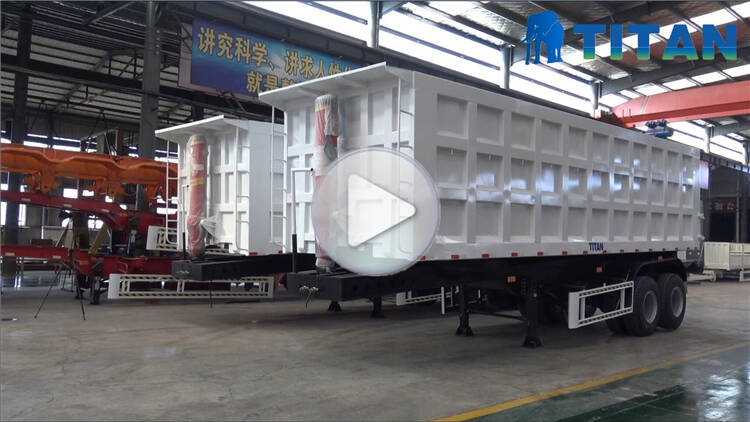

Through the video below, you can learn about different types of tipper semi trailers, such as u shape dump semi trailer, side tilted dumper trailer, container tipper trailer, tipping chassis trailer. And the process, testing, packaging and customer feedback, etc.
