Table of contents
Chapter 1: What is a detachable gooseneck trailer?
Chapter 2. How does a detachable gooseneck trailer work?
Chapter 3. How much does a gooseneck lowboy trailer price?
Chapter 4: What are the characteristics of a detachable gooseneck trailer?
Chapter 5: What is the purpose of a detachable gooseneck lowboy trailer?
A detachable gooseneck trailer for sale is commonly used to haul heavy equipment and machinery, such as excavators, bulldozers, and other large construction equipment. The detachable lowboy gooseneck trailer for sale is perfect for hauling large equipment like this because they are usually tall and wide and would exceed standard legal height and weight restrictions. The detach trailer for sale uses a concave beam type. Detachable gooseneck trailer can separate the gooseneck from the trailer, and achieve contact between the front end of the vehicle and the ground. After the cargo or equipment is loaded, the lowboy trailer for sale is restored to the original transportation state in time for transportation.
Common low bed trailer, should use the ramp behind the trailer for cargo loading. Yet, some large machinery and equipment, such as pile drivers, large rotary drills, large excavators, and large bulldozers, have very high centers of gravity due to their very high height. There is a great risk of later loading. Loading method for detachable gooseneck trailers for sale: cargo is loaded from the front. Detachable gooseneck lowboy trailer price cargo table is very low, so the stability and security are very good.
Uncoupling for Loading
During coupling and uncoupling, the detachable gooseneck trailer assembly is let to a lowered position. During uncoupling, the safety pin handle gets puled and locked open to let the safety pin detach the T-bar yoke free from the yoke pocket. The control lever for the hydraulic ram feature on the other hand is maneuvered to provide hydraulic pressure fluid inside the dram in order to lift the thrust blocks somewhat clear off their sitting positions on the main beam.
After achieving this, the lock finger gets retracted and the crank handle then is swung in an upward manner to anchor the safety hooks and the thrust blocks upwardly. Once this is attained, the lever is then locked in position through the lock finger that is fit in an upper coupling hole for the same.
Next, the hydraulic ram feature gets extended further to facilitate a further gooseneck rotation with respect to the trailer bed. This is done to facilitate the withdrawing of the two lock pins that are engaged with the hooks.
The pins get swung in an upward manner through the use of the crank handle. On achieving this, the hydraulic pressure in the ram gets reversed hence allowing the pressure to go down in the cylinders’ bottom chamber. This action slowly lowers the gooseneck and the trailer bed to the ground. You can choose to place a removable support block in between the trailer frame and the gooseneck beam in order to keep the gooseneck slightly off the ground surface. It is at this point when you can move the tractor away in order to give room for loading.
Coupling for Transportation
Once your cargo has been safely loaded on the detachable gooseneck lowboy trailer bed, it is time to reconnect the gooseneck and the trailer bed ready for transit. Basically, this is a reverse procedure of the uncoupling operation.
First, the operator needs to reverse back to the trailer bed location. Ensure that the coupling hooks are set in position to facilitate easy engagement.
The forward section of the trailer bed has a forwardly swerving entryway to make the hooks align with their attaching positions. When the T-bar yoke is perfectly aligned with the yoke pocket, fluid pressure can now be supplied to the hydraulic cylinders’ top chambers.
This forces the piston rods downwards hence driving the T-bar yoke directly into the pocket. The safety pin is then inserted to ensure a positive link between the pocket and the T-bar yoke. More hydraulic pressure is supplied into the cylinders to move the trailer bed and the gooseneck in an upward direction.
The trailer bed should be moved to reach a position higher than its horizontal operating level to facilitate the moving of the lock pins into their perfect locking position. Once this is achieved, the hydraulic rams are then retracted back to allow the trailer bed and the gooseneck to descend.
The next thing is to move the safety hooks and the thrust blocks downward into an engaging position to lock them in place. After that, the fluid pressure in the rams is then reversed moderately. This provides a hydraulic interlock that holds the thrust blocks tightly in place. Once this is done, the lowboy trailers for sale near me assembly is now ready for over the road transportation.
The standard tri axle detachable gooseneck trailers for sale price is 29600 USD, configuration and load capacity can be customized for you, welcome to contact us.
1. Strong carrying capacity

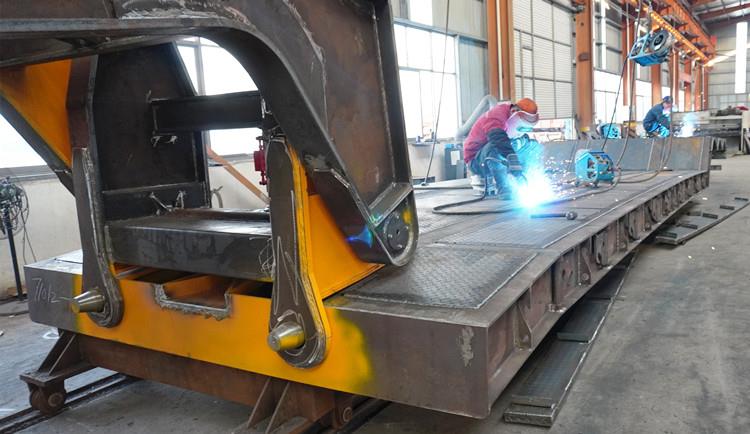

TITAN detachable lowboy trailer for sale main beam of TITAN is made of HG60 high-strength structural steel. The yield strength of HG60 steel is ≥ 620MPa, which is more durable and stronger than ordinary steel. Its bearing capacity is 5 times of that of Q345 steel trailer. TITAN used detach trailer for sale adopts reinforced the gooseneck and upper and lower plate by double layer.
2. Low center of gravity and good stability
Due to the low ground clearance and low longitudinal beam height of detachable gooseneck trailers for sale, the load-bearing surface is 300-400mm lower than that of the normal concave-center removable gooseneck trailer for sale, thereby effectively reducing the height of the center of gravity of the loaded goods and improving the stability during transportation.

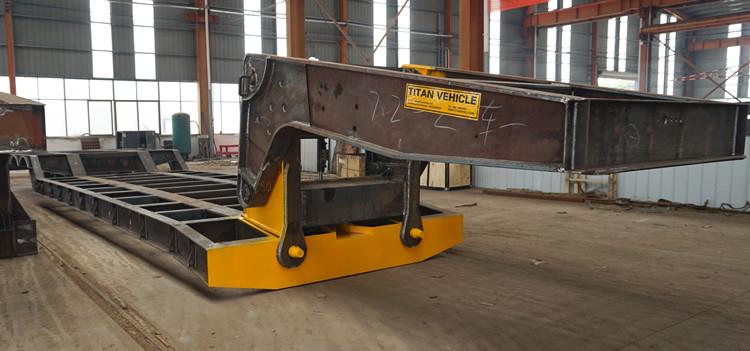

TITAN detachable lowboy gooseneck trailer for sale near me bottom plate, Other suppliers usually use 3 or 4 mm bottom plate, But TITAN 50 ton detachable lowboy trailers for sale adopt 5 mm thick bottom plate, It’s more durable and won’t be deformed.
3. The effective length of the cargo bed is long
Because this type of model eliminates the rear ladder, the bearing surface can be lengthened, and because the construction machinery does not go from the rear, the slope angle in front of the bridge can be appropriately increased, so that the bearing surface can be lengthened. The length of the low flat cargo table with a ladder at the end is longer, which can effectively load more loads, indirectly improve the loading efficiency, and create greater benefits for users.
A detachable gooseneck trailer is a specialized type of trailer commonly used for transporting heavy equipment. Here are some of its key characteristics:
1. Detachable Gooseneck: The trailer has a detachable front end that can be removed to allow the cargo to be loaded onto the detachable gooseneck trailer from the front.
2. Versatility: The detachable gooseneck design allows the trailer to be used for a variety of different cargoes, including heavy equipment like bulldozers, excavators, and cranes.
3. Low Platform: Due to the low ground clearance and low longitudinal beam height of this kind of detachable gooseneck trailer for sale, the load-bearing surface is 300-400mm lower than that of the normal concave-center detachable gooseneck trailer, thereby effectively reducing the height of the center of gravity of the loaded goods and improving the stability during transportation.
Detachable Gooseneck Lowboy Trailer for Sale in Nigeria
4. High Capacity: The construction of the trailer is typically very robust, allowing it to handle heavy loads with ease. Detachable gooseneck trailer's main beam of TITAN is made of HG60 high-strength structural steel. The yield strength of HG60 steel is ≥ 620MPa, which is more durable and stronger than ordinary steel.
5. Safety: The low profile and sturdy construction of the detachable gooseneck trailer for sale provide added safety benefits when transporting heavy equipment or oversized loads.
6. Efficient: Because this type of model eliminates the rear ladder, the bearing surface can be lengthened, and because the construction machinery does not go from the rear, the slope angle in front of the bridge can be appropriately increased, so that the bearing surface can be lengthened. The length of the low flat cargo table with a ladder at the end is longer, which can effectively load more loads, indirectly improve the loading efficiency, and create greater benefits for users.
The purpose of a detachable gooseneck lowboy trailer is to transport heavy and oversized loads, such as construction equipment, machinery, or large vehicles. The detachable gooseneck design allows for easy loading and unloading by detaching the front of the trailer from the truck, creating a ramp for the equipment or cargo to be loaded onto the lowboy deck. This type of trailer offers increased stability and weight-bearing capacity compared to other trailers, making it suitable for transporting extremely heavy loads.
Detachable gooseneck lowboy trailers have various applications in industries such as construction, mining, agriculture, and transportation. Here are a few specific applications:
1. Heavy Equipment Transport: They are commonly used to transport heavy construction machinery like excavators, bulldozers, cranes, and loaders. The detachable gooseneck allows for easy loading and unloading of these large and heavy equipment.
2. Oversized Cargo: The lowboy trailer is ideal for transporting oversized cargo that may not fit within the height limits of standard trailers. This includes large industrial components, wind turbine parts, prefabricated structures, or even military vehicles.
3. Road Construction: Detachable gooseneck lowboys are frequently employed in road construction projects to transport paving machines, asphalt rollers, and other heavy road-building equipment.
4. Agriculture and Farming: They can be utilized to haul agricultural machinery like tractors, combine harvesters, sprayers, or large farm implements.
5. Oilfield Equipment: Detachable gooseneck lowboy trailers are often used in the oil and gas industry to transport heavy drilling rigs, frac tanks, and other oilfield equipment.
Overall, the flexibility and heavy-duty capacity of detachable gooseneck lowboy trailers make them valuable for transporting oversized and heavy loads across various industries.
