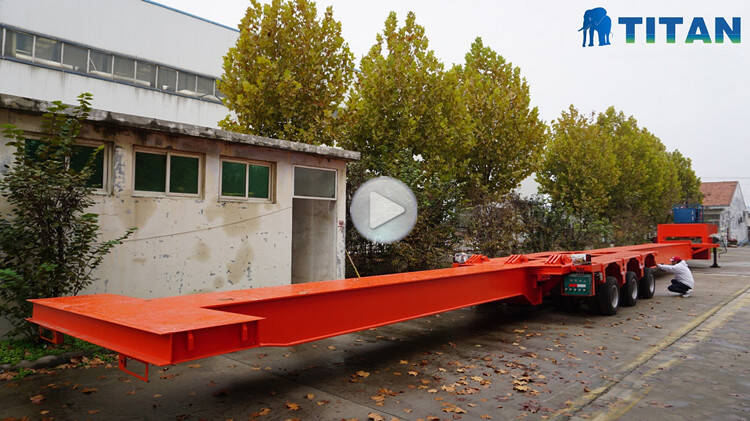

| 64m single beam extendable trailer | 4 axle 60m blade transportation trailer | 56 meters telescopic trailer testing |
Chapter 1. What is wind turbine blade transport trailer?
Chapter 2. Mode of wind turbine trailer
2-1 Ordinary extendable flatbed trailer
3-1 Advantages of wind turbine trailer
3-2 Disadvantages of wind turbine blade trailer
Chapter 4. How are wind turbine blades transported?
Chapter 5. How to choose the right wind turbine blade trailer?
Chapter 6. How to choose a wind blade trailer supplier?
Wind Turbine Blade Transport Trailer, a kind of blade lifters for transport rotor blade,wind blades. That is best solution to avoid obstacles, such as buildings and trees effectively, especially running on steep hills or narrow winding mountainous roads.
Fan equipment mainly includes wind blades, nacelles, hubs and towers, and each component is an over-limit item for ordinary road transportation, which requires professional vehicles for transportation and assemble a wind turbine. So wind turbine transportation companies need it.
For wind blades, the length is extremely long, which becomes the main feature that distinguishes it from other equipments. Considering the particularity of wind turbine blade length, the currently constructed mountain wind farms generally use semi-trailers combined with high-power tractors to complete the transportation of longest wind turbine blades.
The truck head is the power source for the transportation of wind blade equipment. The power and other performance of the truck directly affect the climbing performance of the wind turbine blade trailer transport trailer vehicle. There are many types of trucks on the market, ranging from 10t to 300t according to the total mass of the truck.

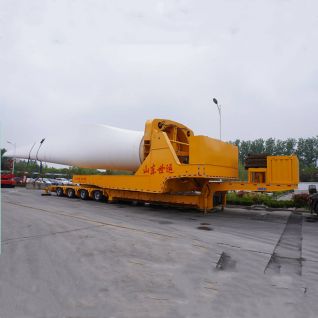

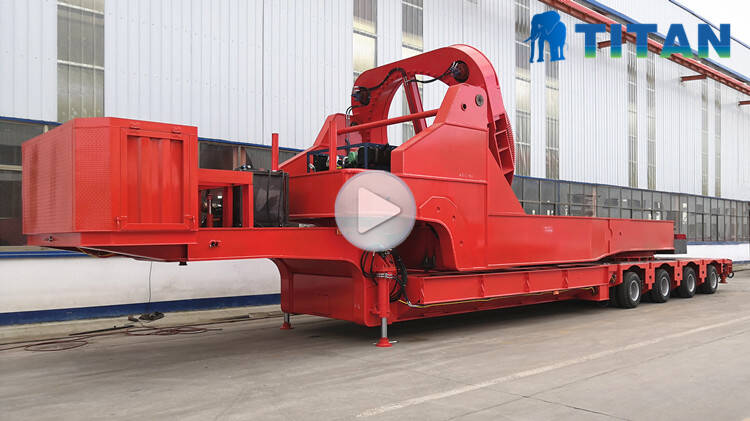

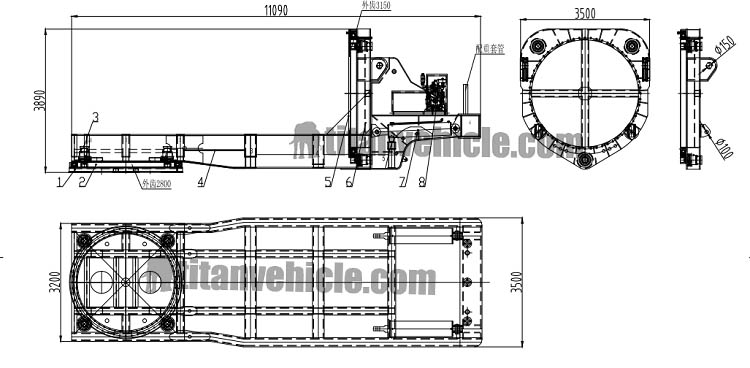

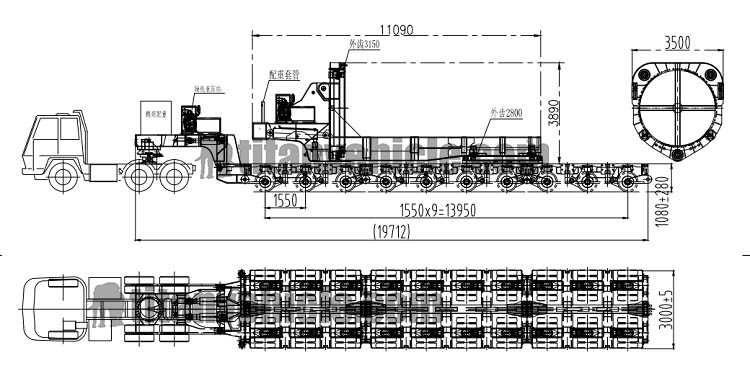

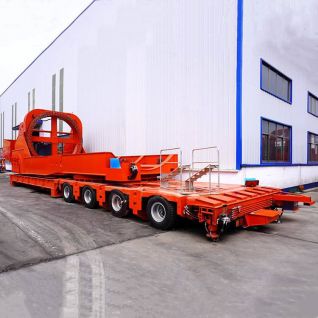

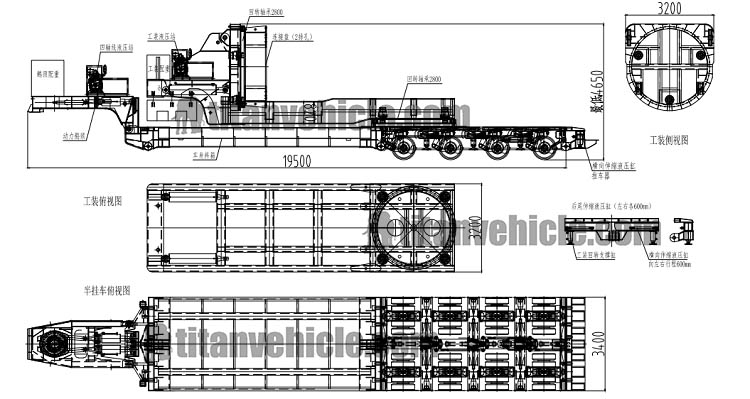

Large modular trailer with rotor blade adapter, transporting 121-156 model windmill blades, length 59.5-76 meters, the maximum can transport blades within 80 meters.

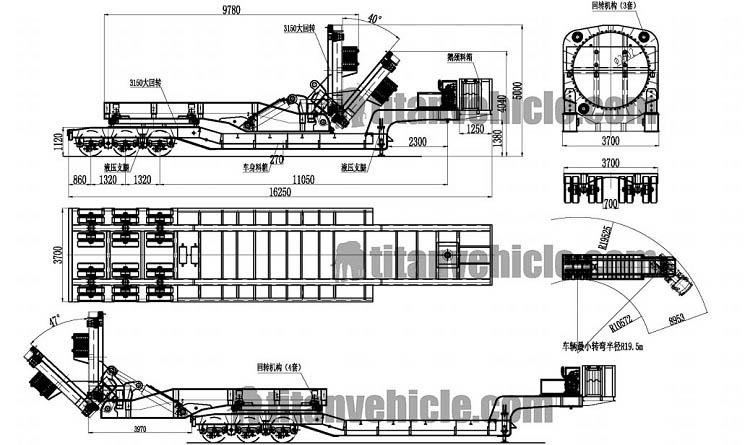

3 line 6 axle wind turbine blade transport trailer, transporting large blades of model 121-156, length 59.5-76 meters, maximum 80 meters, weight within 13-23.5 tons, the center of gravity within 23.5 meters.
The 4 line 8 axle large Blades wind turbine is very popular in Vietnam and other countries. transporting 121-155 model blades. This wind turbine blade transport trailer is suitable for rugged mountain roads and sharp bends.
The latest version of large wind turbine blades, transport larger and heavier blades.transport 121-156 model blades.

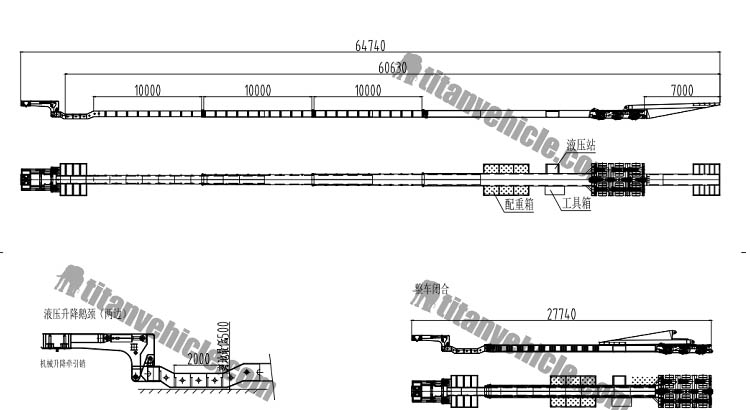

3 axle 60m Hydraulic windmill transport telescopic trailer
Offshore wind turbine blade transport trailer, suitable for long-distance transportation of offshore wind turbine blades between 76-90 meters, blade tonnage 25-45 tons, offshore blades are relatively high and heavier, requiring hydraulic axis structure, single beam drawing, rear flap structure, The vehicle needs to turn and lift, features: large turning angle, strong bearing capacity of the rear pivot, low cargo platform height.

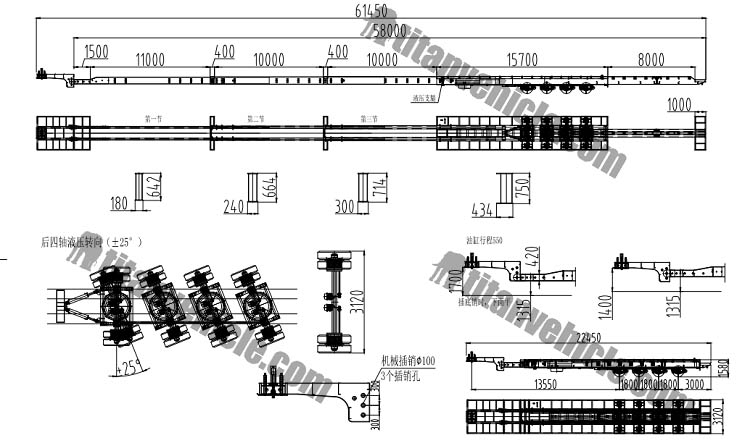

4 axle 58m telescopic windmill blade trailer
Hydraulic lift 4 axle telescopic trailer hydraulic steering large windmill blade transport, 58 meters, transport blades within 80 meters on land (long-distance transport).

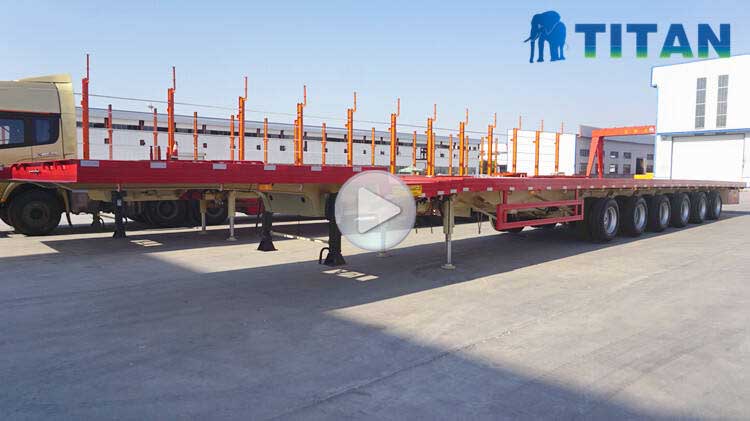

6 axle telescopic trailer for windmill blade transport
The telescopic trailer for wind turbine blade transport trailer could have three and four telescoping beams, and it could reach Max.62m length. the maximum can transport windmill blades within 80 meters.
This transport method generally uses ordinary extendable telescopic trailer to transport wind blades. The characteristics of this vehicle are that it can be extended and retracted to accommodate blades of different lengths.
wind turbine on a trailer - extendable flatbed trailer for sale
This transportation method generally uses a special wind turbine trailer transportation vehicle with blade lifting-rotating-hydraulic rear wheel steering. The special vehicle can lift the blades through hydraulic control and rotate itself 360 degrees during driving, avoiding various obstacles during transportation (mountain slopes, trees, houses, bridges, tunnels, etc.), which can greatly reduce the blades. The total length of the transport vehicle body can improve the curve passing performance.
wind turbine trailer wind turbine blade transport trailer vehicles for sale
The blade rotates flexibly, and the transformation cost is small. The blade sweeping area of the special vehicle blade lifting and transportation method is larger than that of an ordinary flat-bed truck. The blade sweeping area is large, and the area involved in the renovation project in the curve is reduced by about 10 times.
Blades can be transported by lifting, which can better avoid high mountains and cliffs, or house buildings, so about achieve rapid blade transportation. At the same time, this method can also reduce the cost of road reconstruction and house demolition, which can help improve blade transportation efficiency and engineering benefits.
1. High transportation costs. The transportation cost of using special vehicles is higher than that of ordinary flatbeds. For a wind farm with an installed capacity of 50MW, if it is transported by special vehicles, the transportation cost will increase by about 3.5 million yuan.
2. There is a lot of work to clear the height limit. After the blade is lifted, the height is high, and the net height along the line is increased. Compared with ordinary flatbed transportation, it will increase the removal of height-limiting objects (such as cross-road cables, pipes, branches, etc.).
3. Need to increase weight. Since the blade's center of gravity increases after the blade is lifted, it is not conducive to stable transportation. It is necessary to place a weight on the front of the vehicle and avoid windy weather transportation.
In the actual process of fan blade transportation, it is necessary to choose a suitable fan blade transportation method according to the transportation route and the surrounding environment, comprehensively considering the transportation cost and the road transportation condition transformation cost.

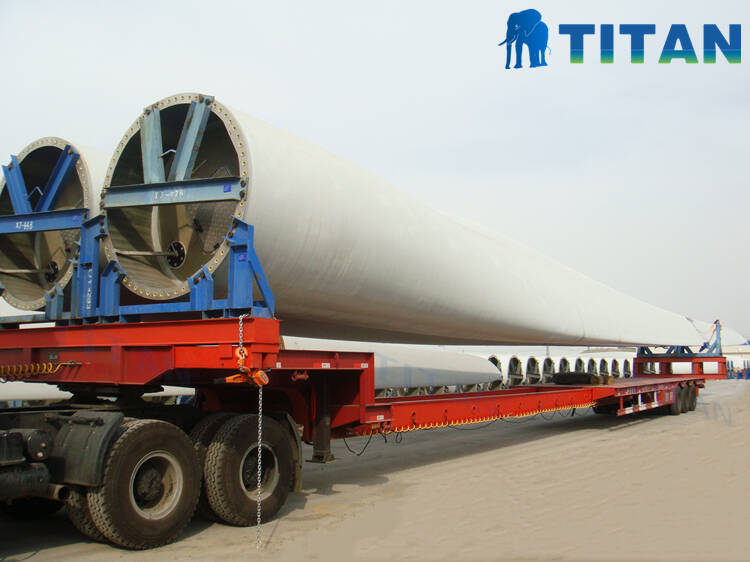

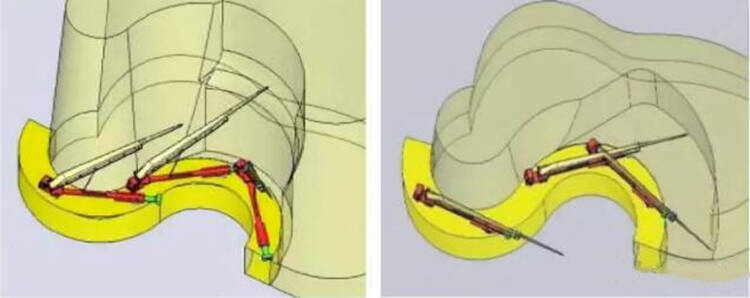

wind turbine blade trailer adaptor VS telescopic extendable trailers
As the blades become larger and longer, the transportation of wind turbine blades is a big problem and a technical problem that requires calculation and planning. What method is used to transport blades safely and economically?
How to transport such a long blade is a difficult problem. From customers, we know that we can use blade lifters wind turbine trailers to transport windmill blades. But the longer the blade, the more difficult it is to transport and the higher the transportation cost. With the development of the highway network system, the use of professional transportation vehicles for cross-regional transportation of blades has become more and more convenient. There are Chinese wind turbines and blades that can be transported thousands of kilometers to countries along the Belt and Road via highways. It is also possible to transport blades by train in some plain areas. There is a video on the Internet that transports more than 30 blades by train at one time, which is spectacular. Transporting blades by sea is a safer and more convenient solution. At present, some large offshore installation vessels can transport more than 18 blades at a time, which can greatly reduce the installation cost of offshore wind power.

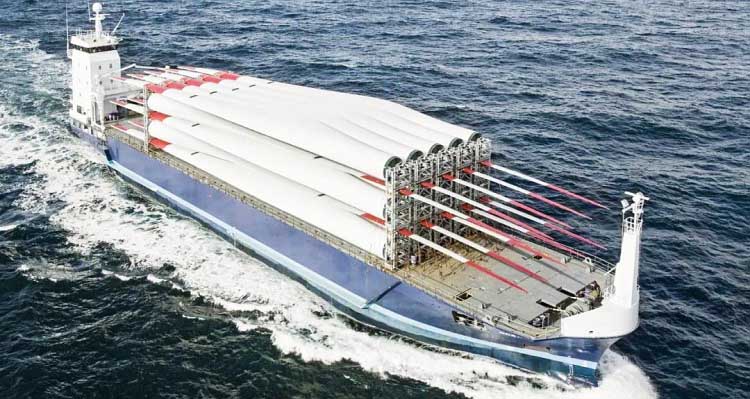

The efficiency of transporting blades by trains and ships is incomparable to ordinary automobile transport. With the development of offshore wind power, blade factories are also built in or near the wind power port, which has great convenience in transportation.

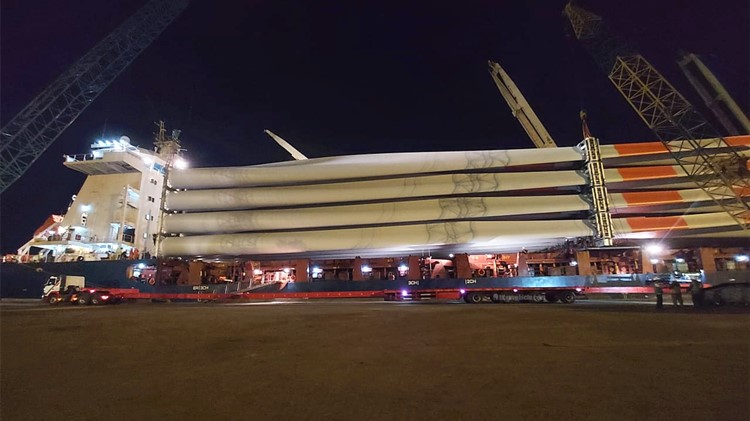

Offshore wind turbine blade transport trailer

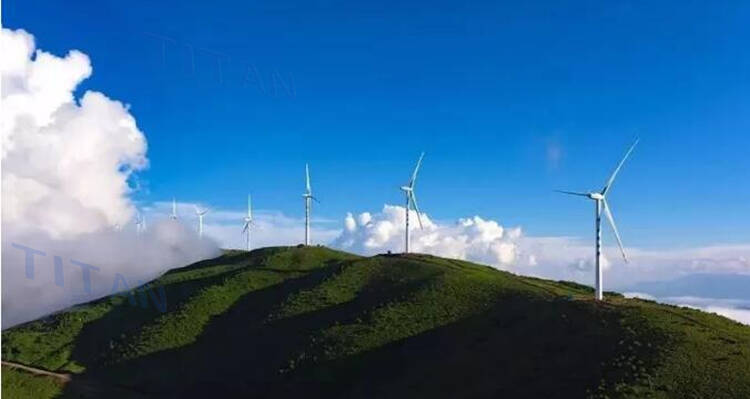

Modern day wind farms are becoming major contributors to the world power supply, serving as proof of the interest and commitment to using alternative energy. But these farms couldn’t be built without the equipment used to transport the turbine components from the manufacturer to the construction site. In the past, trailers used to mobilize the equipment on site lacked the safety, easy-of-use and the hauling capacity required of today’s offerings.
Wind turbine wind turbine trailer is among the most innovative and advanced trailers in China. The blade lifters wind turbine blade trailer is a leading edge, innovative wind turbine blade trailer to satisfy all your wind energy transportation needs. With fewer mechanical connections from the fifth wheel to the steered axle, you can save on height, weight, and maintenance. With its customized steering functionality, you can drive forward and backward. Its automatic centering device, when active above a certain speed, offers you the stability of a fixed axle.

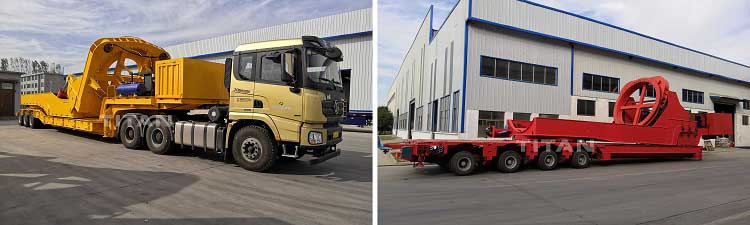

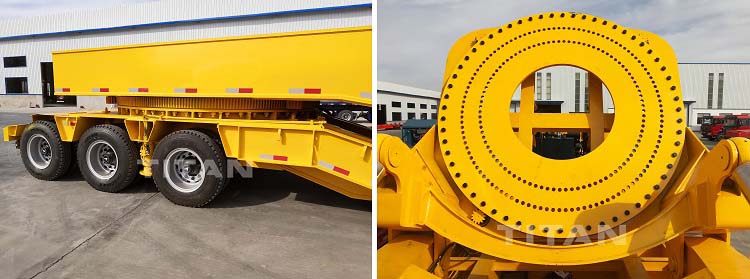

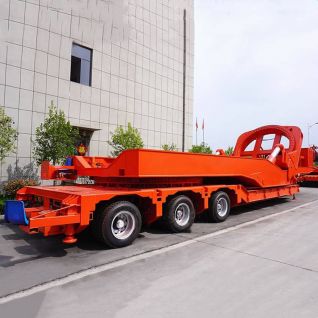

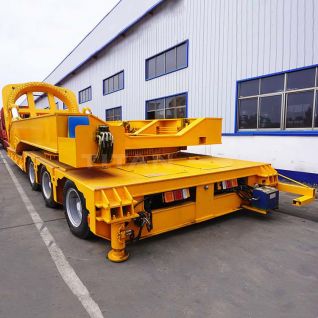

Wind Turbine Blade Transport Adapter Trailer

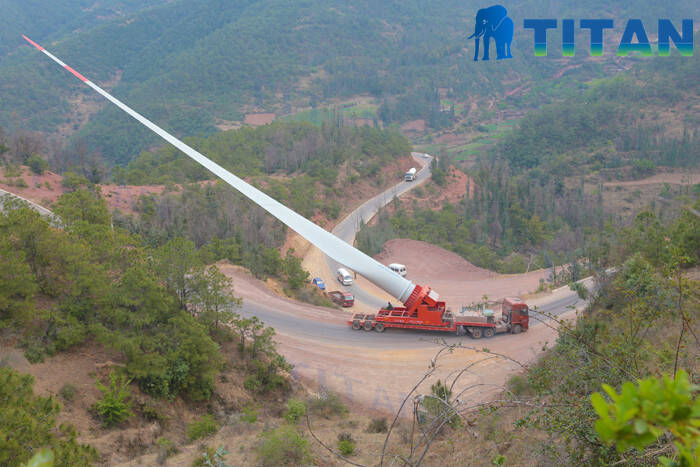

These type of blade lifters wind turbine blade trailer are used to transport turbine blades on mountain roads and curved roads as well. Because of the fact that extendable trailers are too long, when it comes to a mountain road, it is hard to steer hence the need for the special blade trailer. The design is made in such a way that the blade adaptor can lift up and down making it easier for the trailer to steer easily.
This ASM technology is a fully dedicated microprocessor-controlled, electronic over hydraulic steering system which uses a software program to actuate axle turns. Because BladeMaster can effortlessly and continuously drive around tight corners, it is ideal for transporting long and cumbersome windmill blades. As it turns, the truck sends a signal through the kingpin sensor, specifying the radius needed by the rear axles to curve around the corner – which allows for a tighter radius than traditionally made blade trailers. The wind blade trailer steering – independent of speed — gives you the optimal steering angle, in all types of circumstances. You can check the alarms and calibration through a display, via its PC application.

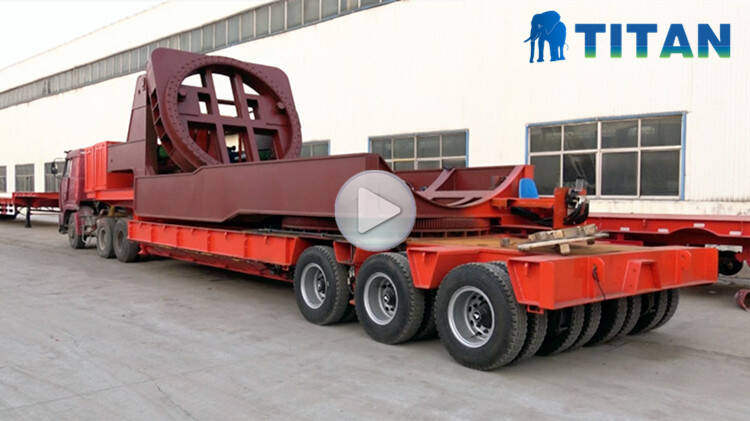

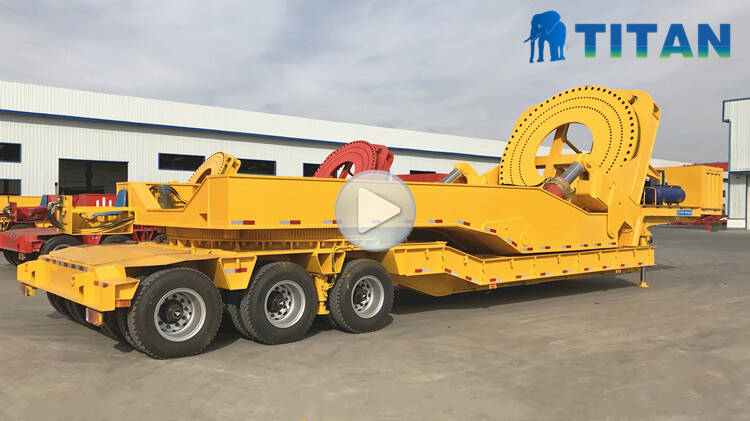

Wind Turbine Blade Transport Trailer Adapter video display

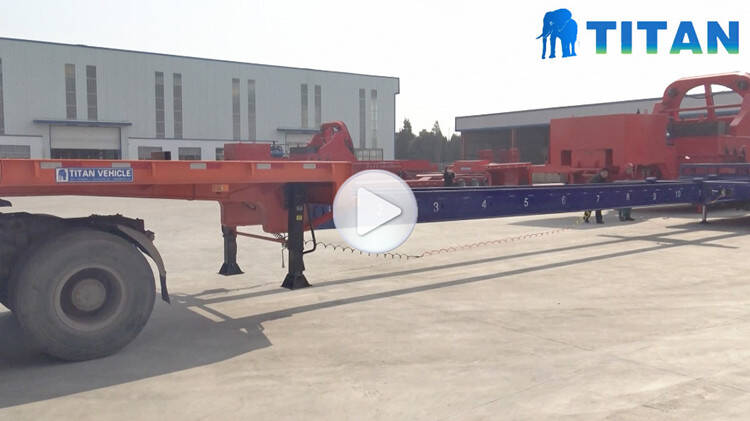

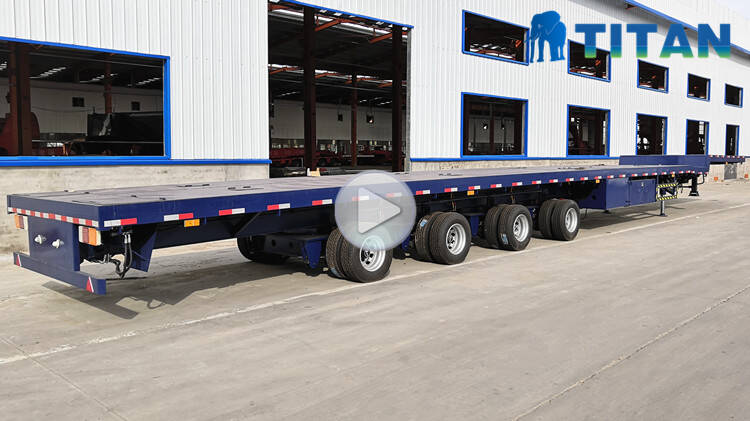

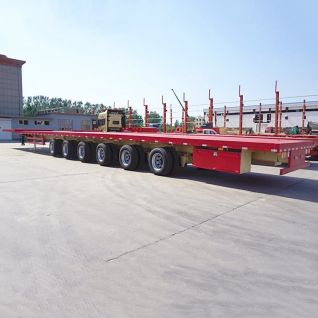

Wind blade transportation extendable trailer
The extendable beam feature is designed to allow for elongation to cater for different transportation needs. Due to the overall length of the blade lifters extendable trailer needed in this section, tough and strong materials with a yield strength of at least 460 MPa is used. This makes sure that the beam doesn’t sag during operations. In this section, the blade lifters windmill trailer can be adjusted to the desired length to take up the task at hand.
The goose-neck provides a connecting point of the blade carrier trailer to the truck. It is designed to lift up and down to meet the different height of the 5th wheel of a truck. When the truck steers, goose-neck can pass the signal, and the blade lifters trailer starts to steer. The steering system includes a steering function for the rear axles to help windmill trailer get through a curved road due to the 62 m length of the trailer.
The blade lifters telescopic trailer for wind turbine blade trailer could have three and four telescoping beams, and it could reach Max.62m length. the maximum can transport windmill blades within 80 meters. At the closed length of the telescopic trailer, it could use as a flatbed trailer.
The telescopic trailer mechanical suspension can accept overload. it could be air suspension and mechanical suspension. the air suspension is the balance ability cause it has automatic lifting distance.
The Telescopic Trailer for Windmill Blade could have three steering modes. One is Automatic steering ( at short length), one is Remote control steering and the last one is the Manual operation steering.

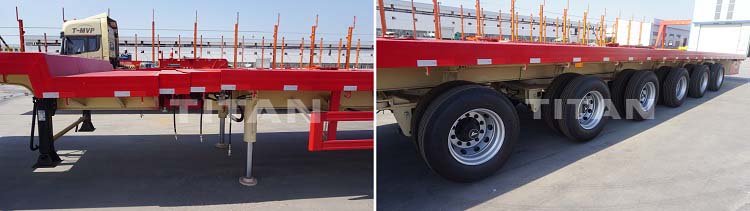

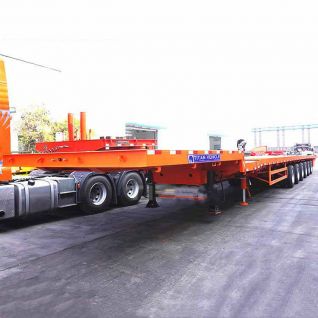

6 axle 62 meters Windmill Blade Extendable Trailer video display
Advantage of Telescopic Trailers:
Reliable and Efficient. Constructed of high yield strength material, telescopic trailers are reliable in terms of safety and general transportation needs.
It’s easy to use. The blade lifters trailer comes in a simple design that is easy to use and operate either hands-on or remotely. Loading and offloading cargo are made safe and simple for operators to manage the operations in an effortless manner.
It can transport other kinds of oversized cargoes, not only the blades and tower. Therefore, the user can put the trailer into many other uses other than for transporting wind turbine blades.
One notable advantage of this blade lifters wind turbine trailers is that it is a better match for different sizes of the tower. Therefore, users are not limited to a specific type and size of the tower.
Structure comprises of wind blade transportation:
A Gooseneck; A steering mechanism; An extendable beam; The tail platform.
There are three steering structure configurations namely: hydraulic bogies, turntable steering and axle steering.

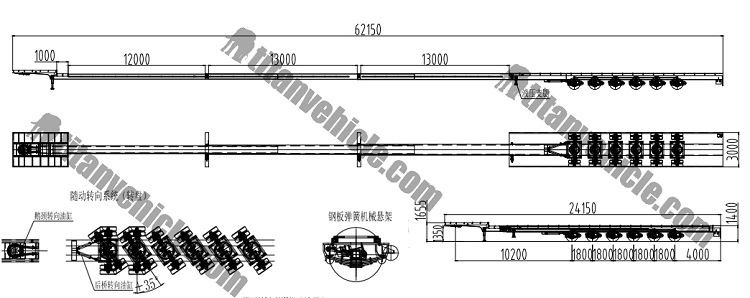

Details of windmill blade trailer for sale

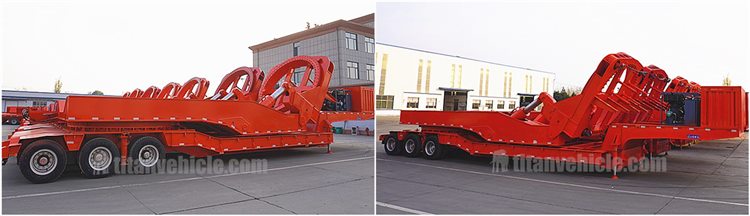

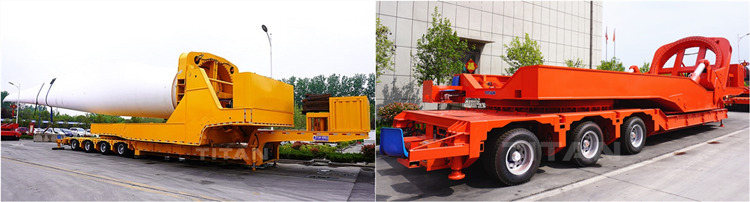

Wind turbine blade trailer
The special blade lifters wind turbine blade transportation trailer can lift the blades through hydraulic control and rotate itself 360 degrees during driving, avoiding various obstacles during transportation (mountain slopes, trees, houses, bridges, tunnels, etc.), which can greatly reduce the blades. The total length of the transport windmill trailer body can improve the curve passing performance.
In this design structure, the turbine blade is fixed on the adapter. What makes this trailer special is that the adaptor is customized for the blade. Although usually made from the best materials with sufficient yield strength, their custom design for taking blades may not make it a fit choice for other types of loads.
That means it will unlikely be used for another function. It is the kind of blade lifters wind blade trailer you need if all you want to do is transport wind turbine blades only.
Wind turbine blade trailer Advantage:
These types of blade carrier trailers are used to transport turbine blades on mountain roads and curved roads as well. Because of the fact that extendable trailers too long, when it comes to a mountain road, it is hard to steer hence the need for the special blade trailer.
Blade adaptor can move the latest mega wind turbine blades. Rotor blades can be picked up, raised up to an angle of almost 60°, swivelled and rotated by 360° around their own axis using this adapter, which is mounted on a self-propelled vehicle or between modular axle lines.
The blade lifters wind turbine trailers design is made in such a way that the blade adaptor can lift up and down making it easier for the blade carrier trailer to steer easily.
Wind Turbine Blade trailer details
Wind turbine blades and wind turbine blade trailer, just like for any other type of trailers must be thoroughly scrutinized before making the final buy decision. After identifying your needs, you should be able to know the kind of trailer you are looking for. However, that is not all that you will always need.
There are some other aspects to look into including the wind turbine blade trailer quality, delivery times, ability to customize and its reliability among others. Need more details of extendable trailer, you can contact us.
Wind Turbine Blade Trailer
Specific Wind turbine Blade Trailer
A specific blade lifters wind turbine blade trailer has a tower adapter to its structure. The tower can be fixed on the two sides of adaptors.
The adaptors can be adjusted to fit the different dimension of the tower. This is what you should go for if your need revolves around transporting windmill towers.
A significant advantage of this trailer is that it is more suitable for towers of different sizes. Therefore, users are not limited to the specific type and size of the tower.
The trailer provides better safety measures. This is very important to the operation and therefore an important factor to consider when buying a trailer.

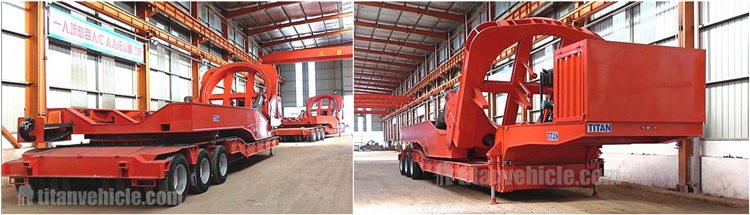

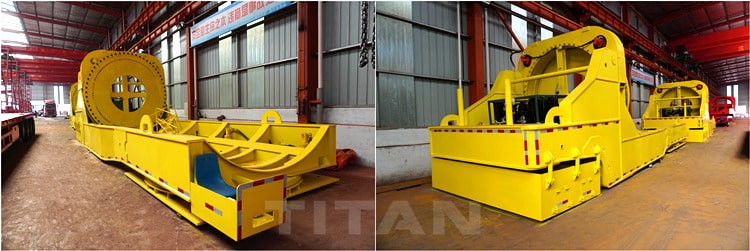

Adapter of Wind Blade Trailer Ready for Shipment
There are many factors to consider when choosing a wind blade trailer supplier. Therefore, the company's reputation depends on its ability to meet certain needs and expectations of wind blade trailer users in the industry.
Here are some key considerations to consider when you choose wind blade trailer:
Quality - wind blade trailer.
This aspect is very important, especially for wind turbine blades and windmill tower/blade trailers, because their length is very large, up to 62 m.
In such a long design, customers expect to find wind blade trailers made of materials with high yield strength. Therefore, the materials used in construction are the key to achieving the required quality.
Generally, it is expected that the blade lifters windmill blade trailer should remain intact after operating under heavy loads.
Wind Turbine Blade Transport Trailer
Delivery time - wind blade trailer.
In the case of empty and during loading, please read the blade lifters trailer manual carefully to understand its travel speed specifications.
They usually provide recommended speeds for each blade lifters wind blade trailer in different situations, so they should guide you in understanding whether the wind blade trailer is suitable for your operation.
Delivery time is the key, especially when handling many goods. In this case, the driving speed will provide you with everything.
Customization capabilities - wind blade trailer.
How can your blade lifters wind blade trailer fully meet your load requirements? View options that can be freely customized according to your transportation needs.
In this way, you will have enough space to complete a large number of tasks without having to use different types of trailers to withstand different loads, which can be an expensive thing.
Reliability - wind balde trailer.
Moving very large cargo (such as wind turbine blades and towers) is a difficult task. Therefore, you need a wind blade trailer that can work for a long time without breaking down or requiring repair.
Sometimes, the distance from the manufacturing plant to the installation site is very long, so a trailer that can run without trouble for a long time is needed.
Check the trailer’s operational guarantees and performance characteristics to determine its reliability.
Extendable trailer for wind turbine blades transport
7-1 Classification of wind farm area - wind turbine blade trailer
The general classification principle of the field category of the wind farm is: the plain area refers to the flat terrain without obvious undulations. The area where the natural slope of the ground is less than or equal to 3"; the hilly area refers to the area where the ground is undulating and gentle, and the natural slope is greater than 3. to less than or equal to 200. The relative height difference is within 200m; the hilly area refers to the area Areas where the natural slope of the ground is greater than 200 and the relative height difference is greater than 200m. Mountain wind farms mainly refer to the latter two types of wind farms.
4 Line 8 Axle Wind Blade Trailer & 3 Line 6 Axle Wind Blade Trailer
7-2 The mode and condition of blade transportation - wind turbine blade trailer
Under the current economic and technological conditions of our country, the development and construction of wind farms in the southern mountains. There are three possible blade transportation methods: road transportation, ropeway transportation and helicopter transportation. Different stand-alone capacity and different equipment manufacturers have different requirements for transportation, but they are not much different. The main parameters of the large-scale transportation of the wind farm: the diameter of the wind wheel is 110m, the length of the blade is 53.8m, the weight of a single blade is 13.46t, and the length of the blade fulcrum is 30m. The main conditions to be met by various modes of transportation are described below.
7-2.1 Conditions required for road transportation - wind turbine blade trailer
1) Pavement bearing capacity and width requirements. The road load capacity should not be less than 15 t/m per axle, and the axle load limit of the bridge passing through is greater than l0t. The load limit of the bridge is greater than 150t
2) The pavement width of the straight road is not less than 5m. The width of the road shoulder is not less than 1m, and the width of the road surface at the general curve is not less than 15m
3) The turning inner diameter of flatbed trucks shall be at least 50m, and the turning inner diameter of special vehicles shall be at least 30m.
4) The maximum longitudinal slope of the road is 9%, and the maximum longitudinal slope of the road with a curvature of more than 45° does not exceed 5%.
7-2.2 Conditions required for ropeway transportation- wind turbine blade trailer
1) Ropeway height difference angle requirements: the height difference angle is generally below 45°, and the maximum is not more than 60°
2) Both ends of the ropeway need to choose a flat and open site as the unloading platform to meet the requirements of stacking blades and vehicle rotation. The area of ??the site is generally not less than 3,000 square meters, and the length of the short side is not less than 40m.
3) Span requirements for ropeway transportation. The span of aerial ropeway should be 200-500m
7-2.3 Conditions required for helicopter transportation - wind turbine blade trailer
1) Carrying capacity requirements: the carrying capacity is not less than 20t.
2) The blade stacking site also needs to set up an aircraft parking area. The area of?the site is generally not less than 4000 square meters, and the length of the short side is not less than 50 m
3) Better weather and meteorological factors, such as low wind speed, no rain, no fog, and high visibility (visibility is not less than 2 km)
7-3 Analysis and comparison of transportation methods - wind turbine blade trailer
All three modes of transportation need to build roads, which are not only the transportation of other equipment in the wind farm. It is also the maintenance road for the operation of the entire wind farm after it is put into production, but the turning radius of the road is different when there are no blade transportation requirements.
7-3.1 Road transportation - wind turbine blade trailer
The total length of the transportation and maintenance roads in the project site is about 70 km, of which there are 35 inside bends, and the total length of the road is 0.9 km widened within 50m. The construction cost of the ordinary section of the road is about 600,000 yuan/km, the construction cost of the ordinary section is about 42 million yuan, and the cost of partly widening is about 6 million yuan; therefore, the total cost of road construction invested by the project adopts road transportation for blade transportation. Approximately 48 million yuan: The scheme of using road transport blades. The construction period is approximately 18 months.
7-3.2 Ropeway transportation - wind turbine blade trailer
Ropeway transportation is a way of combining road transportation to solve the blade transport in the local area at the end.
According to the site topography and road layout, there are 40 sections of ropeways and 80 unloading platforms. The total length of the ropeways is about 20 km. It is estimated based on the overhead ropeway investment of about 1.5 million yuan per kilometer. About 30 million yuan will be invested. Including the construction cost of 42 million yuan for ordinary roads, the total construction investment is about 72 million yuan. The plan of using ropeway to assist the transportation of blades, the construction period is about 17 months
7-3.3 Helicopter transportation - wind turbine blade trailer
The project invited several merchants to the site to conduct surveys and inquire about prices. The cost of using helicopters for transportation of the wind farm blades was about 38.2 million yuan, plus ordinary road construction costs of 42 million yuan, so helicopters were used to assist the transportation of blades. The total investment of the program is about 80.2 million yuan. Although the speed of helicopter transportation is faster, it has higher requirements on weather and meteorology. Therefore, the construction period is about 16 months
7-3.4 Scheme comparison - wind turbine blade trailer

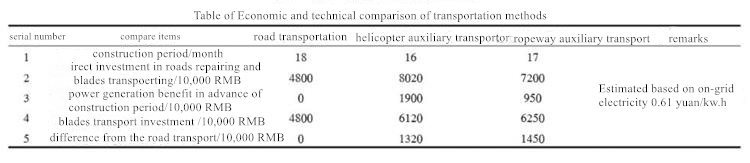

The economic and technical comparison of the three blade transportation methods is shown in the table!
It can be seen from the table that the road transport blade solution is the most economical, so the road transport method is adopted for the blade transport of this project. Many blade transports of mountain wind farms have been built or are under construction. Both use road transportation, which also confirms this conclusion.
7-4 Conclusion
Under the current technical and economic conditions, road transportation is still the mode of blade transportation for mountain wind farms. However, with the advancement of science and technology and the full development and utilization of wind energy resources in steep mountains in the future, in a certain period in the future, it is really difficult to build the roads in the wind farms for the transportation of some units of the relatively large mountain wind farms. Auxiliary transportation methods are also possible. This article analyzes and discusses the actual project blade transportation mode. It is hoped to achieve the effect of attracting new ideas and provide a reference for the development and construction of mountain wind farms and the improvement of wind resource utilization in specific sites.
