3 axle detachable gooseneck lowboy trailer can be used for loading and transporting heavy machinery and equipment.
TITAN lowboy trailer heavy equipment for transport excavator and construction equipment, large machinery transportation.
The hydraulic detachable gooseneck can use the lifting cylinder installed on the vehicle to support the front part of the lowboy trailer heavy equipment body on the ground. After the tractor is separated from the saddle of the hydraulic detachable gooseneck, the tractor is driven away from the lowboy trailer heavy equipment. When the tractor leaves, the front part of the detachable gooseneck lowboy trailer can be placed on the ground through the lifting cylinder, and the lifting cylinder can be continuously manipulated to convert the gooseneck platform into a hydraulic detachable gooseneck ladder, thereby solving the problem of the large rear part of the detachable gooseneck lowboy trailer.

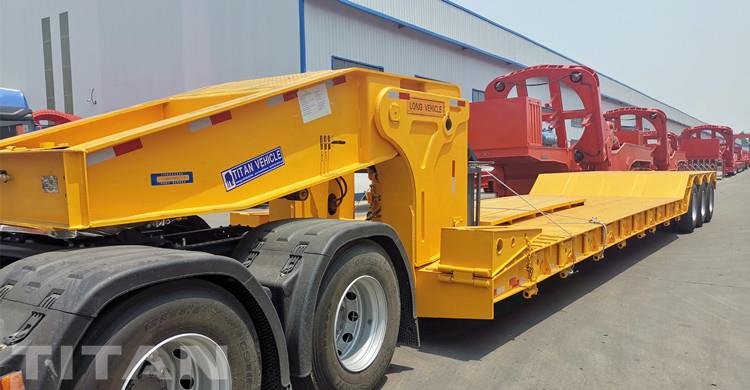

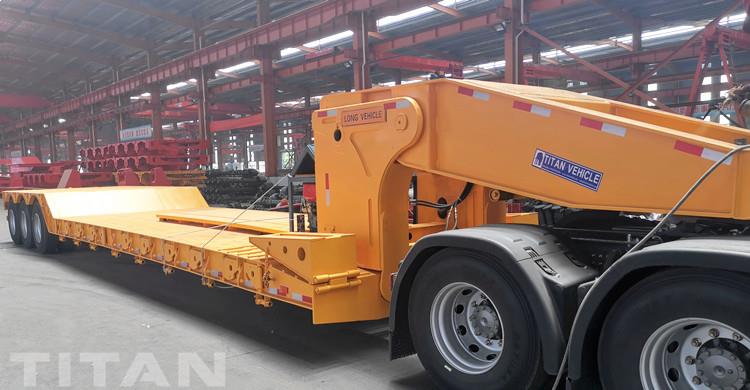

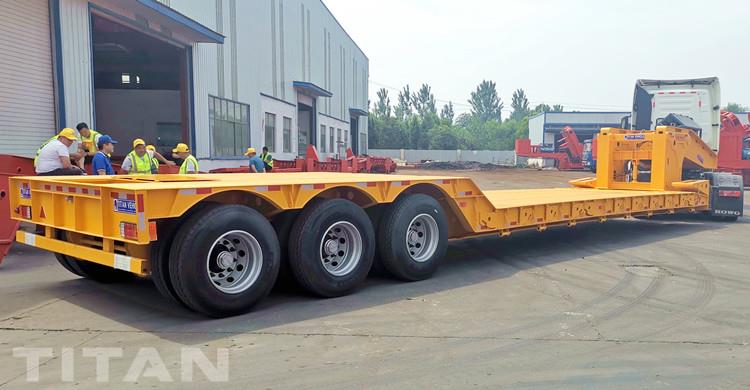

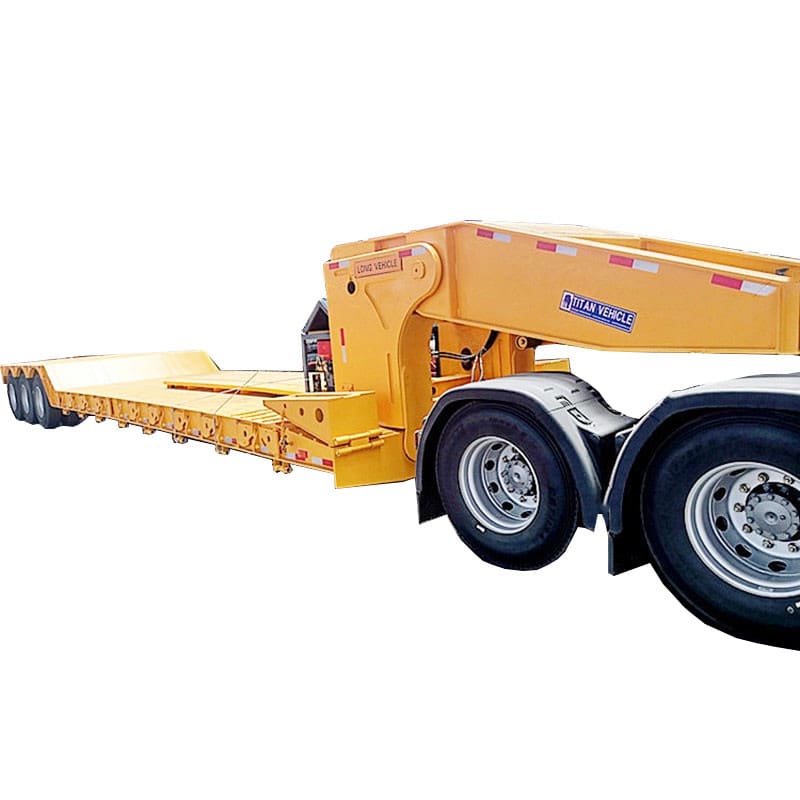

Hydraulic Detachable Gooseneck Lowboy Trailer Heavy Equipment
Hydraulic Detachable Gooseneck Lowboy Trailer Heavy Equipment

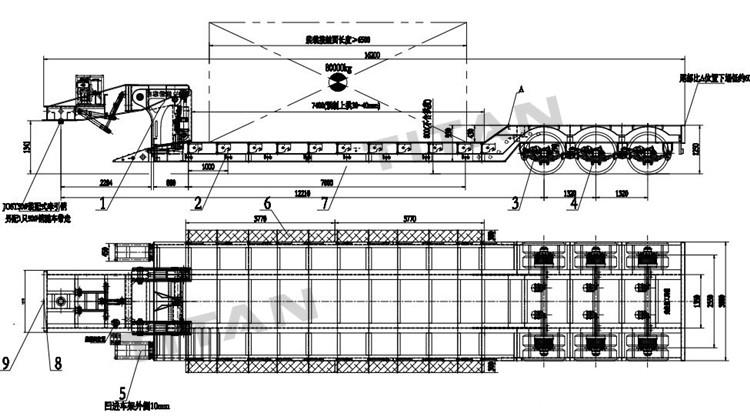

Dimension: 15800mm x 3000mm x 2500mm
Loading capacity(T): 50-80T
Axle: 3 axle
Tire: 12 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

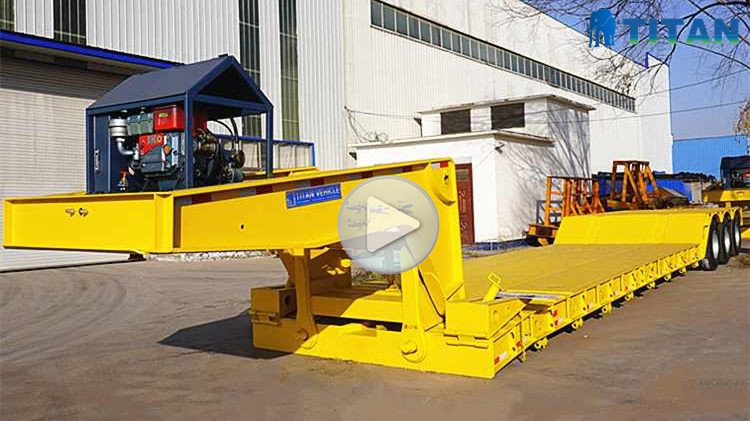

Through the video, you can know different types of lowboy trailer heavy equipment , 3 axle detachable gooseneck lowboy trailer for sale , hydraulic detachable gooseneck, etc.
Welcome to leave your inquiry!
We will provide more details, price, catalog, drawing, videos for you!
