Specification:

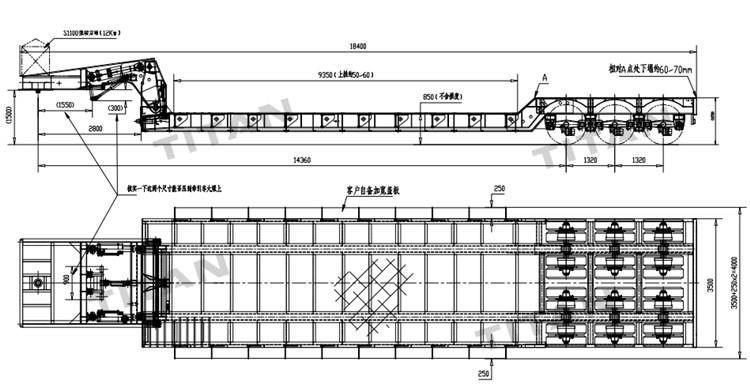

Dimension: 18400mm x 3000mm x 3400mm

Loading capacity(T): 150T

Axle: 3 line 6 axle

Tire: 24 units, 12R22.5

Suspension: Mechanical suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Valve: WABCO valve

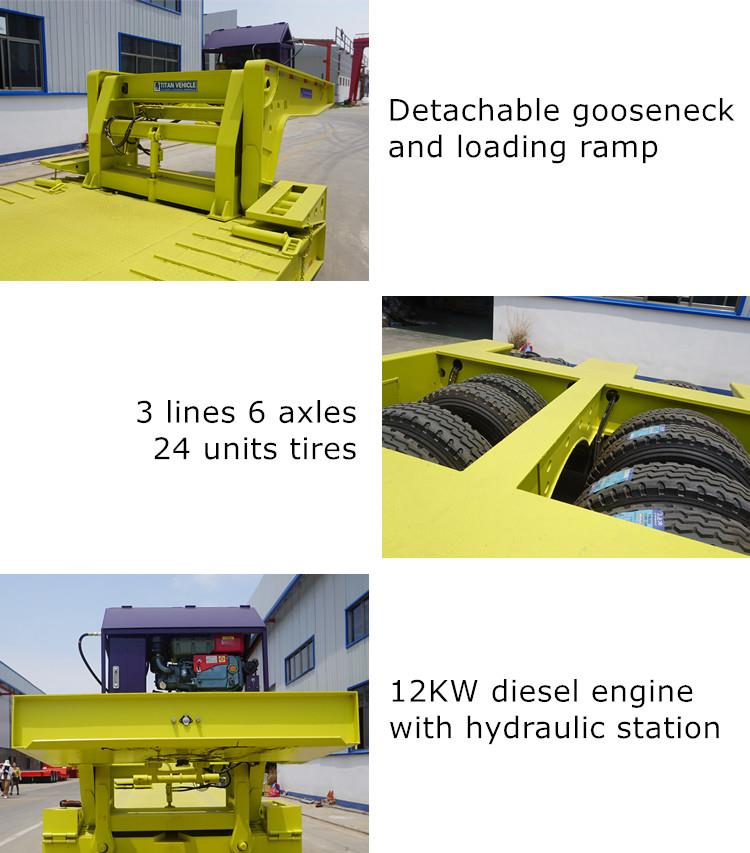

Advantages of removable gooseneck:

1. The main beam height is 550-580mm. That durable and stronger construction ensure the loading capacity.

2. The removable gooseneck trailer ramps are made by high strength steel, with high loading capacity, 3 line 6 axle removable gooseneck trailer will not happen to the deformation when carrying heavy equipment.

3. 250mm side swing bracket on both sides to increase the overall width of the removable gooseneck trailer.
