10 Axle 32 Meters Extendable Trailer for Wind Tower Transport in Vietnam
As our regular customers, Vietnamese customers are very grateful to TITAN for his help. This is the third time he has cooperated with TITAN. The customer paid the full price and purchased the 10 axle extendable wind tower transport trailer.

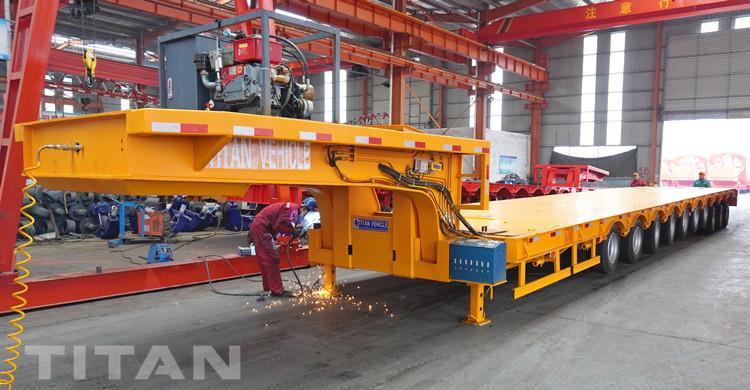

The customer bought 10 axle extendable trailer for wind tower transport again for wind power engineering project. Below is a picture of the upcoming shipment.
10 Axle 32 Meters Extendable Trailer for Wind Tower Transport in Vietnam
Extendable trailer can freely adjust the length of the semi-trailer according to the length of the cargo, so as to meet the transportation needs of different goods.
With the rapid development of the global transportation industry, semi-trailers have also begun to diversify into a variety of categories. Ordinary semi-trailers have limited capabilities. Therefore, the bosses of transportation companies increasingly need a extendable trailer that can load very long cargoes, such as long cement pipes, steel pipes, wood, wind blades for power generation, etc.
Reliable and Efficient. Constructed of high yield strength material, extendable trailers are reliable in terms of safety and general transportation needs.
It’s easy to use. The extendable wind tower trailer comes in a simple design that is easy to use and operate either hands-on or remotely. Loading and offloading cargo are made safe and simple for operators to manage the operations in an effortless manner.
It can transport other kinds of oversized cargoes, not only the blades and tower. Therefore, the user can put the extendable container chassis into many other uses other than for transporting wind tower.

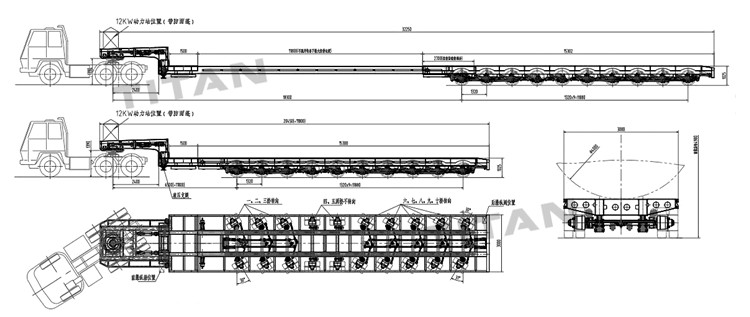

Drawing of 10 Axle 32 Meters Extendable Trailer for Wind Tower Transport
1. Frame of Extendable Trailer
The 32 meters extendable trailer frame construction features the main beam, half plates to the left side and the right side, and a transverse device. The half plates to the left and right sides are linked to the main beam by means of the transverse device. The hydraulic gooseneck is attached to the frame head and a hydraulic ladder fitted at the rear section.
2. The System's Power Unit

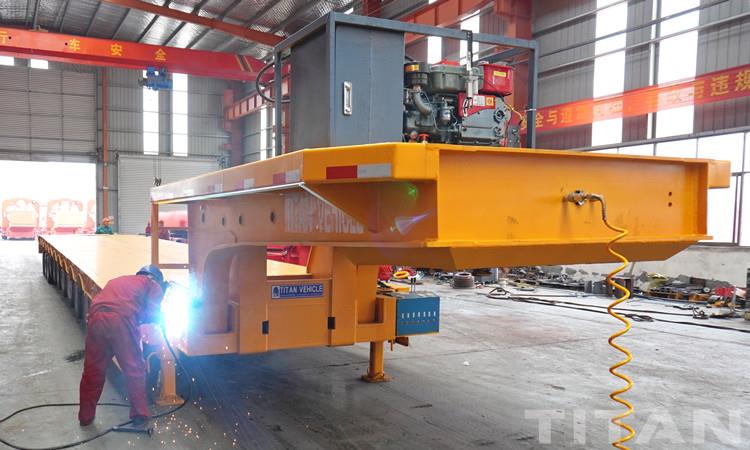

The extendable wind tower trailer power unit is made up of a small diesel engine, which is the main prime mover. Other components include a hydraulic oil tank, control lines, and pipelines, hydraulic pump. The unit offers a hydraulic source for the trailer’s hydraulic system.

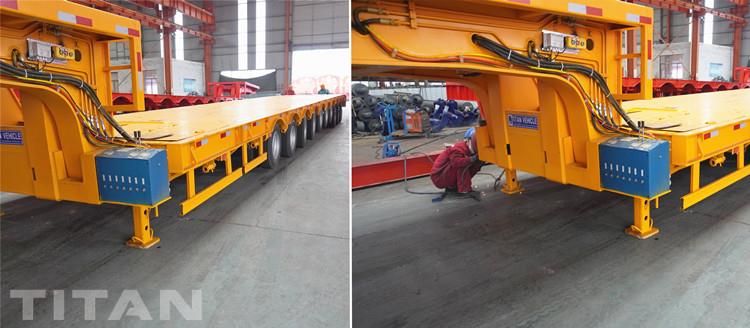

10 Axle 32 Meters Extendable Trailer for Wind Tower Transport in Vietnam
3. The Gooseneck Feature
The assembly and connection at the gooseneck point are usually made to the tractor saddle via the turntable, the wedge, and the traction pin. The 10 axle extendable trailer' gooseneck feature is a hydraulic part that is usually adjusted through a telescopic expansion of the hydraulic cylinder.
As the tractor rotates, the steering cylinder gets pushed and transmitted to the steering bridge of the extendable trailer via the hydraulic circuit. The steering mechanism towing the extendable trailer is usually attached to the gooseneck.
4. The Hydraulic System
The extendable trailer for sale basic components of the hydraulic system are hydraulic valve blocks, joints, and pipes. The entire system comes with a hydraulic source by means of a power unit. There is also a safety valve installed in the circuit.
The extendable trailer has a hydraulic system that comprises control circuits like the suspension lifting, gooseneck lifting, synchronous steering, lateral adjustment, and in lifting the ladder.

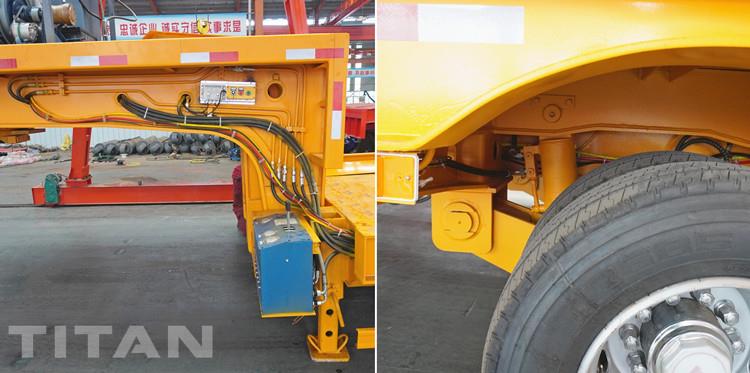

Details of 10 Axle Extendable Trailer for Wind Tower Transport
5. The Steering System
The steering system of an extendable trailer comprises a wheel steering mechanism, a gooseneck steering mechanism, and a matching hydraulic synchronous control circuit.
The gooseneck steering mechanism makes use of the tractor’s rotation in relation to the trailer in order to contract and expand the steering cylinder in a synchronous manner in relation to the wheelset steering mechanism.
6. The Braking System
To further enhance swift operations with the extendable trailer for wind tower transport, a braking system is provided. This includes a service brake, a dual-line automobile brake system, and a parking brake. An emergency relay valve, air reservoir, double-brake chamber, and a number of specifications for the components connecting to the pipeline.
The supply and control lines are set separately. The most significant components include a connector attached to the tractor.
Here is the Extendable Windmill Blade Trailer transportation details display video. This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
