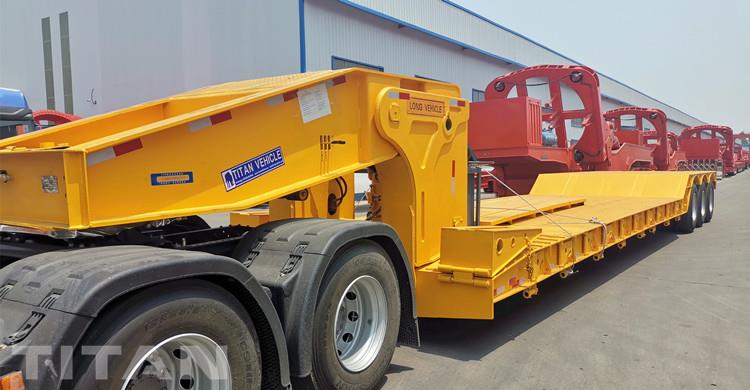

3 Axle 100 Ton Detachable Gooseneck Trailer for Sale in Zambia
A customer from Zambia customized a 3 axle 100 ton detachable gooseneck trailer. This customer searched for detachable gooseneck trailer products on Google, clicked into our website many times, downloaded the quotation form on the website and left his email address.

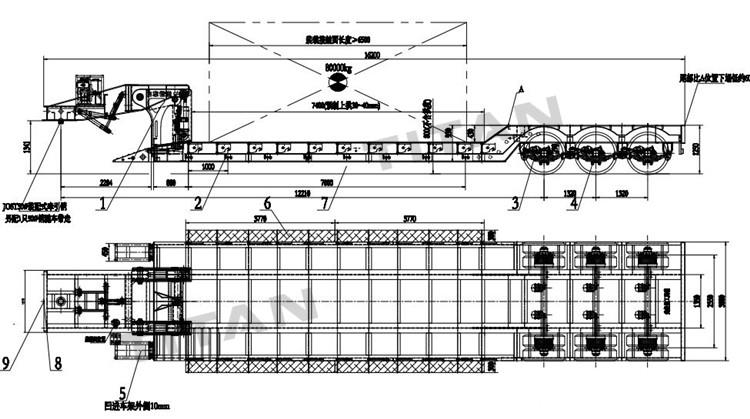

Then our sales contacted the customer, and the customer said they wanted a heavy detachable gooseneck trailer. According to the customer’s request, the sales sent to the customer the drawing and details of the 3 axle detachable gooseneck trailer. After the customer determined the size and other details of the detachable gooseneck trailer, the factory completed the production of the trailer within the specified time. The style is as shown in the text, and it will be shipped soon.

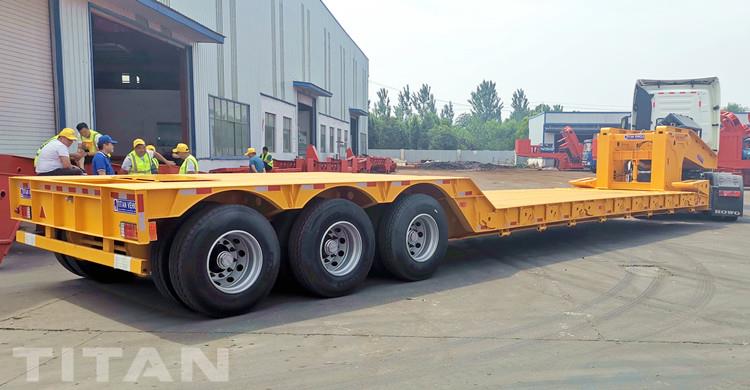

3 Axle 100 Ton Detachable Gooseneck Trailer for Sale in Factory
100 ton detachable gooseneck trailer trucks are also very extensive, suitable for the transportation of various mechanical equipment, large objects, road construction equipment, large tanks, power station equipment and various steel materials. The frame is stepped, and the longitudinal beam section is I-shaped, which has the characteristics of high rigidity and high strength.

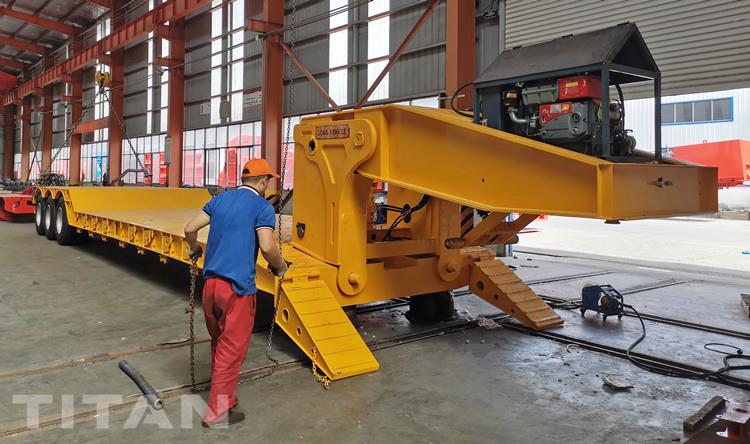

The 3 axle detachable gooseneck trailer can use the lifting cylinder installed on the vehicle to support the front part of the semi trailer body on the ground. After the tractor is separated from the saddle of the semi trailer, the tractor is driven away from the semi trailer. When the tractor leaves, the front part of the semi trailer can be placed on the ground through the lifting cylinder, and the lifting cylinder can be continuously manipulated to convert the gooseneck platform into a semi trailer ladder, thereby solving the problem of the large rear part of the detachable gooseneck trailer.

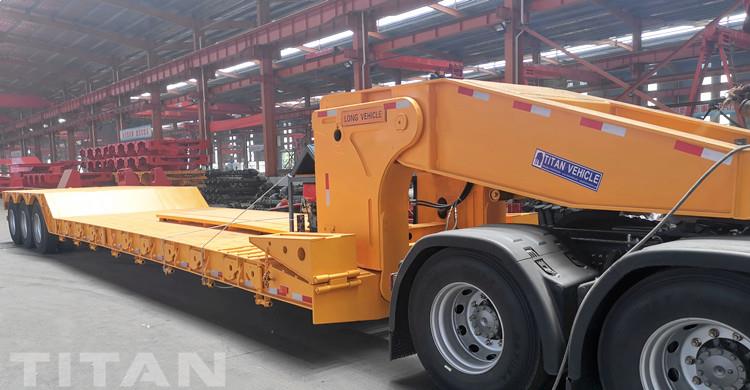

3 Axle 100 Ton Detachable Gooseneck Trailer for Sale in Zambia
When preparing to remove the gooseneck, you must first link the towing pin with the towing saddle. There are many types of detachable gooseneck trailers for sale. Most split gooseneck operating principles are the same.
1. Remove the positioning pin and the air pipe and wire connection.
2. As the gooseneck height decreases, the bottom angle of the front end of the 100 ton detachable gooseneck trailer lowers to the ground and rests on the ground. Once all the linkages have been safely removed, lower the cargo platform.
3. Drive the gooseneck with the truck and drive the tractor far enough away.
4. After driving off the truck, you can now load comfortably from the front of the detachable lowboy trailer platform.
3 Axle 100 Ton Detachable Gooseneck Trailer for Sale in Zambia
1. Strong carrying capacity
TITAN 3 axle detachable gooseneck trailer main beam of TITAN is made of HG60 high-strength structural steel. The yield strength of HG60 steel is ≥ 620MPa, which is more durable and stronger than ordinary steel. Its bearing capacity is 5 times of that of Q345 steel trailer. TITAN mechanical detach gooseneck trailer for sale adopts reinforced the gooseneck and upper and lower plate by double layer.
2. Low center of gravity and good stability
Due to the low ground clearance and low longitudinal beam height of detachable gooseneck trailers for sale, the load-bearing surface is 300-400mm lower than that of the normal concave-center removable gooseneck trailer for sale, thereby effectively reducing the height of the center of gravity of the loaded goods and improving the stability during transportation.
TITAN 3 axle detachable gooseneck trailer for sale bottom plate, Other suppliers usually use 3 or 4 mm bottom plate, But TITAN mechanical detachable trailer adopt 5 mm thick bottom plate, It’s more durable and won’t be deformed.
3. The effective length of the cargo bed is long
Because this type of model eliminates the rear ladder, the bearing surface can be lengthened, and because the construction machinery does not go from the rear, the slope angle in front of the bridge can be appropriately increased, so that the bearing surface can be lengthened. The length of the low flat cargo table with a ladder at the end is longer, which can effectively load more loads, indirectly improve the loading efficiency, and create greater benefits for users.
You can download video, you can learn about different types of side wall semi trailers(like low bed gooseneck trailer , 60ton/80ton/100ton/120ton/150ton low bed gooseneck semi trailer , 80ton 3 axle low bed gooseneck trailer for sale). And the process, testing, packaging and customer feedback, etc.
This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, welcome to leave a message in the board below
