3 Axle 100 Ton Removable Gooseneck Trailer for Sale In Nicaragua
Nicaraguan customers came to TITAN to consult about the business of Detachable Gooseneck Trailer through a friend's introduction. Sales manager Annie introduced the 3 axle removable gooseneck trailer in detail and sent a detailed quotation and various detailed pictures and videos to the customer to help customers understand TITAN's tri axle removable gooseneck trailer more systematically and quickly.

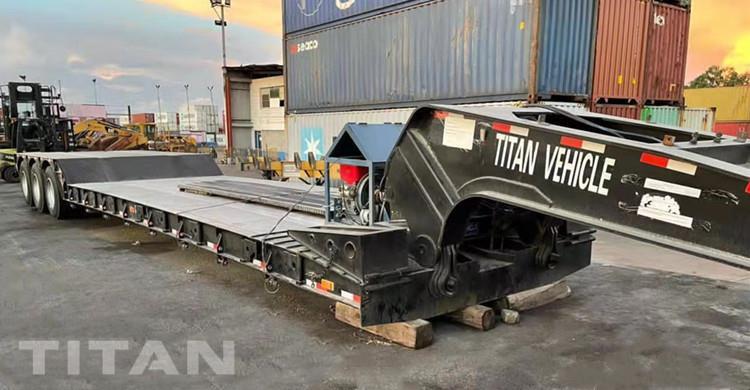

After a series of conversations, the customer finally chose TITAN among the 5 suppliers. Below is a picture of received the tri axle 100 ton removable gooseneck trailer.
Lowboy gooseneck trailers, better known by their English name “lowboy,” are distinctive elements for the transport of containers, equipment and heavy machinery Thanks to a series of characteristics that make them unique.
The vehicles are available in configurations from 2 to 8 axles, which can be lifted or swiveled, controlled automatically depending on the angle of the fifth wheel and manually using an independent wired or radio remote control. Especially for the needs of transporting various types of wheeled vehicles, passenger cars, vans, trailers, agricultural machines.
Thanks to the hydraulic adjustment of the extension and tilt of horizontal platforms, the length of the set and the increase in the loading area of the rear load drawer, this set can be quickly adapted to the type of transported load.
3 Axle 100 Ton Removable Gooseneck Trailer for Sale In Nicaragua

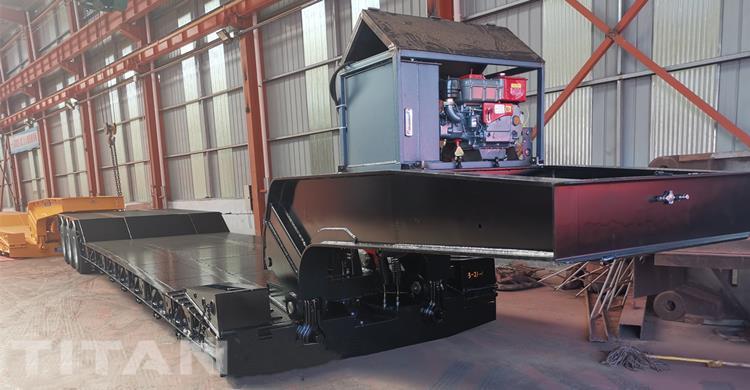

The maximum length of the collection is 18.6 m. The loading tread is covered with perforated sheets, which ensures the possibility of securing the amount in every place and gives proper anti-slip properties. Thanks to the use of a separate hydraulic aggregate mounted on the semi-trailer, the need for a semi-trailer tractor with a hydraulic outlet is eliminated, which makes the operation of the lowboy gooseneck trailer effortless.
The gooseneck part is composed of a traction pin, a lifting hydraulic cylinder, a pin shaft connected with the cargo platform, an eccentric block for fixing the position of the gooseneck, and a gooseneck. The gooseneck part is connected to the cargo platform by articulation, and a pair of lifting hydraulic cylinders are installed between the gooseneck and the cargo platform, which are driven by the hydraulic cylinder to realize the raising and lowering of the cargo platform.
After the cargo platform is raised or lowered, the position of the gooseneck and the cargo platform is fixed by an eccentric device. The eccentric device is welded by 16 Mn steel plate and steel pipe. It is installed in the hollow part of the gooseneck web and is connected to the gooseneck through a pin.
The eccentric device has 2 plane positions through which it is in contact with the upper surface of the cargo platform. The lower position is the lowest position of the 100 ton removable gooseneck trailer, that is, the cargo platform is in contact with the ground; when the cargo platform is raised, under the action of gravity, the right plane Turning to the bottom, the oil pressure can be unloaded at this time, and the load is completely carried by the eccentric device. This position corresponds to the highest cargo platform.

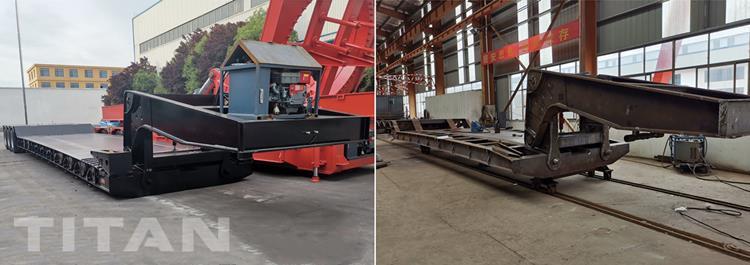

3 Axle 100 Ton Removable Gooseneck Trailer for Sale In Nicaragua
The gooseneck part is composed of a traction pin, a lifting hydraulic cylinder, a pin shaft connected with the cargo platform, an eccentric block for fixing the position of the gooseneck, and a gooseneck. The gooseneck part is connected to the cargo platform by articulation, and a pair of lifting hydraulic cylinders are installed between the gooseneck and the cargo platform, which are driven by the hydraulic cylinder to realize the raising and lowering of the cargo platform. After the cargo platform is raised or lowered, the position of the gooseneck and the cargo platform is fixed by an eccentric device.
The eccentric device is welded by 16 Mn steel plate and steel pipe. It is installed in the hollow part of the gooseneck web and is connected to the gooseneck through a pin. The eccentric device has 2 plane positions through which it is in contact with the upper surface of the cargo platform.
The lower position is the lowest position of the tri axle removable gooseneck trailer price, that is, the cargo platform is in contact with the ground; when the cargo platform is raised, under the action of gravity, the right plane Turning to the bottom, the oil pressure can be unloaded at this time, and the load is completely carried by the eccentric device. This position corresponds to the highest cargo platform.
The cargo platform has the function of lifting. The lifting of the front part is realized by controlling the gooseneck part, and the lifting of the rear part is realized by the rear module. In the design process of the trailer, because the gooseneck is responsible for traction,

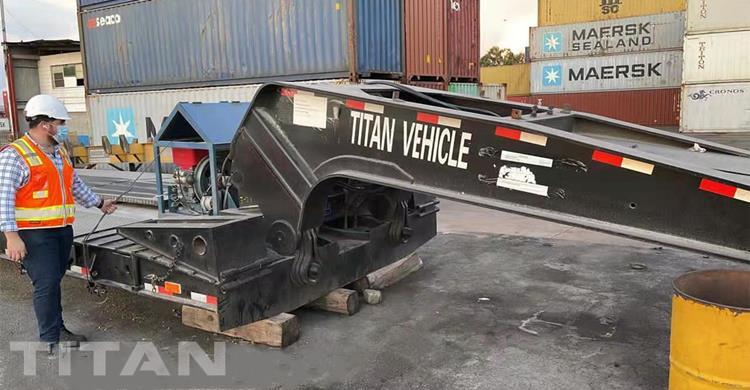

3 Axle 100 Ton Removable Gooseneck Trailer for Sale In Nicaragua
With multiple functions such as lifting and connecting, how to achieve the above functions and meet the requirements of strength and rigidity has become the focus of this vehicle.
The gooseneck part is composed of a traction pin, a lifting hydraulic cylinder, a pin shaft connected with the cargo platform, an eccentric block for fixing the position of the gooseneck, and a gooseneck. The good part is connected to the cargo platform by articulation, and a pair of lifting hydraulic cylinders are installed between the gooseneck and the cargo platform, which are driven by the hydraulic cylinder to realize the raising and lowering of the cargo platform.
After the cargo platform is raised or lowered, the position of the gooseneck and the cargo platform is fixed by an eccentric device. The eccentric device is welded by 16 Mn steel plate and steel pipe. It is installed in the hollow part of the gooseneck web and is connected to the gooseneck through a pin. The eccentric device has 2 plane positions through which it is in contact with the upper surface of the cargo platform.
The lower position is the lowest position of the removable gooseneck trailer, that is, the cargo platform is in contact with the ground; when the cargo platform is raised, under the action of gravity, the right plane Turning to the bottom, the oil pressure can be unloaded at this time, and the load is completely carried by the eccentric device. This position corresponds to the highest cargo platform.
You can learn about different types of lowboy trailers(like removable gooseneck trailer , removable gooseneck trailer for sale , 4 line 8 axle removable gooseneck trailer for sale in Nigeria). And the process, testing, packaging and customer feedback, etc.
This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
