3 Axle Drop Deck Semi Trailer for Sale in Nigeria
Nigeria customers saw our drop deck semi trailer locally. He liked TITAN's semi trailer very much. So he found TITAN sales manager Annie. The Nigeria customer mainly transport excavators, so according to the customer's needs, we recommend 60 ton capacity 3 axle drop deck semi trailer. If there are friends who need it, customers will also recommend TITAN drop deck semi trailer.
The drop deck trailer can also carry a wide range of goods, it is suitable for the transportation of various steels such as a variety of mechanical equipment, large objects, highway construction equipment, power station equipment and machinery.

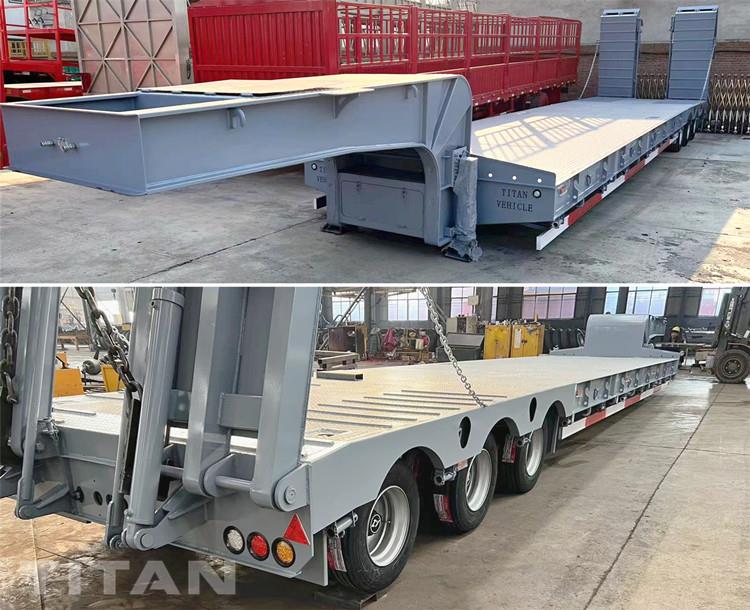

3 Axle Drop Deck Semi Trailer with Folding Hydraulic Ramps will be sent to Nigeria

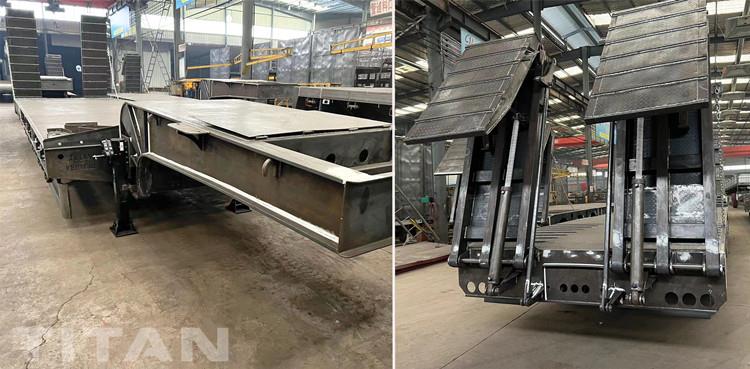

There are three styles of drop deck semi trailer ramps, the most common is spring ramps. There are also ordinary hydraulic ramps and folding hydraulic ramps. The folding hydraulic ramp chosen by the Nigeria customer has a gentler slope, which is more conducive to the loading of machines such as excavators.
Before production, TITAN technical department must first design and produce drawings according to the needs of the user and the market, so that the technical parameters of the main 3 axle drop deck semi trailer are matched, and then transferred to the manufacturing department.
1. Stage of cutting steel sheet material
According to the drawings of each part produced by the design department, each part is cut out with a CNC cutting machine, such as beam webs, reinforcement plates, standard small accessories and so on.

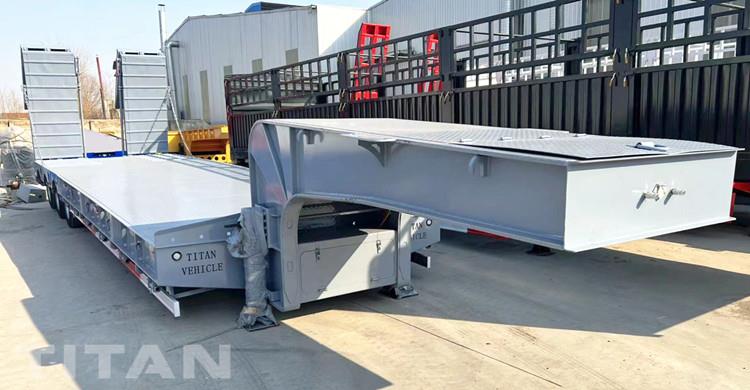

3 Axle Drop Deck Trailer for Sale in Nigeria
2. Submerged arc welding beams, beams fixed
The second step is to fix the cut web and the upper and lower wing plates to weld points, and then weld the beam by submerged arc welding.
3. Opening, calibration beam, through beam
First cut out the web of the beam to cut out U-shaped holes through which the beams can pass, and then fix the welded I-beams in parallel. The result of comparing the beams is very important. If two I-beams have large parallel errors, very serious tire wear will occur.
4. Connect side beams, welding king pins
At this time, the main beam of the 3 axle drop deck trailer is basically formed, only the side beams are welded to form the frame structure. And the traction pin traction plate is welded to the position required in the contract, the welding process is required to be high, otherwise, the lowbed truck trailer will be skewed.
5. Welding frame, welding suspension
At this time, the welding suspension must strictly control the size and maintain the squareness, otherwise it will cause 2 axle low loader for sale malaysia of tire wear.

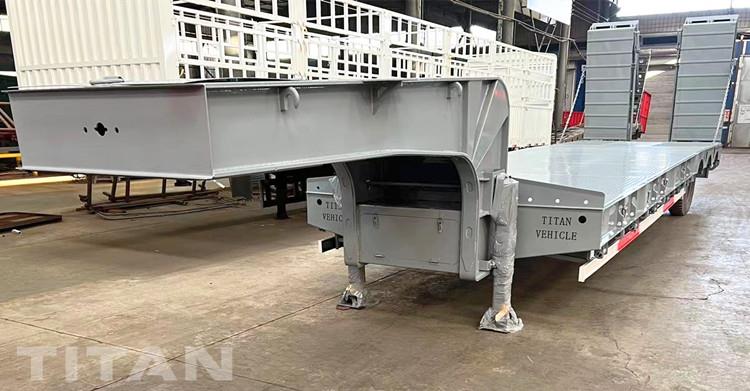

3 Axle Drop Deck Semi Trailer for Sale in TITAN Factory
6. Attach the front neck
The front neck of the low bed trailer is welded up. Welding is done to strengthen the plate. There is no problem with the strength.
7. Lay the bottom plate
That is, the bottom plate of the 3 axle drop deck trailer is fully welded on the frame. There is nothing to say at this step.
8. Frosted and painted
Frosting is the previous step of spray painting. Some manufacturers without shot blasting workshops will blow and polish the welding slag with high pressure gas at this stage.
Spray paint is usually sprayed in a well-ventilated shed. If you want to spray beautifully, you must first look at the coating and the technology of the technicians, but TITAN 3 axle drop deck trailer will spray very beautifully. Basically, you don’t have to worry about this. We will be very attentive!
