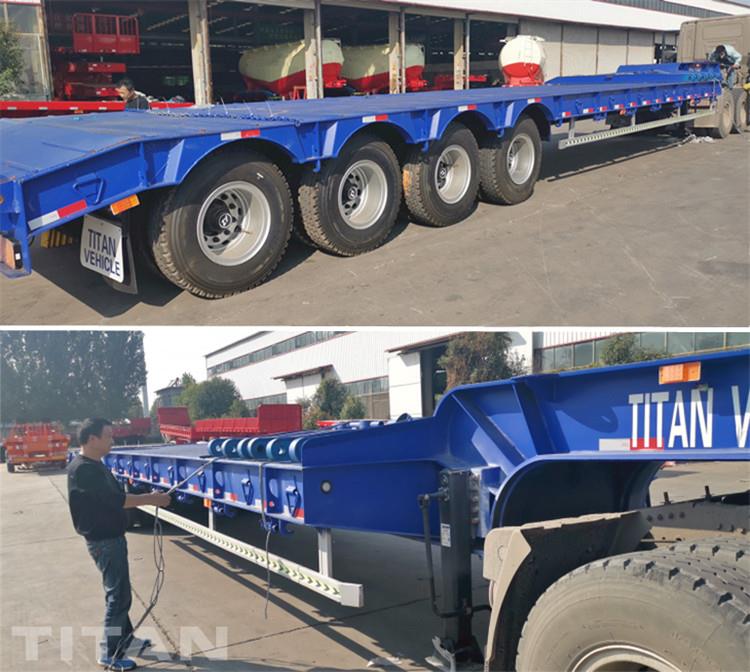

4 Axle 100 Ton Low Bed Trailer for Sale in Rwanda
The 4 axle 100 low bed trailer of Rwanda customers have just been produced together and packaged and shipped to their destinations. How to extend the service life of the vehicle? This is a big problem for many low bed trailer users, mainly from maintaining the good technical condition of the low bed trailer, which is more conducive to extending the life of the vehicle.
When loading mechanical equipment on the 4 axle low bed trailer, the mechanical equipment is usually loaded from the rear of the semi-trailer, that is, the mechanical equipment is moved from the rear wheel frame or the wheels are removed, and then the mechanical equipment is fixed on the semi trailer.

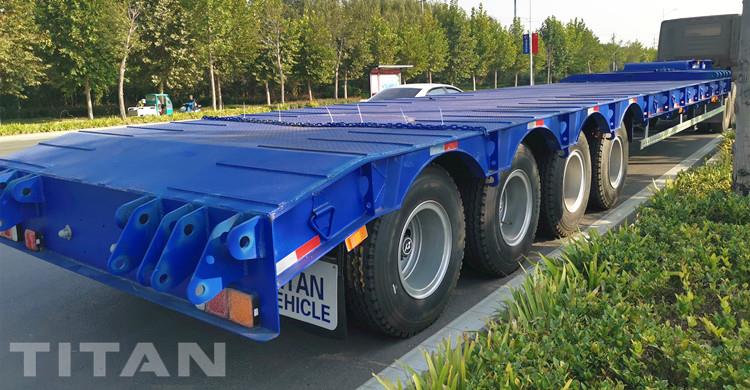

4 Axle 100 Ton Low Bed Trailer for Sale in Rwanda
1. Before the new low bed trailer is used for the first time, we should check it according to the “instructions for use” and tighten all external bolts and nuts.
2. Within the first 300 kilometers of a new 100 ton low bed trailer, its components are in a running state. During this period, the weight of the trailer should not exceed 80% of the rated load, and it should not be driven on muddy roads.
3. After the new low bed trailer runs for 30-50 kilometers, check the wheels and suspension bearings for high heat or noise. If you find any abnormality, find out the cause in time and remove it.
4. After the new low bed trailer travels 300-500 kilometers, you should tighten all bolts and nuts.

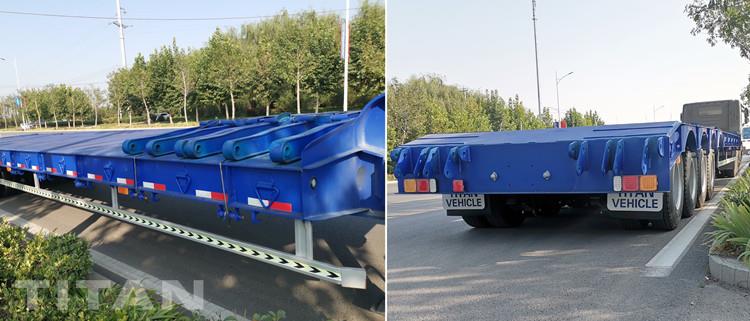

4 Axle 100 Ton Low Bed Trailer for Sale in Rwanda
1. Check the tightness of all suspension components (according to the torque data provided)
2. Check whether there are any breaks in the leaf spring reeds;
3. Check all brake system joints and hoses for damage and hose clips are missing;
4. Check the proper operation of relay valves and other valves;
5. Check the wear of the sleeve of the tension rod;
6. Check the brake drum for cracks or abnormal wear;
7. Check whether the lubricating oil of the axle will leak;
8. Check all fasteners, focusing on the fasteners used for legs, tires, axles, etc. (in any case, nuts, screws and other fasteners should be tightened to the recommended torque parameters);
9. Check the wear of the pull pin;
10. Check whether the brakes are normal;
11. Lubricate the outriggers and the traction plate/traction pin;
12. Check whether there is any open glue at the joints of the side wall panels, door panels and roof panels;
13. Replace worn parts with manufactured or approved parts.

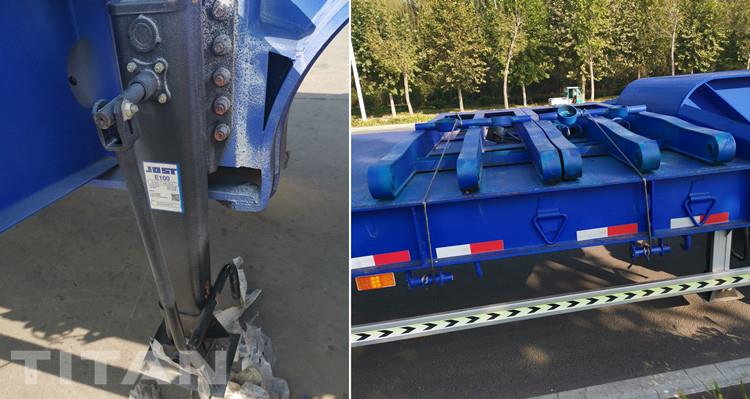

Details of 4 Axle 100 Ton Low Bed Trailer for Sale
After the vehicle has been in use for 6 months, a comprehensive inspection is performed every 12 months to ensure the performance of the vehicle (including maintenance at the 6th month). The inspection scope is the same as the monthly inspection mentioned above, with the following additional provisions:
1. Remove the brake drum and thoroughly check that the brake shoes have no additional or improper wear;
2. Check the brake shoe return spring, brake bushing, camshaft sleeve, brake shoe drum, etc. for damage;
3. Check the bearing and axle connecting parts;
4. Thoroughly inspect the structure of the vehicle and report it immediately if there is a problem;
5. Replace all worn or damaged parts with replacement parts recommended by TITAN Vehicle.
You can download video, you can learn about different types of lowbed semi-trailers, like 2axle, 3axle, 4axle lowbed semi trailer, hydraulic ladder lowbed semi trailer, etc. As well as the process, testing, packaging and customer feedback, etc.
Welcome to download our quotation, if you have other questions, please contact us
