6 Axle Extendable Wind Turbine Transport Trailer for Sale in Nigeria
Nigeria customer has customized a 6 axle extendable wind turbine transport trailer. This customer previously helped a friend to customize an extendable trailer. I learned from the customer that the friend had a very good evaluation of the TITAN extendable wind turbine trailer, so this time the customer also considered customizing an extendable wind turbine trailer from TITAN.
The customer directly contacted the previous sales manager and expressed that he wanted a TITAN 6 axle extendable wind turbine trailer that was the same as last time.

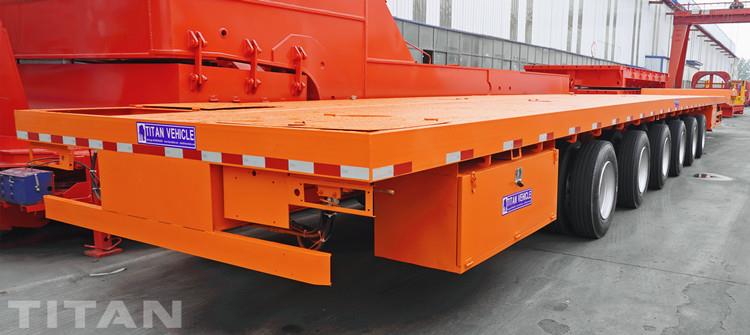

6 Axle Extendable Wind Turbine Transport Trailer for Sale in Nigeria
Extendable trailer for sale from China TITAN VEHICLE are widely used for long cargo transport, especially for windmill parts logistics, such as wind blade, wind tower section, and turbine. The stretchable telescopic beam could be 2 or 3 parts. Total length can reach up to 60 meters.
The extendable trailer’s original design is using the mechanical axle, just like a lowbed trailer connect with a telescopic beam to make its length adjustable, so enable the trailer to adapt to different lengths of cargos.
The telescopic beam could be mounted in other semi-trailers, giving you an extendable flatbed trailer, extendable drop deck trailer as well as extendable lowboy trailer.

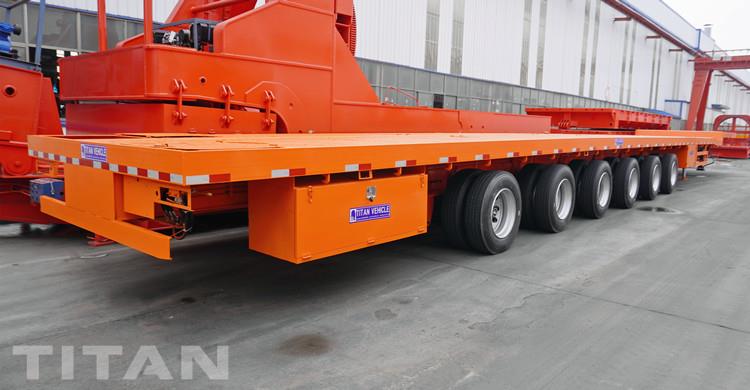

6 Axle Extendable Wind Turbine Transport Trailer for Sale in Nigeria
The wind turbine transport trailer adopts the extendable structure to extend the length, and the wind blade lies flat on top of the trailer.
The significant feature of the wind blade transport semi trailer is that it is super long and has longitudinal expansion and contraction. Due to the super length of the vehicle type, the turning difficulty is significantly increased. To overcome driving on the curve, the extendable wind turbine transport trailer is generally equipped with a hydraulic steering system, and the rear axle is fitted with a power station.

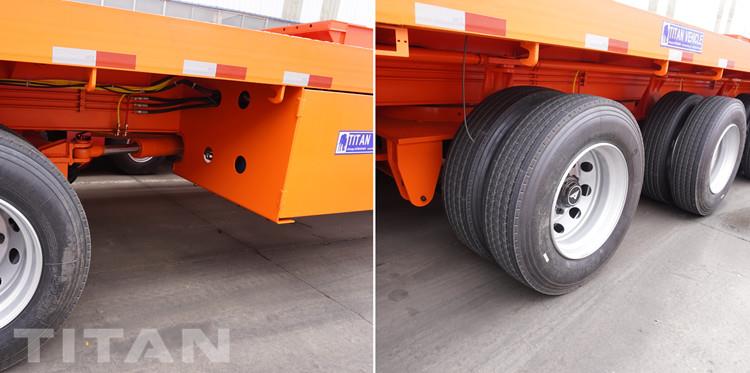

Considering the stability and the length of the windmill blade, the rear axle adopts its air suspension system, drawing and pulling the longitudinal beam freely, and has good trafficability.

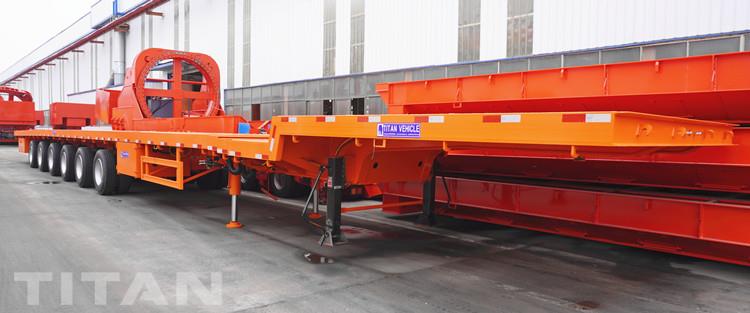

Details of 6 Axle Extendable Wind Turbine Transport Trailer for Sale
The extendable wind turbine transport trailer of the blade can be more than 60 meters long. It has three or four axle balance type, remote control power steering, and a mass balance block is installed between the front and rear leaf springs, which can change the deflection of the front and rear leaf springs equally and balance the force on the front and rear axles.
The bearing capacity is designed as 60 tons or more, the height of the main chassis frame is 550 mm, the width is 300 mm, the girder is buckle box type, the side beam is 250 mm I-beam, and the minimum cargo loading surface is 850mm.
Here is the Extendable Windmill Blade Trailer transportation details display video. This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
