80 Ton Excavator Transport 4 Axle Lowbed Truck Trailer for Sale in Sudan
Sudan customers customized a 80 ton excavator trailer. This customer-first saw our product on Alibaba and left his phone number and product information of interest on the platform. After our sales manager Jacky contacted the customer, he sent the customer a more detailed product catalog and quotation.
The customer confirmed the size and configuration of the 80 ton 4 axle lowbed truck trailer. He finally bought the lowbed trailer, which has now been produced and is ready to be shipped to Sudan.
Details of 80 Ton Excavator Transport 4 Axle Lowbed Truck Trailer for Sale
Lowbed truck trailer is a heavy-duty vehicle that is to transport heavy, wide, and tall cargo. Lowbed trucks are used in different industries: heavy vehicles, rail vehicles, mining machinery, forestry machinery, construction, agricultural, etc, We can customize the lowbed truck trailer for you according to your needs.
Lowbed trucks also can transport all categories of heavy loads. such as finished products from these industries are packed in containers and stacked on lowbed truck trailer for transportation. The transporters can move stacks of heavy cargo without toppling over. So, we also usually choose low bed semi trailers to transport heavy goods.

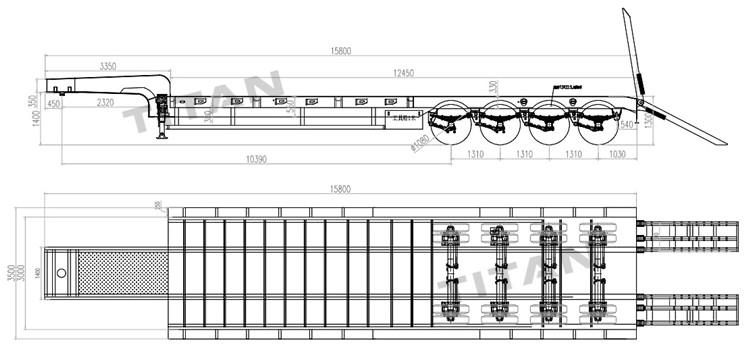

Drawing of 80 Ton Excavator Transport 4 Axle Lowbed Truck Trailer for Sale
1. Suspension system: transfer load and absorb vibration.
2. Axle and hub system: A single, two and three axle assemblies of the same structure are installed under the suspension system.
3. Landing gear lifting system: In order to make the 4 axle lowbed truck trailer reliably parked after being separated from the truck, the front end of the frame is provided with two linkage or single action landing gear. It consists of a screw drive mechanism, a bevel gear drive mechanism, a two-speed reduction gearbox, a transmission rod, an operating handle, and so on.
When the handle is pushed in, the rotation can be raised and lowered at high speed, and when the handle is pulled out, the rotation can be raised and lowered at low speed. When the outriggers touch the ground, they can only be raised and lowered in low gear.

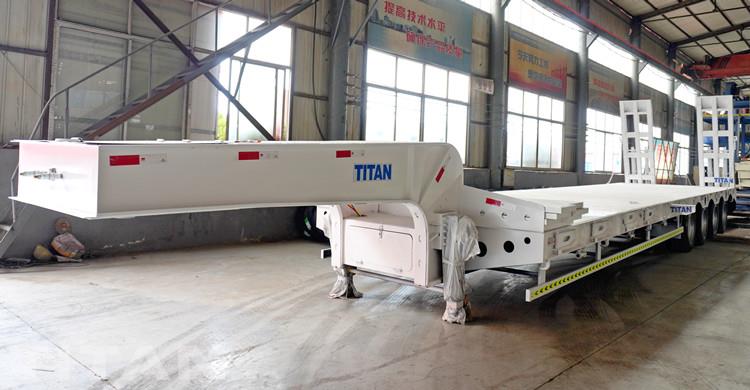

80 Ton Excavator Transport 4 Axle Lowbed Truck Trailer for Sale in Sudan
4. Traction pin: There is a traction pin connection plate connected to the tractor saddle at the lower part of the front end of the frame. The traction pin is mainly used to transmit the traction of the tractor and the braking force during braking.

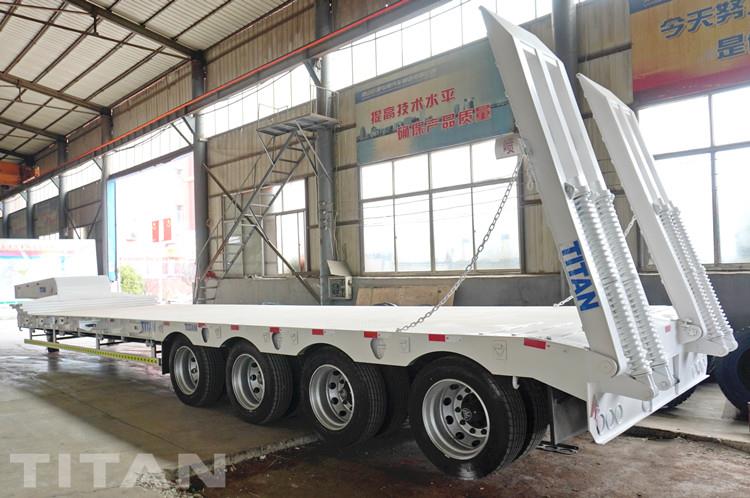

5. Ramp: There are three styles of lowbed truck trailer ramps, the most common is spring ladders. There are also ordinary hydraulic ramps and folding hydraulic ladders.
6. Semi trailer braking system: It is composed of the trachea connector, inflation pipe, operating channel, gas reservoir, brake air chamber, relay valve, ABS valve, ABS sensor and wheel brake of the tractor.
The inflatable tube is connected to the tractor’s gas tank through a quick pipe joint; it is connected to the tractor’s brake valve through a quick joint. When the 4 axle lowbed trailer brakes, each brake air chamber functions simultaneously.

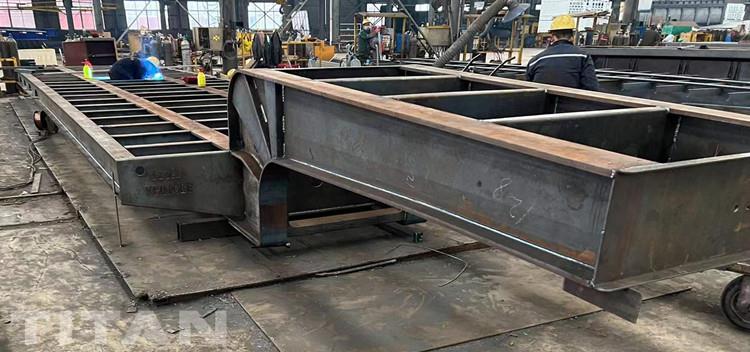

80 Ton Excavator Transport 4 Axle Lowbed Truck Trailer for Sale in TITAN Factory
7. Semi trailer airway: Three major parts: emergency relay valve, ABS valve, brake air chamber, most of the faults come from these three pieces.
8. Semi trailer circuit: The lowbed semi trailer transmits the light signal of the main vehicle to the trailer by connecting the spiral cable plug of the truck to the circuit socket at the front of the trailer. Thus, the vehicle equip with an international general electrical system that matches the truck. The electrical system generally consists of seven core sockets, multi core cables, junction boxes, waterproof connectors, and various types of lamps and other components.
You can download video, you can learn about different types of lowbed semi-trailers, like 2axle, 3axle, 4axle lowbed semi trailer, hydraulic ladder lowbed semi trailer, etc. As well as the process, testing, packaging and customer feedback, etc.
Welcome to download our quotation, if you have other questions, please contact us
