80M Windmill Blade Transport Adaptor Trailer for Sale in Vietnam
Vietnam customer has customized a windmill blade transport adaptor trailer. This customer previously helped a friend to customize an extendable windmill blade trailer. I learned from the customer that the friend had a very good evaluation of the TITAN extendable windmill blade trailer, so this time the customer also considered customizing an windmill blade adaptor trailer from TITAN.
The customer directly contacted the previous sales manager Alice and expressed that he wanted to customize a windmill blade transport adaptor trailer.

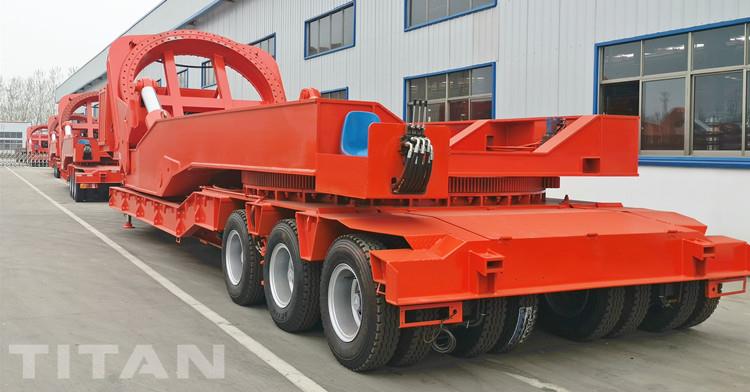

80M Windmill Blade Transport Adaptor Trailer for Sale in Vietnam
In the wind power industry, TITAN mainly have wind power nacelle, wind turbine blades, wind tower section, etc. to complete industrial chain. TITAN provide all types transportation solutions for the wide power industry use. This model is blade lifter for wind turbine transportation.
When the extendable blade transport vehicle cannot reach the designated location due to the influence of road traffic conditions, it is necessary to use the wind turbine blade special secondary transfer windmill blade transport adaptor . This model uses 3 line 6 axle lowbed trailer as the bottom recessed cargo platform.

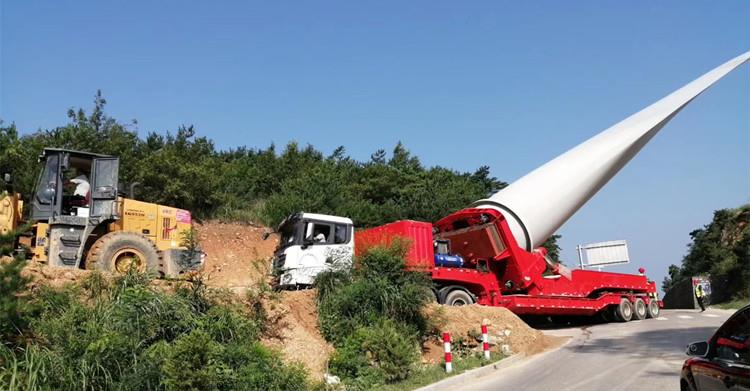

The special windmill blade transport adaptor trailer can lift the blades through hydraulic control and rotate itself 360 degrees during driving, avoiding various obstacles during transportation (mountain slopes, trees, houses, bridges, tunnels, etc.), which greatly improves the passability of the blades in complex road sections and mountain wind fields. In the case of high wind, the blades can rotate 360 degrees to avoid the wind, and participate in the balance through the counterweight to ensure transportation safety.

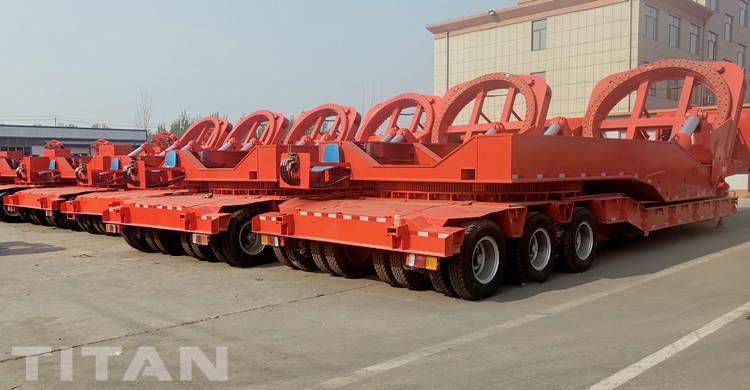

80M Windmill Blade Transport Adaptor Trailer for Sale in Vietnam
Advantages of windmill blade transport adaptor trailer:
The blade rotates flexibly, and the transformation cost is small. The blade sweeping area of the special windmill blade transport adaptor trailer blade lifting and transportation method is larger than that of an ordinary extendable trailer for sale. The blade sweeping area is large, and the area involved in the renovation project in the curve is reduced by about 10 times.
Blades can be transported by lifting, which can better avoid high mountains and cliffs, or house buildings, so about achieve rapid blade transportation. At the same time, this method can also reduce the cost of road reconstruction and house demolition, which can help improve blade transportation efficiency and engineering benefits.

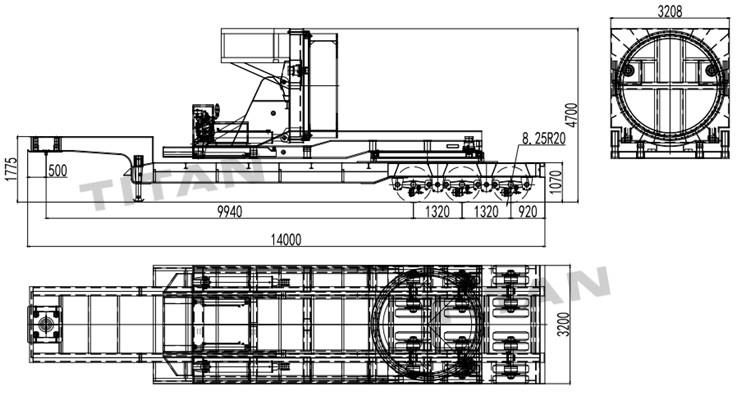

Drawing of 80M Windmill Blade Transport Adaptor Trailer
How are windmill blade transport adaptor trailer?
Modern day wind farms are becoming major contributors to the world power supply, serving as proof of the interest and commitment to using alternative energy. But these farms couldn’t be built without the equipment used to transport the turbine components from the manufacturer to the construction site. In the past, trailers used to mobilize the equipment on site lacked the safety, easy-of-use and the hauling capacity required of today’s offerings.
Windmill blade transport adaptor trailer is among the most innovative and advanced trailers in China. The windmill blade transport adaptor trailer is a leading edge, innovative windmill blade transport adaptor to satisfy all your wind energy transportation needs. With fewer mechanical connections from the fifth wheel to the steered axle, you can save on height, weight, and maintenance. With its customized steering functionality, you can drive forward and backward. Its automatic centering device, when active above a certain speed, offers you the stability of a fixed axle.
These type of wind blade trailer are used to transport turbine blades on mountain roads and curved roads as well. Because of the fact that extendable trailers are too long, when it comes to a mountain road, it is hard to steer hence the need for the special blade trailer. The design is made in such a way that the blade adaptor can lift up and down making it easier for the trailer to steer easily.
This ASM technology is a fully dedicated microprocessor-controlled, electronic over hydraulic steering system which uses a software program to actuate axle turns. Because blade lifters mega windmill transporter can effortlessly and continuously drive around tight corners, it is ideal for transporting long and cumbersome windmill blades. As it turns, the truck sends a signal through the kingpin sensor, specifying the radius needed by the rear axles to curve around the corner – which allows for a tighter radius than traditionally made windmill blade transport adaptor trailer. The wind blade trailer steering – independent of speed — gives you the optimal steering angle, in all types of circumstances. You can check the alarms and calibration through a display, via its PC application.

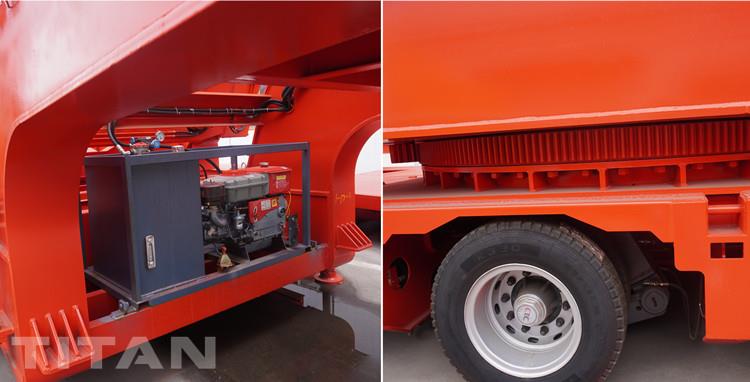

Details of Windmill Blade Transport Adaptor Trailer for Sale in Vietnam
