Chapter 1: What is a folding gooseneck trailer?
Chapter 2: Different of folding gooseneck trailer and removable gooseneck trailer
2.1 Advantages of folding gooseneck trailer for sale over removable gooseneck
Chapter 3: How to operate a folding gooseneck trailer?
The folding gooseneck trailer addresses the issues of providing a bed that may be lowered to the ground and lies flat. Ideally, the trailer provides many ground engaging pads that are adjusted independently.
The gooseneck is a design with a hydraulic folding structure. When the structure folded, it’s a gooseneck to connect the trailer with the prime mover. When it unfolded, it’s will touch the ground as a shallow slope for cargos loading. Compare to rear ramps, it’s shallow and stable, could effective solutions for cargo loading.
This way, it allows you to adjust the folding gooseneck trailer for sale bed on an uneven terrain. The hydraulic system used for operating the gooseneck independently of the trailer bed is provided within the trailer. The basic objective of the folding gooseneck is to provide:
A trailer where the load supporting bed can hydraulically be lowered to the ground surface and adjustments made to compensate for sloping or rough surfaces.
The option of operating the gooseneck independently of the bed supporting structures that lie flat on the surface.
A means of eliminating the need for locking pins to keep the trailer stay in an erect position.
Drawing of 4 Axle 100 Ton Folding Gooseneck Trailer
Folding gooseneck trailer is a kind of front-loading trailer, different from the removable gooseneck trailer, you can load the trailer from the front of the lowbed trailer(could be flatbed trailer) but no need to dismantle the gooseneck from the trailer body. When unhooking from the prime mover, the semi trailer’s neck could be folded to ground as a shallow slope for crawler crane and other machines to drive on.

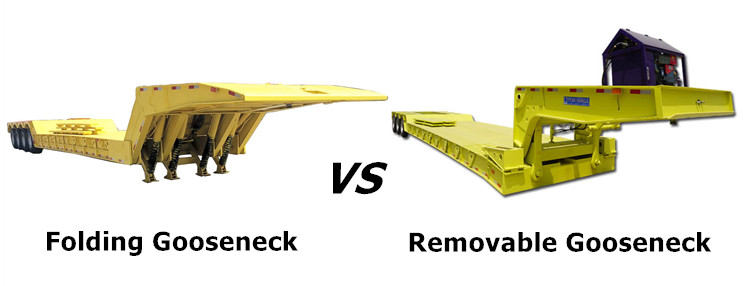

Both the folding gooseneck trailer and the removable gooseneck trailer refer to a connection method of the trailer, and the difference between them is the design of the connection part.
The removable gooseneck means that the gooseneck of the trailer is separated from the body chassis, and other tools are required to install the gooseneck to the body chassis before it can be used. Generally, the removable gooseneck for sale has a stronger structure and can withstand greater loads.
Folding gooseneck trailer means that the gooseneck of the trailer can be folded, so that the gooseneck can be stowed away when the trailer is not needed. The advantage of this connection method is that it saves storage space and makes the trailer more portable. However, compared with the removable gooseneck, the structure of the folding gooseneck may be slightly weaker and cannot bear excessive load.
In general, the choice of removable gooseneck trailer or folding gooseneck should be determined according to the specific use requirements and the load of the trailer.
1. Efficiency
The folding neck lowboy for sale is superior in terms of efficiency. The ground engaging pads can be adjusted independently hence making your loading and offloading operations on a flat level achievable without any challenges. Therefore, there are no worries should you be required to load and offload your equipment on an uneven terrain. The ability to make independent adjustments makes this trailer manipulatable and efficient to use more than the detachable neck lowboy trailer for sale.
2. Cost
The used detachable lowboy trailer for sale is cheaper compared to the folding neck lowboy trailers for sale. Therefore, if you don’t have a big budget for these types of trailers, a folding neck lowboy trailers for sale may not be your choice. Despite the high cost however, the folding gooseneck trailer has multiple features that make it more stable and useful than the removable lowboy trailer price. The many features are the reason for increased costs.
3. Operation
Compared to the folding gooseneck trailer for sale, the removable gooseneck trailer is complicated to operate. This is especially when working on a rugged terrain where achieving the best loading and offloading positions may prove to be a challenge. The ability to make adjustments on the ground engaging pads independently on the folding gooseneck makes it a lot easier to operate and to work with more than the removable lowboy gooseneck trailer for sale near me regardless of the ground topography.

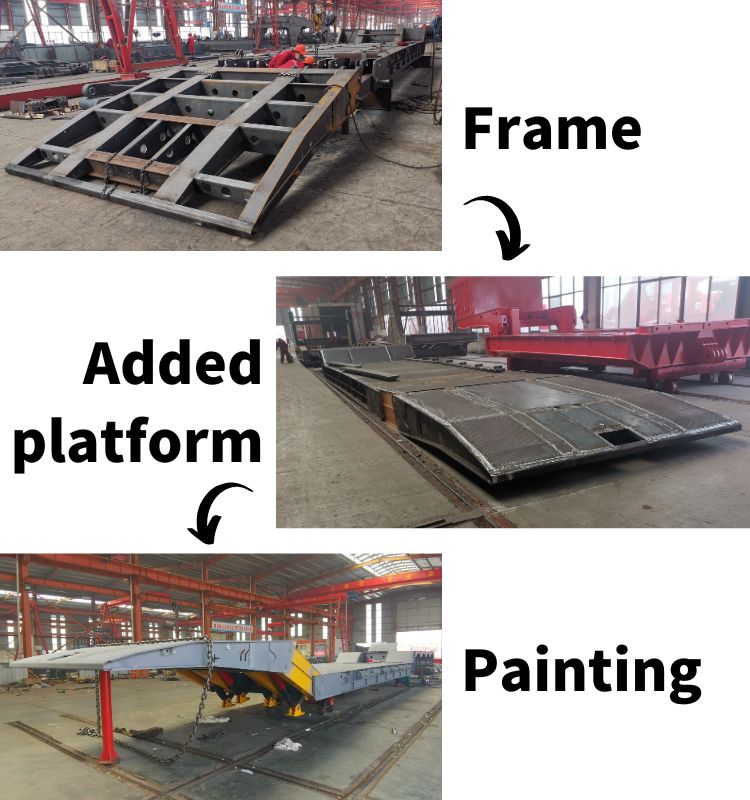

Production Process of Folding Gooseneck Trailer in TITAN Factory
4. Durability
The removable gooseneck is rugged in nature and can last for long with an ability to carry out many operations before breaking down or without necessitating routine maintenance. For the folding gooseneck trailer for sale, the independent hydraulic systems for the ground engaging pads and multiple other systems presents the need for frequent checks and maintenance. Extra caution is to be taken when using it more than you would need for the removable gooseneck trailer.
5. Technology
The removable gooseneck trailer is a simple construction that is light weight in nature. On the other hand, the folding gooseneck trailer is sophisticated with multiple systems that enhance its performance and operationality. It would require more skills to operate the folding gooseneck trailer than the removable gooseneck trailer.
6. Customization
If you are looking for a trailer that you can easily modify and manipulate to meet different needs, then the folding gooseneck trailer for sale is the one to go for. If you need a trailer for different applications, you obviously will require one that is easily modified to suit such. For instance, you can have a commercial trailer with an elongated load carrying bed, various ground engaging wheels mounted to one end, the gooseneck with a first link connected to the bed via a pivot and to a hitch platform. This may not be possible with a removable gooseneck trailer.
Drawing of 4 Axle Removable Gooseneck Trailer
Operating a folding gooseneck trailer involves several steps. Here is a general guide to get you started:
Unfold the Trailer: Start by unfolding the folding gooseneck trailer from its compact, folded position. Some trailers have manual mechanisms for this, while others are powered. Follow the manufacturer's instructions for your specific trailer.
Secure the Trailer: Once the trailer is unfolded, make sure it is securely attached to the towing vehicle. The gooseneck hitch should be properly locked into place and all safety chains and brake connections should be established.
Load the Trailer: Load your cargo onto the folding gooseneck trailer for sale, making sure that it is evenly distributed and secured. Be sure to stay within the weight capacity of the trailer.
Raise the Gooseneck: Use the hydraulic system or manual crank to raise the gooseneck up and off of the towing vehicle. This will allow you to maneuver the trailer independently.
Drive the Trailer: Drive the trailer to your destination carefully, ensuring that you follow all traffic laws and driving safely.
Lower the Gooseneck: Once you reach your destination, use the hydraulic system or manual crank to lower the gooseneck back onto the towing vehicle.
Unload the Trailer: Carefully unload your cargo from the folding gooseneck, making sure to remove any tie-downs or restraints used to secure it during transport.
Fold the Trailer: Finally, fold the trailer back up into its compact form for storage or transport. Again, follow the manufacturer's instructions for your specific trailer.
Remember to always follow safety guidelines when operating a folding gooseneck trailer, and consult your owner's manual for detailed instructions specific to your trailer model.

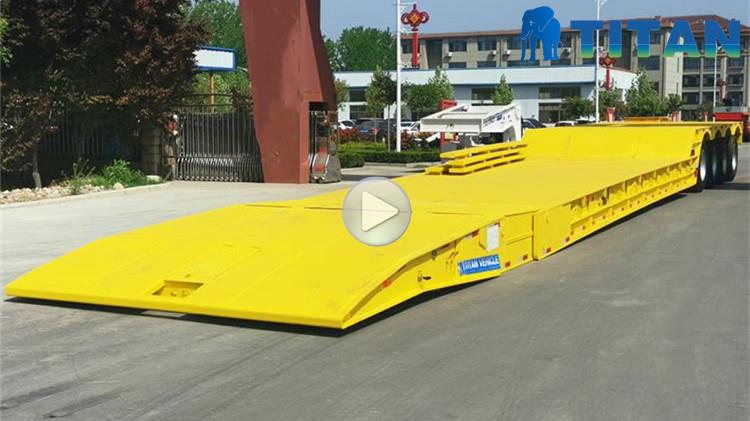

Click the picture to watch the operation video
