4 Line 8 Axle Lowbed Trailer lower the center of gravity, the better the stability and safety, and the stronger the ability to transport ultra-high cargo.
4 Line 8 Axle 150 Ton Lowbed Trailer is widely used, mainly for medium and long-distance freight transportation. Low bed trailers are commonly used to transport heavy vehicles, rail vehicles, mining machinery, forestry machinery, agricultural machinery, and other heavy-duty cargo.
150 Ton Lowbed Trailer structure usually adopts a concave beam frame. The lower the center of gravity, the better the stability and safety, and the stronger the ability to transport ultra-high cargo.

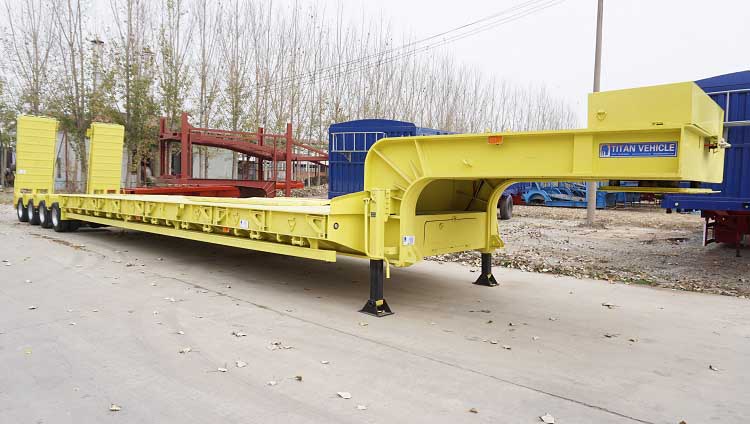

4 Line 8 Axle 150 Ton Heavy Load Lowbed Trailer for Sale in Mozambique
4 Line 8 Axle 150 Ton Heavy Load Lowbed Trailer for Sale in Mozambique

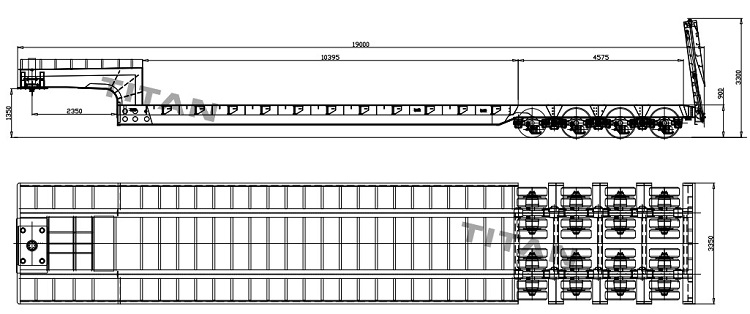

Overall dimension: 19000mm * 3350mm *3400mm
Loading capacity(T): 150T
Axle: 4 Line 8 Axle, FUWA / BPW / TITAN Brand
Rim: 8.0-20
Tire: 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: Spring ramp
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)

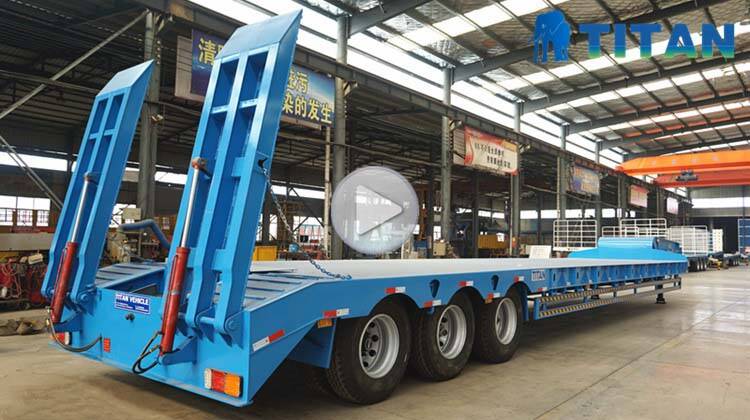

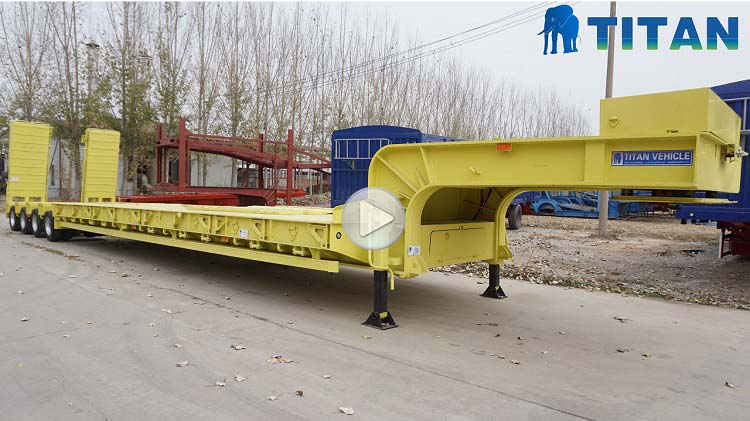

150 Ton Lowbed Trailer Truck details display video
Through this videos, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.
