Different Parameters, Different Price. Price Reference Only.
Low loader trailers use quality materials and unique designs. Greatly improved service life and load carrying capacity of low bed trailer for sale.
4 axle low loader trailer use high strength steel material to ensure the capacity, the load can be up to 100 to 120 ton payload. We adopt famous brand parts, like WABCO braking valve, JOST legs, FUWA, BPW axles. This’ll ensure the long service life of the trailers.
Low bed Trailer are usually used to transport a variety of machinery and equipment, heavy equipment, highway construction equipment, large tank body, power station equipment, and various excavators, and are used to transport heavy vehicles

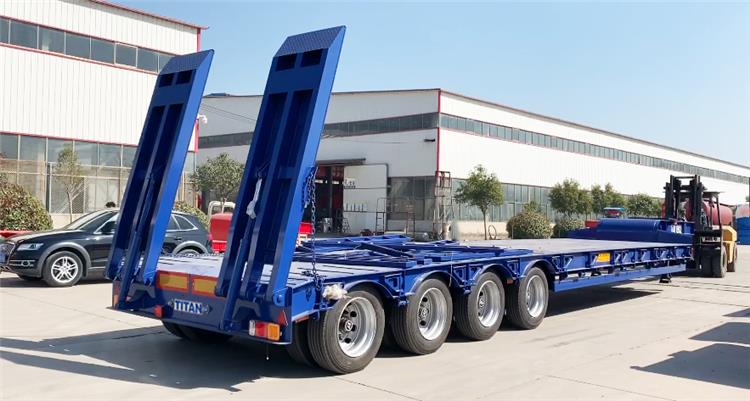

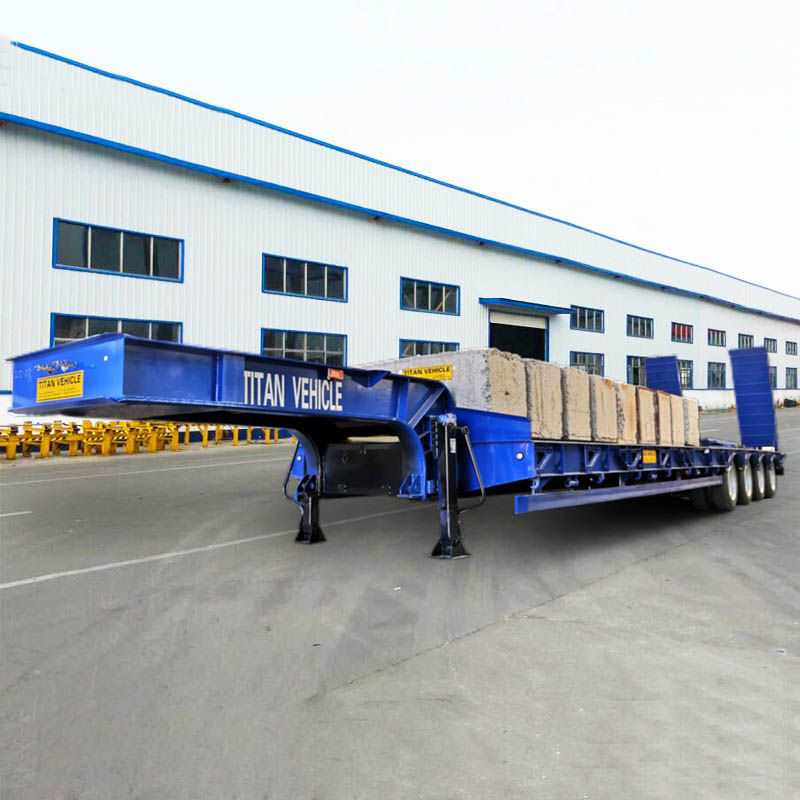

4 Axle 100T Low Loader Trailer for Sale
Low Bed Trailer | 4 Axle 100T Low Loader Trailer for Sale

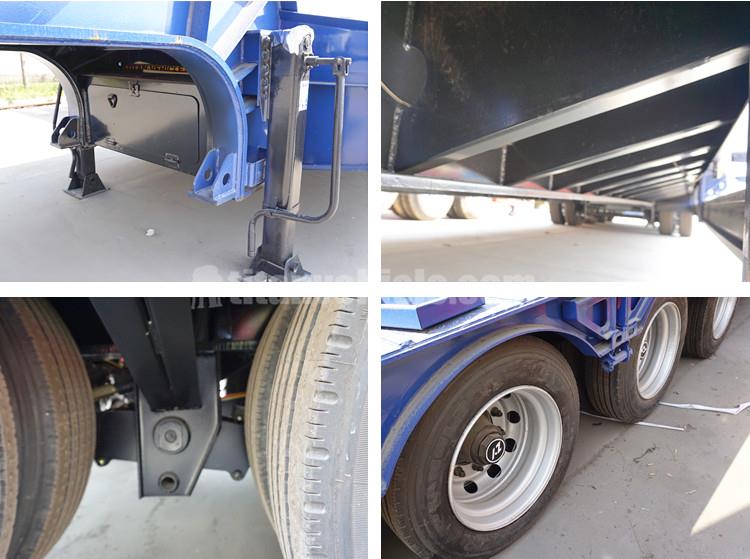

Details of 100T low loader truck

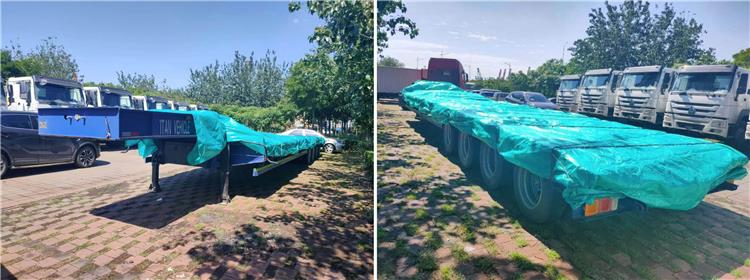

Shipment of 4 Axle lowbed Trailer

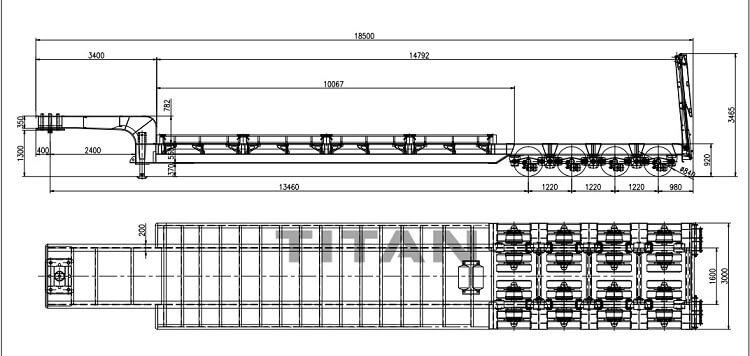

Overall dimension: 15800mm * 3000mm *3400mm
Loading capacity(T): 100T
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20
Tire: 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: hydraulic type
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
4 Axle 100 Ton Lowbed Semi Trailer details display video
Through this video below, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.
