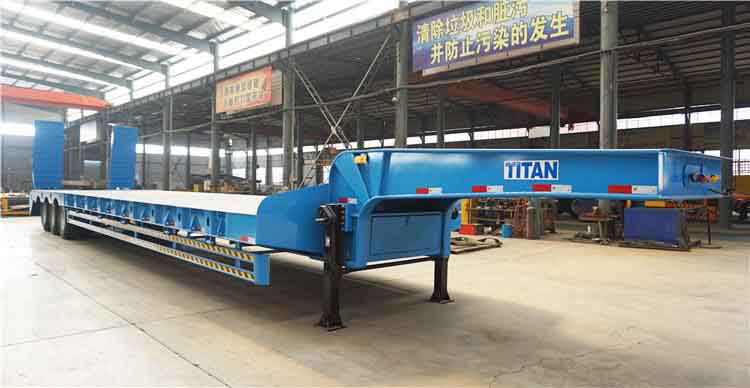

3 Axle Low Bed Trailer with Hydraulic Ramp, three styles of low bed truck ramps, the most common is spring ramp.
3 Axle Low Bed Trailer is widely used, mainly for medium and long-distance freight transportation. The lower the platform height of the 3 Axle Low Bed Trailer, the better the stability and safety. 3 Axle Low Bed Trailerhas a large carrying capacity when transporting extra high and medium cargo.
3 Axle Low Bed Trailer with Hydraulic Ramp, three styles of low bed truck ramps, the most common is spring ramp. There are also ordinary hydraulic ramps and folding hydraulic ladders. TITAN 3 Axle 80 Ton Low Bed Trailer very durable ones with high strength to meet the transport needs. We use high strength steel material to ensure the capacity, the load can be up to 60 to 150 ton payload.
3 Axle 80 Ton Low Bed Trailer for Sale in Gabon
3 Axle low bed trailer price
Overall dimension: 13000mm * 3000mm *3400mm
Loading capacity(T): 40-100T
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20
Tire: 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate

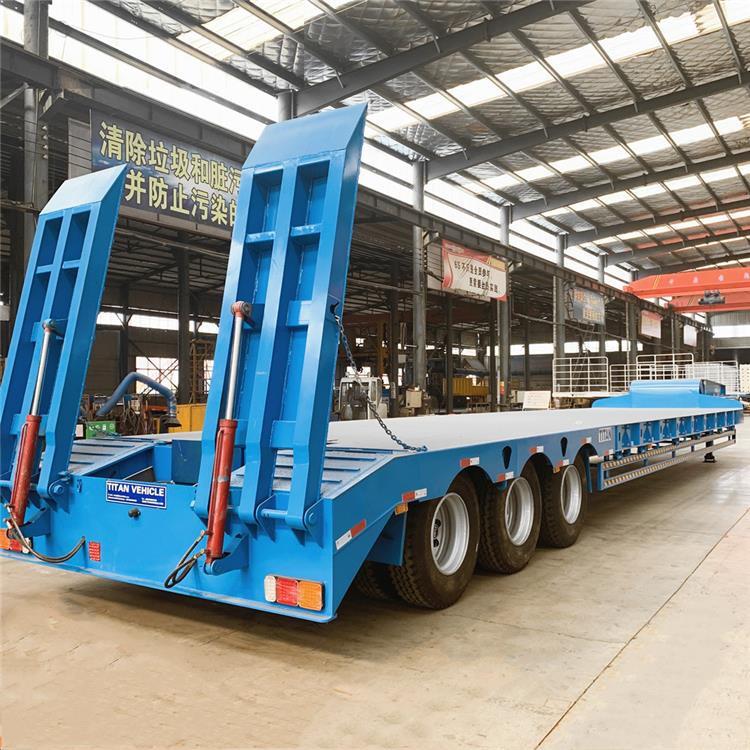

Ramp: hydraulic type
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
