With lowboy gooseneck trailer for sale, you don’t have to be worried about this since you can almost carry all types of cargo.
With lowboy gooseneck trailer for sale, you don’t have to be worried about this since you can almost carry all types of cargo.

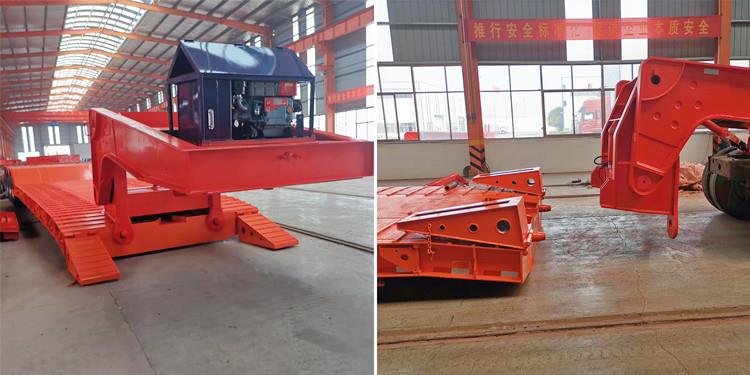

Characteristics of detachable trailer are that it can be detached from the front unlike with a lowbed semi trailer, so it is also called lowboy gooseneck trailer for sale. This feature has been provided in a lowboy gooseneck trailer for sale to enhance loading and offloading of cargo.

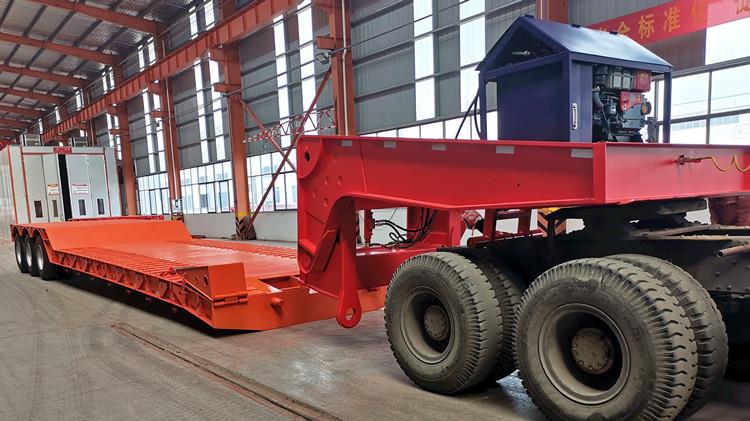

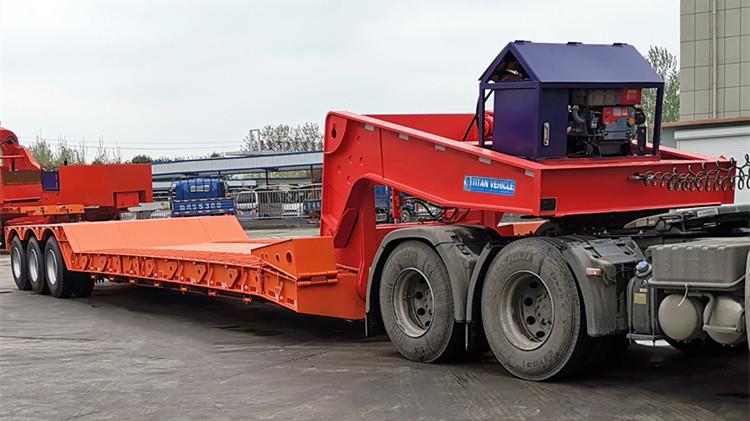

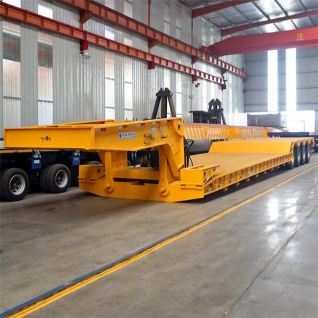

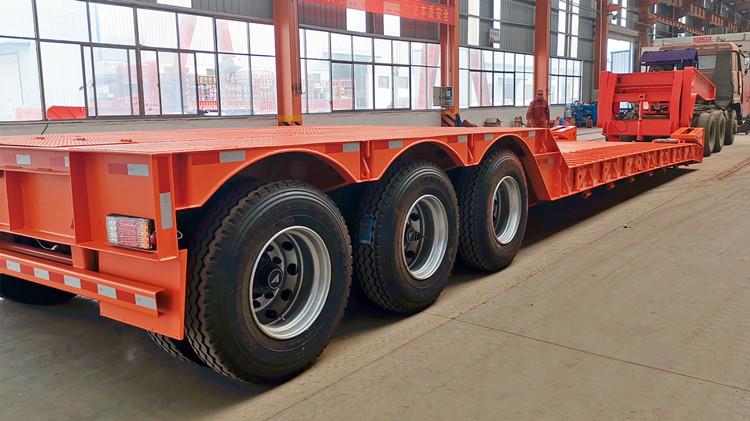

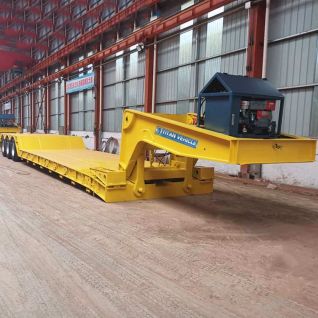

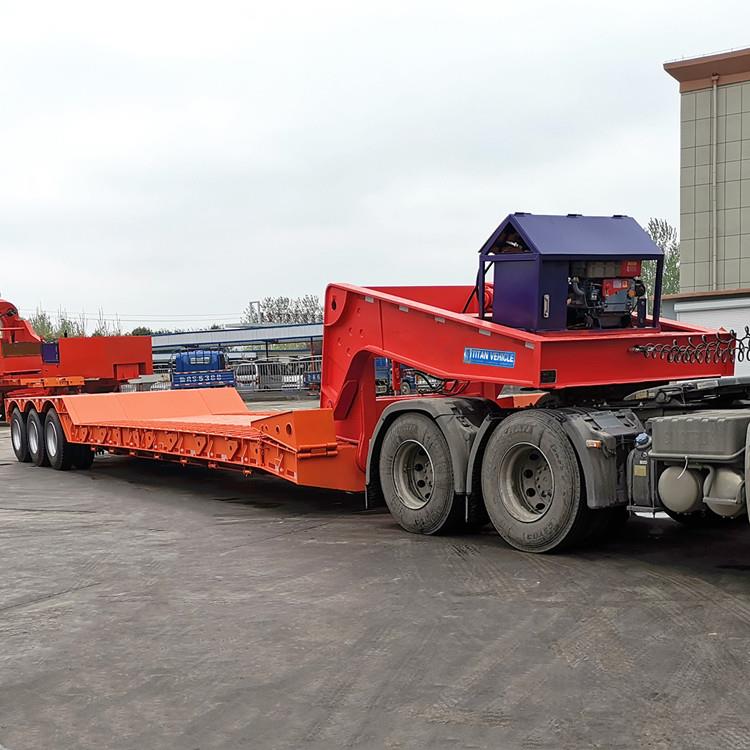

Detachable Trailer | Lowboy Gooseneck Trailer for Sale
Detachable Trailer | Lowboy Gooseneck Trailer for Sale
Detachable Trailer | Lowboy Gooseneck Trailer for Sale

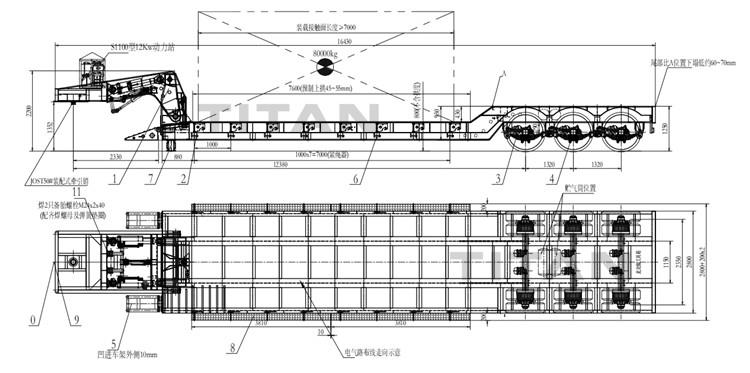

Dimension: 14400mm x 3000mm x 2500mm
Loading capacity(T): 50T
Axle: 3 axle
Tire: 12 units
Suspension: Mechanical suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
1. Strong carrying capacity

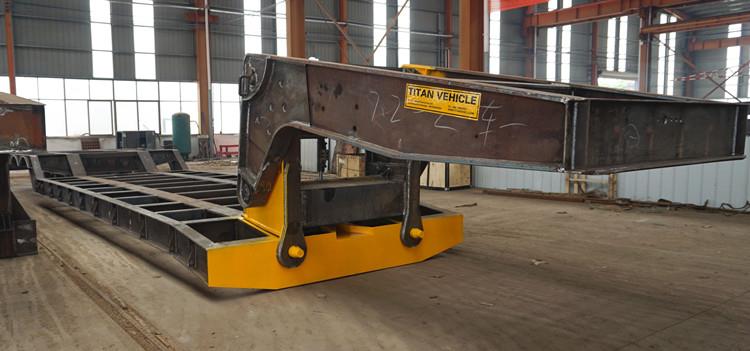

Detachable trailer main beam of TITAN is made of HG60 high-strength structural steel. The yield strength of HG60 steel is ≥ 620MPa, which is more durable and stronger than ordinary steel. Its bearing capacity is 5 times of that of Q345 steel trailer. TITAN lowboy gooseneck trailer adopts reinforced the gooseneck and upper and lower plate by double layer.
2. Low center of gravity and good stability
Due to the low ground clearance and low longitudinal beam height of detachable trailer, the load-bearing surface is 300-400mm lower than that of the normal concave-center lowboy gooseneck, thereby effectively reducing the height of the center of gravity of the loaded goods and improving the stability during transportation.
TITAN lowboy gooseneck trailer for sale bottom plate, Other suppliers usually use 3 or 4 mm bottom plate, But TITAN detachable trailer adopt 5 mm thick bottom plate, It’s more durable and won’t be deformed.
3. Easy operation
The lifting operation handle of the bearing surface mostly adopts the centralized electric control device, rather than the traditional handle to control the operation, so that the operation interface is more convenient.
TITAN hydraulic system has undergone five major system upgrades in the ten-year production process, and now the hydraulic system has very good stability and stability The customer only needs regular maintenance. It can be used for ten years.

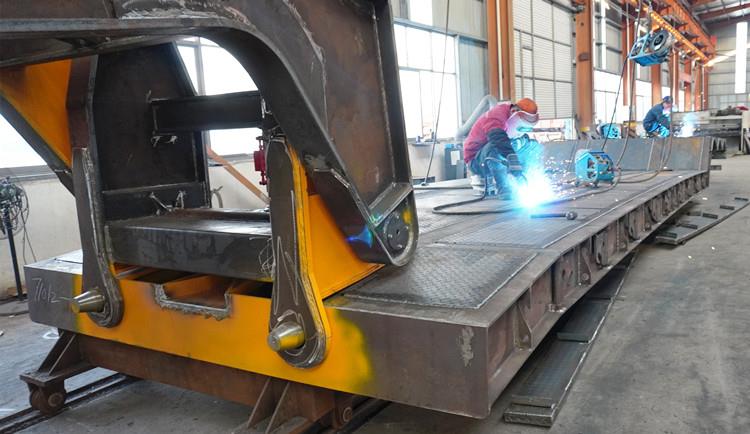

Detachable Trailer | Lowboy Gooseneck Trailer for Sale in TITAN factory
Through the video, you can know different types of detachable gooseneck trailer , 3 axle detachable gooseneck trailer for sale , hydraulic detachable gooseneck, etc.
Welcome to leave your enquiry! Thank you!
We'll meet the acme of perfection to serve and provide more details, price, drawings, videos for you!
