Different Parameters, Different Price. Price Reference Only.

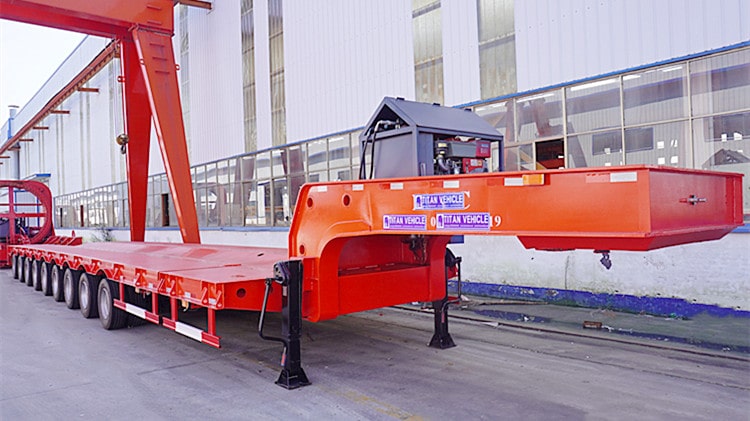

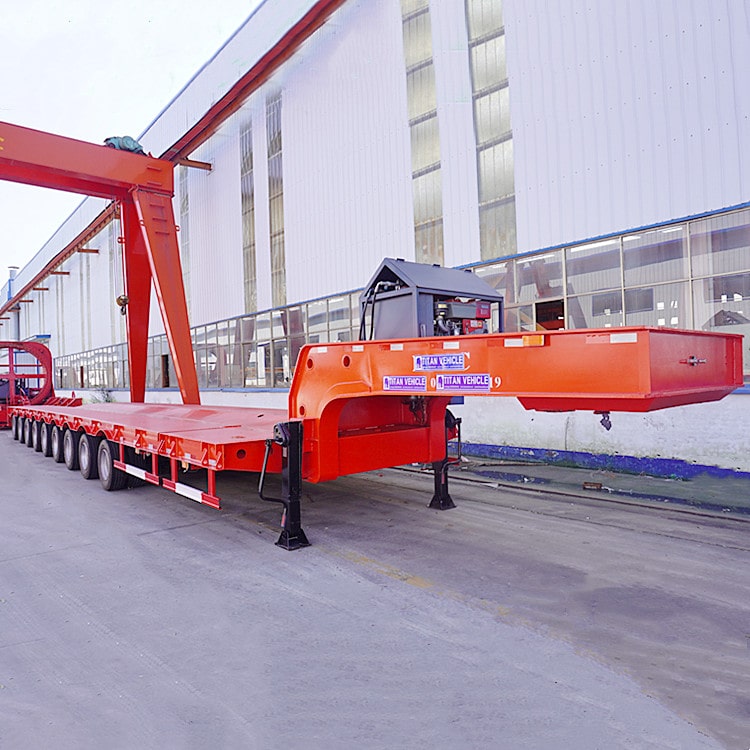

TITAN 9 axles Extendable Low Bed Trailer for transporting tower.TITAN extendable low bed excavator trailer is noted for their highly robust frames and outstanding stability of the extension beam.
TITAN 9 axles Extendable Low Bed Trailer for transporting tower.TITAN extendable low bed excavator trailer is noted for their highly robust frames and outstanding stability of the extension beam.
TITAN 9 axle extendable lowbed trailer use high strength steel material to ensure the capacity, the load can be up to 60 to 150 ton payload.TITAN designs and produces tower section semi trailer for hauling 30 meters to 35 meter wind tower.
After the mounting process, the wind tower mounting plate holes are precision machines to fit perfectly no matter what band or size, greatly reducing damage to the paint on the tower section.
9 Axle Extending Low Loader Trailers for Sale
9 Axle Extending Low Loader Trailers for Sale
9 Axle Extending Low Loader Trailers for Sale
Dimension(L*W*H): 19650mm X 3400mm X 1950mm ( closed state)
Deadweight without ramps: 28.5 Ton
Deadweight with ramps: 29.5 Ton
Frame: HG60 high strength steel frame
Loading capacity: 90 Ton
Length: 18,500mm at closed state; 33,500mm after total extended
Width: 2,990mm + 2 X 250mm side swing bracket
Height: 200mm+/-90mm
Axle: 9 Axles, one axle fixed and 8 axles steerable
Maximum steering angle: +/-25°
Tyre: 36 units, 215/75R17.5
Gooseneck: Hydraulic gooseneck
Suspension: Hydraulic lifting suspension (only for adjusting the platform levelling needed)
Hydraulic power station: 1 set,12Kw diesel engine
Loading Ramps: 1 set, detachable ramps
Landing gear: JOST C200
Operation 2 wireless remote control: + 1 control valve panel
Drawing of 9 Axle Extendable Lowbed Trailer

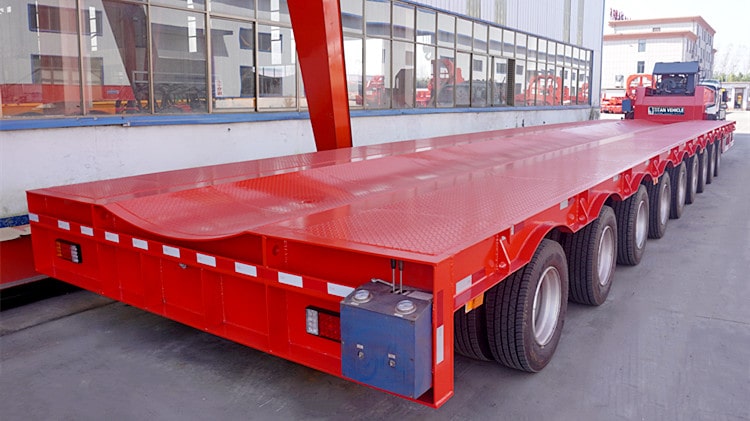

1. 250mm wideners are equipped on both sides of the load-bearing platform; the length of the load-bearing platform is 14.5m, with a 2-level tensile structure, which can stretch 7500x2 to meet the requirements of 29m after the freight platform is stretched;
2. The gooseneck is a power gooseneck, with a device for adjusting the height of the cargo platform and setting the steering part of the axle;

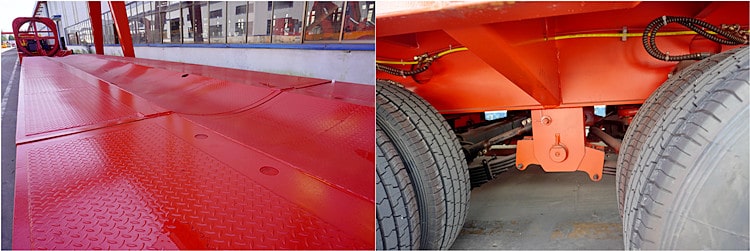

3. The suspension is hydraulic suspension, with lifting function, the force between the axles is balanced by the suspension cylinder, and it has the function of lifting the axle independently;
4. This car has 9 axles, and the axles include 8 active steering axles, 4 in the front and 4 axles in the back; The tires are 235/75R17.5;
5. The active steering axle is controlled by hydraulic cylinders.
