4 Axle 100T Hydraulic Gooseneck Trailer is a type of semi trailer which can be used to load heavy loads, transport excavators etc.
TITAN 4 Axle 100T Hydraulic Gooseneck Trailer for Sale also has a tighter turn radius. This lets you cut corners tighter than a bumper pull trailer and lets you maneuver the trailer in tighter spaces. This tight turn radius can be a double-edged sword, though. It takes a few tries to learn, and if you mess up you can take off the trailer’s fender, to say nothing of damaging street signs and other cars on the road.

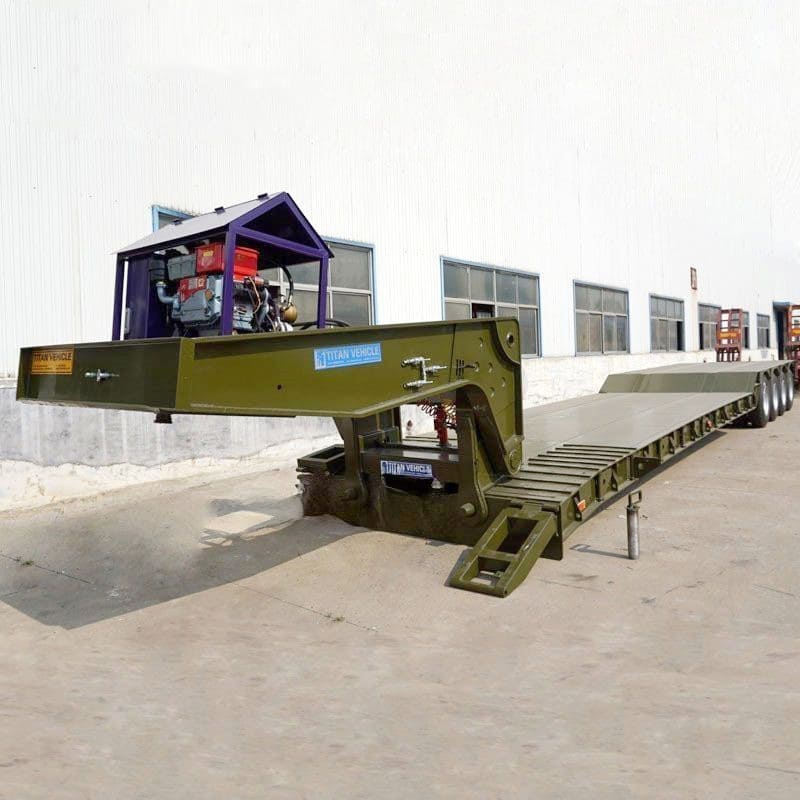

4 Axle 100T Hydraulic Gooseneck Trailer
Overall dimension: 17900mm * 2500+250*2mm *2200mm(platform 800mm)
Loading capacity(T): 50-150T
Axle: 4 axle; 13T/16T, FUWA / BPW / TITAN Brand
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

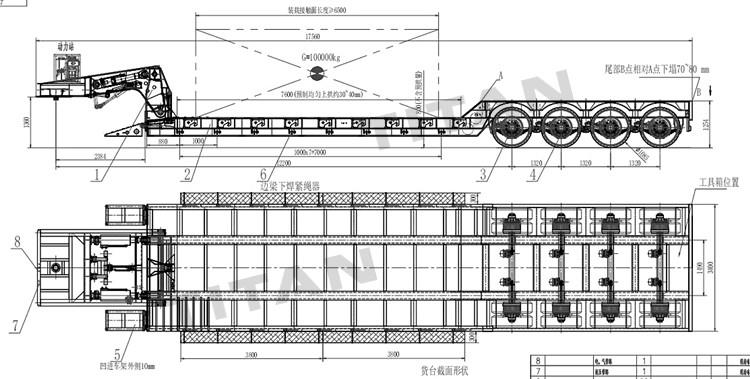

4 Axle 100T Hydraulic Gooseneck Trailer Drawing
Through this video, you can learn about different types of Hydraulic Gooseneck Trailer, as well as the process, testing, packaging and customer feedback, etc.
