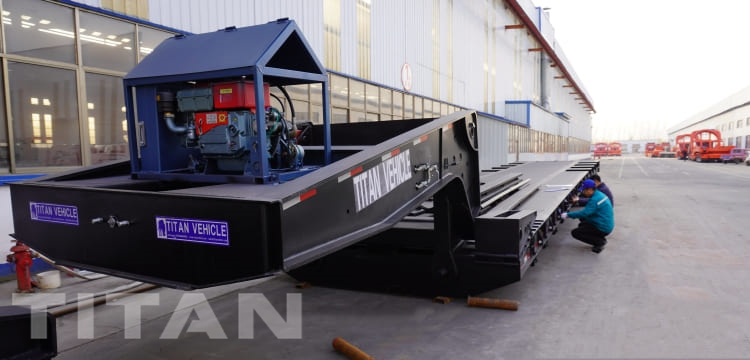

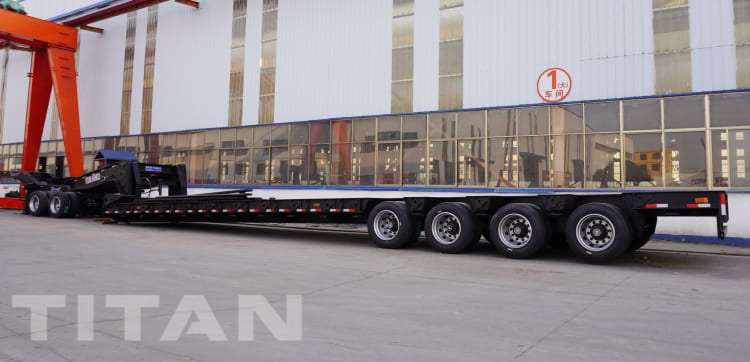

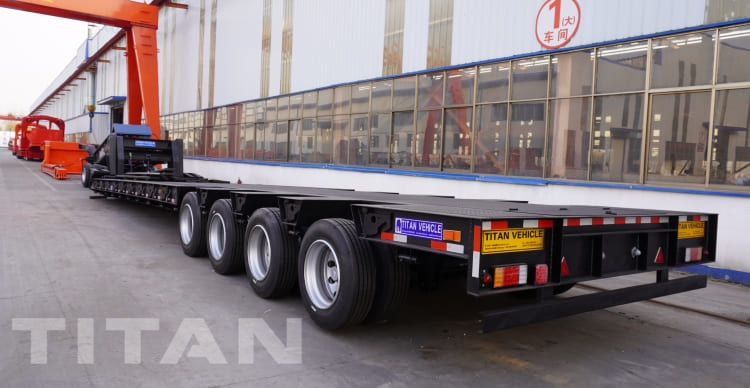

4 Axle 100 Ton Detachable Gooseneck Lowboy Trailer for Sale in Senegal
Senegal liked our detachable gooseneck lowboy trailer very much after he purchased our first lowboy trailer in February last year. He said that our 4 axle lowboy trailer has a strong load capacity, good quality and excellent adaptability to complex road conditions. So When he wanted to buy another 100 ton lowboy trailer to transport large machinery and equipment, he immediately contacted our company. Thanked customers for their trust in our company.
Our sales manager recommended for him the most suitable detachable gooseneck lowboy trailer, sufficient for his transportation needs. If you have special needs, TITAN can also be customized for you. The lower the platform height of the lowboy trailer, the better the stability and safety. Our lowboy trailer have great carrying capacity when transporting super high and heavy cargo, and can transport all kinds of heavy machinery and equipment, such as excavators, bulldozers, forklifts and more.
4 Axle 100 Ton Detachable Gooseneck Lowboy Trailer for Sale in Senegal
Many customers are curious about the manufacturing process of TITAN's detachable gooseneck lowboy trailer? So next, I will explain the whole production process of the lowboy trailer in detail for you.
First, after the customer places the order, our sales staff will confirm with the customer the specific size and details that the customer wants, and then the factory will first determine the appearance parameter drawings and parts cutting drawings according to the customer's needs.

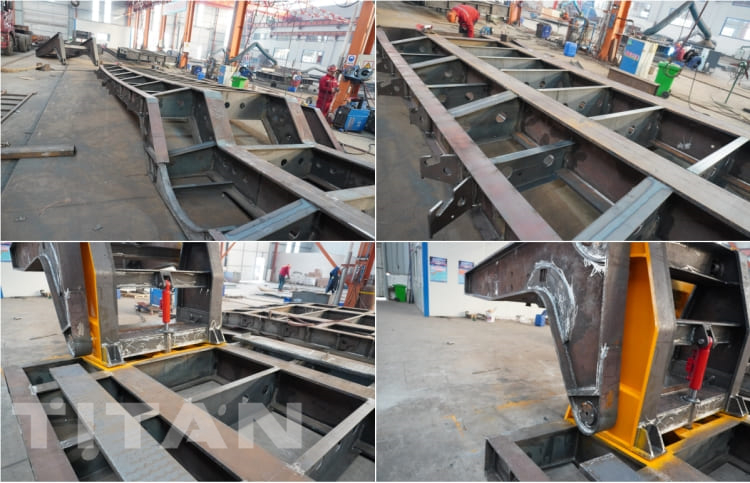

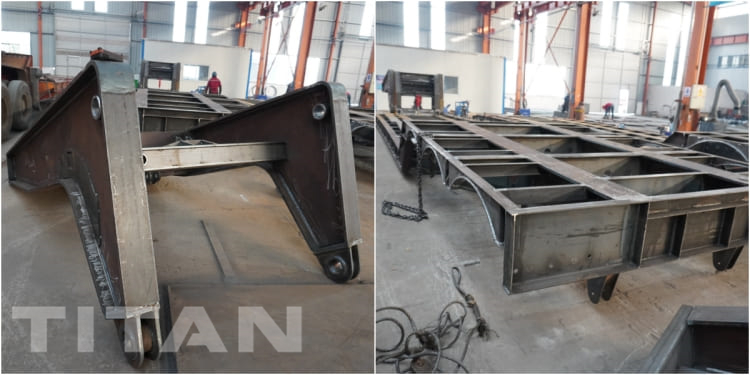

Then cut out the upper, middle and lower vertical plates required by the girder and the side beam, as well as the cross beam, and the required parts according to the needs, and then weld and assemble the upper, middle and lower vertical plates of the girder and the side beam. After assembling the main beam and the side beam, the general frame of the 4 axle lowboy trailer is spliced out, and the main beam, the cross beam and the side beam are welded into one.
4 Axle 100 Ton Detachable Gooseneck Lowboy Trailer for Sale in Senegal
Next, the upper bottom plate is welded, and the gooseneck part and the bottom plate are assembled together. TITAN detachable gooseneck lowboy trailer plate is 5mm patterned plate, which is thicker than the 4mm plate used by other factories. The plate is strong and durable, and not easy to be deformed.
At this time, the most important part of a detachable gooseneck lowboy trailer is basically assembled and welded. Next, the suspension system is welded, manually polished to remove welding slag, sandblasted to remove rust, and sprayed with primer and topcoat. TITAN 100 ton lowboy trailer with polyurethane paint, high adhesion, high chrominance, beautiful color, the cost of ordinary paint is twice. So the paint won't come off after five years.
4 Axle 100 Ton Detachable Gooseneck Lowboy Trailer for Sale in Senegal
After the welding and assembly of the detachable gooseneck lowboy trailer body is completed, assemble the lower disc, for example, assemble the axle, leaf spring, and pull arm together, and then install the tire. The next step is to assemble the lowboy trailer, combining the painted body with the axles and tires.
Then connect the circuit and air circuit combination, including the installation of the brake air pipe, the installation of the brake valve; the installation of the electric wire and the installation of the lamp, the last step is to test the performance of the lowboy trailer, to test whether the air circuit and the braking system work normally, and to eliminate potential safety hazards. TITAN can guarantee to provide customers with the best quality lowboy trailer.
4 Axle 100 Ton Detachable Gooseneck Lowboy Trailer for Sale in Senegal

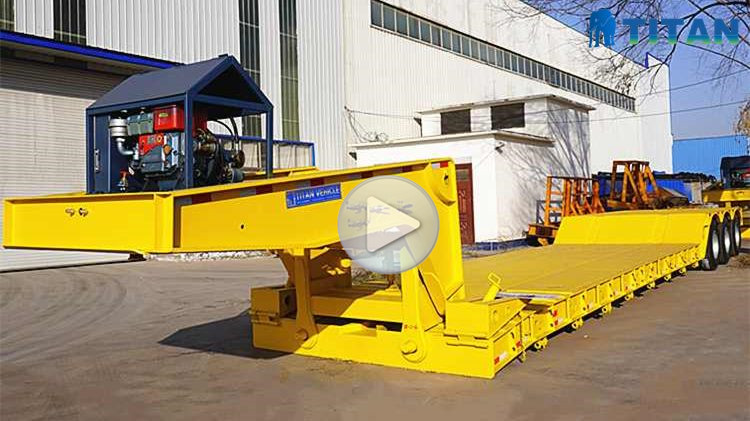

Video of detach lowboy trailer
Welcome to leave your enquiry! Thank you!
We'll meet the acme of perfection to serve and provide more details, price, drawings, videos for you!
