Different Parameters, Different Price. Price Reference Only.
Heavy Haul Trailer For Sale can load more widen heavy machines, like the bulldozer, excavator etc.TITAN Low Bed Trailer Price is very competitive.

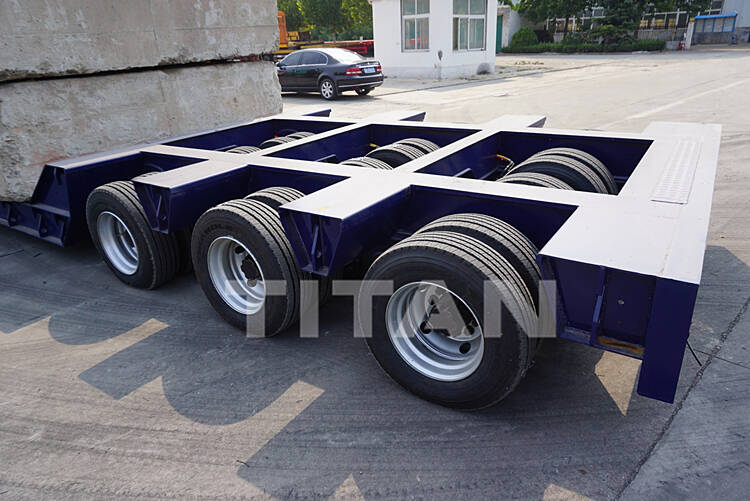

Heavy Haul Trailer has widened 300mm pipe at both sides. So, the load bed trailer can load more widen heavy machines, like the bulldozer, excavator, etc.
The height of the tires is lower than the working platform, which makes the height is lower than the normal low bed truck trailer. This lower low bed vehicle is easy to load or unload the heavy machines.

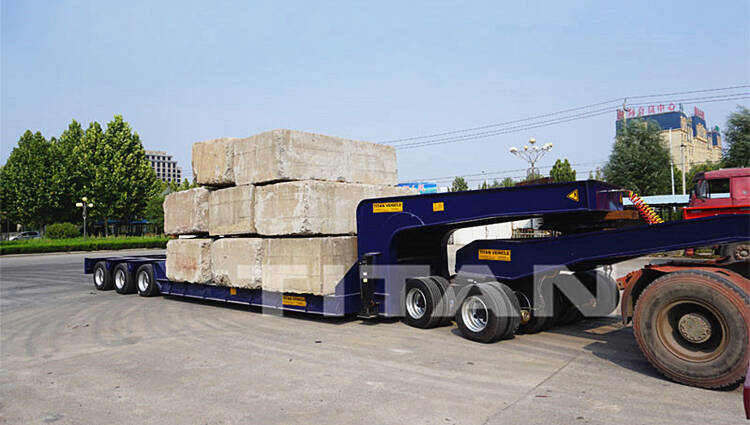

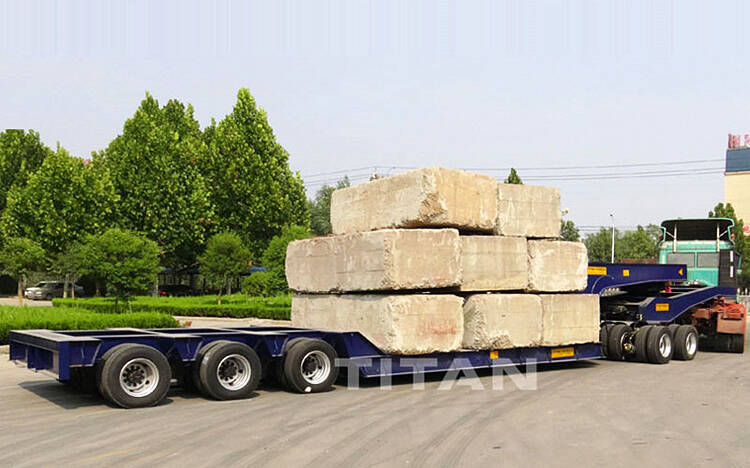

3 lines 6 axles low bed truck trailer loading test
The low bed vehicle for Zimbabwe
The load bed with 2 axles dolly trailer
Overall dimension: 15800mm * 3000mm *3400mm
Loading capacity(T): 120-150T
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20
Tire: 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: Spring ramp
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Save money with an electrophoretic low bed vehicle trailer
Rusty low bed truck trailer and floors must be repaired with paint. In order to save money, I want to solve them myself.
But a large area of paint is peeled off, and the surface of the steel plate is damaged, how to solve it? we have to find the professional people to repair. Not only delays the work, but also put in the repair fee to paint money, not worth it!
TITAN trailer, the normal use of paint can be guaranteed for 7 years without corrosion. This is the power of the electrophoresis trailer!
Through this videos, you can learn about different types of lowbed semi-trailers,like 2axle,3axle,4axle lowbed semi trailer,hydraulic ladder lowbed semi trailer,etc.As well as the process, testing, packaging and customer feedback, etc.

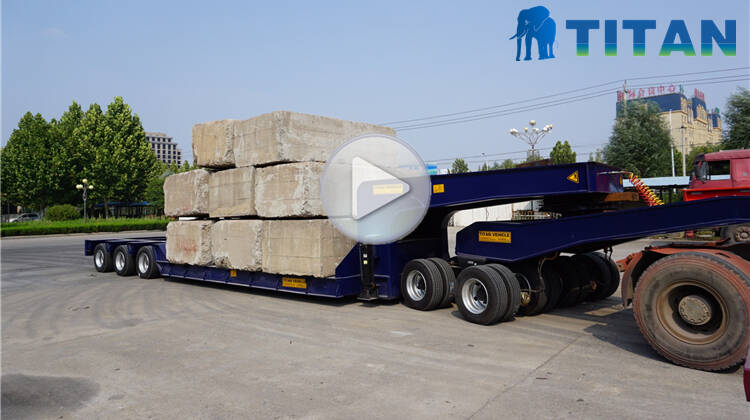

150 ton low loaders 3 line 6 axles Lowbed Trailer with dolly details display video
