Different Parameters, Different Price. Price Reference Only.
Low Bed Trailer For Sale are usually used in heavy machines transportation. Heavy Duty Equipment Trailer uses electrophoretic spraying process.
Low bed trailer for sale suspension width is 120mm, thickness is 10mm, and rotation pin of suspension we use 70mm. Ensure heavy duty equipment trailer have high loading capacity, and increase its capacity to twising forces, shock, bump.
Also we can customize the low deck trailer for you. Like multi axle heavy load trailers, 100-120 ton 3lines 6axles low bed loader, or 150 ton 4 lines 8axles lowbed semi trailers.
Low Bed Trailer For Sale | Heavy Duty Equipment Trailer-TITAN VEHICLE
Overall dimension: 16000mm * 3000mm *3400mm
Loading capacity(T): 120-150T
Axle: 5 axles
Rim: 8.0-20
Tire: 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: Spring ramp
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Currently, trailers on the market are basically using traditional manual painting methods. This method is simple in process and low in cost, so the general quality trailer will use artificial painting.
Electrophoretic coating not only has strong adhesion to the coating, but also the whole vehicle is soaked in the electrophoresis tank. The coating has strong anti-rust ability, which can effectively protect the steel structure of the frame and be more durable.
After the electrophoretic coating , the paint surface is even and thin.
Although the electrophoretic coating seems to be very simple, its technical means are much more complicated than ordinary painting.

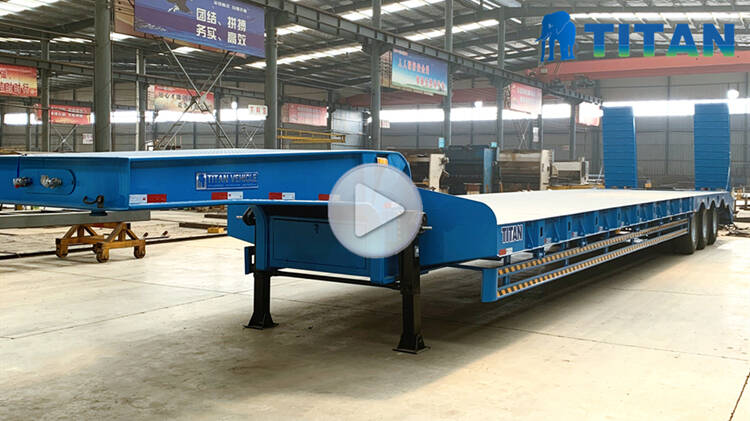

Through this videos, you can learn about different types of lowbed semi-trailers,like 2axle,3axle,4axle lowbed semi trailer,hydraulic ladder lowbed semi trailer,etc.As well as the process, testing, packaging and customer feedback, etc.
