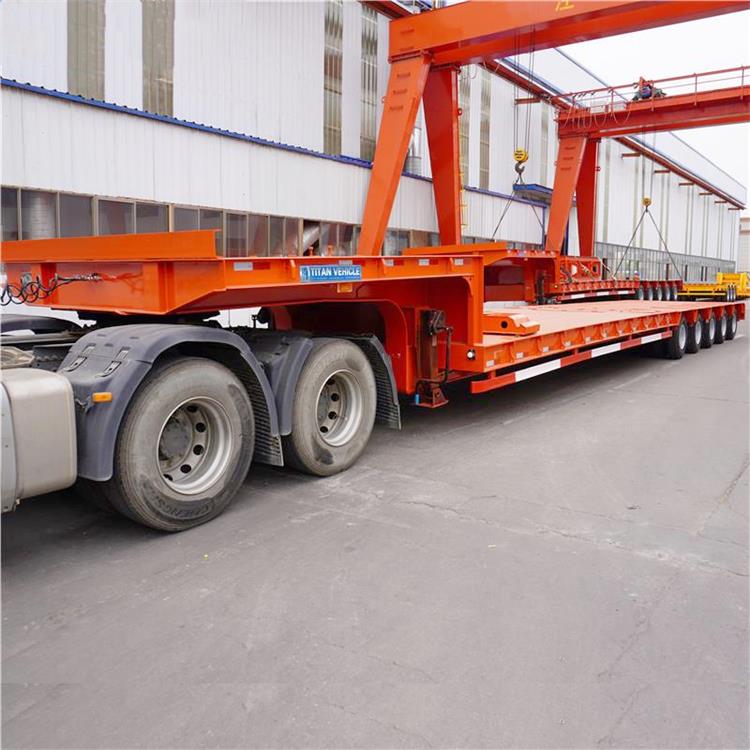

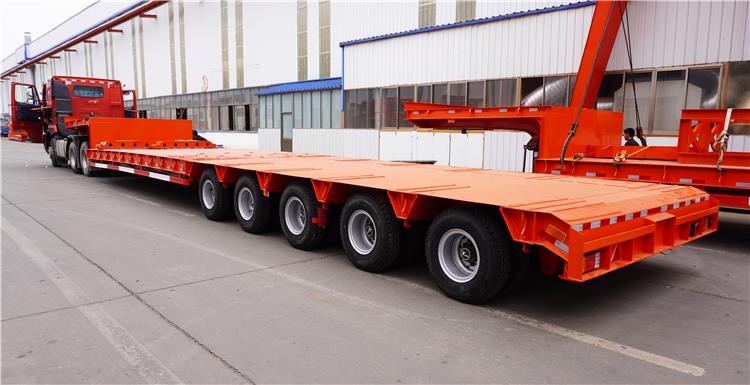

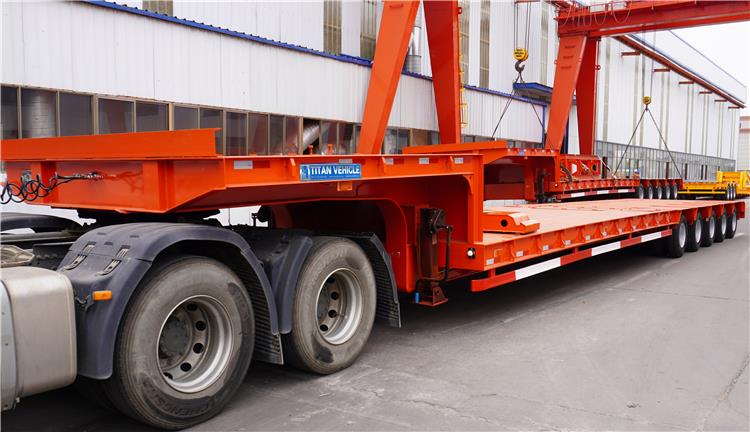

5 Axle Step Deck Trailer

5 Axle Step Deck Trailer Product description:

5 Axle Step Deck Trailer is widely used in heavy machines transportation. The 5 Axle Step Deck Trailer has all the same versatility as a flatbed trailer, but has a lowered deck to accommodate for a taller cargo height. This gives it an extra boost in the height that it can securely transport.

5 Axle Step Deck Trailer can have one step, where the deck drops and stays flat until the end of the trailer, or a double drop, where the deck drops below the axle height and steps back up over the axles at the end of the step deck trailer.

5 Axle Step Deck Trailer for Sale in Botswana

Specification：

Overall dimension: 13000mm * 3000mm *3400mm

Loading capacity(T): 40-100T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: hydraulic type

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)
