Chapter 1: What is a low bed trailer?
Chapter 2: Advantage of TITAN low bed truck trailer
Chapter 3: Application of low bed trailer for sale
Chapter 4: What is the main advantage of a low bed trailer over a flat bed?
Chapter 5: Components of the low bed trailer price
Chapter 6: Package and delivery of low bed trailer for sale
Low bed truck trailer is a heavy-duty vehicle that is to transport heavy, wide, and tall cargo. Low bed trucks are used in different industries: heavy vehicles, rail vehicles, mining machinery, forestry machinery, construction, agricultural, etc, We can customize the low bed truck for you according to your needs.
Low bed trailers also can transport all categories of heavy loads. such as finished products from these industries are packed in containers and stacked on low bed truck trailer for transportation. The transporters can move stacks of heavy cargo without toppling over. So, we also usually choose low bed semi trailers to transport heavy goods.

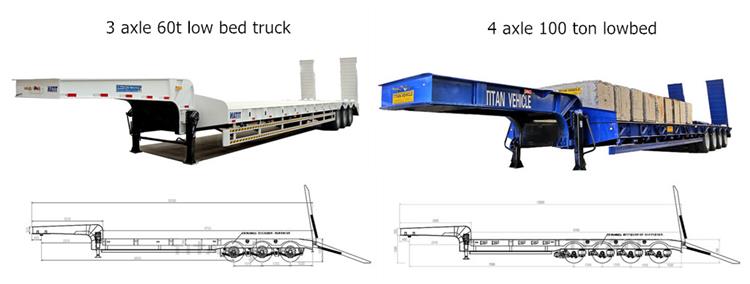

3 axle 60 ton low bed truck trailer VS 4 axle 100 ton lowbed trailer
1. Main Beam
The main beam of TITAN low bed truck trailer is made of Q460C high strength structural steel. Q460C steel has a yield strength of ≥620Mpa, which is more durable and stronger than ordinary steel. Its bearing capacity is 5 times that of the trailer made of Q345 steel.
TITAN low bed trailer main baem adopts a height of 500mm and a thickness of 14mm. The thickness of upper plate is 22mm, the thickness of lower plate is 22mm and the width of upper and lower plate is 220mm.
Other factories use Q345 steel main beam for the low bed truck trailer. The width of the upper and lower plates is 140mm. The load-bearing capacity of the frame is 27% lower than that of TITAN.

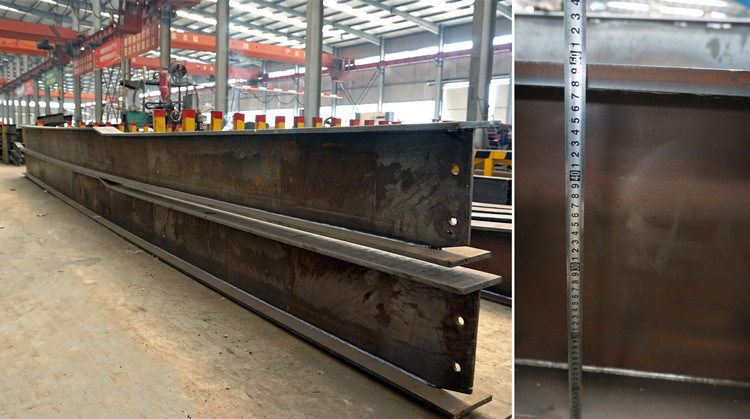

TITAN low bed truck trailer main beam - 500mm height
2. Side Beam
The side beam adopts "H" shape design and is welded with T700 high strength steel and it is designed H shape with a height of 300mm, width of 140mm and thickness of 8mm. Its bearing capacity is twice that of other steel, and it will not deform after ten years of use. Anti - turbulence ability increased about 3 times.

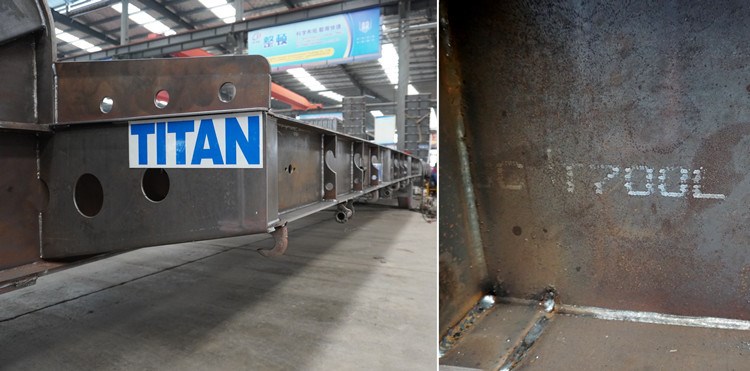

Side beam of low bed truck trailer - T700 high strength steel
3. Side support
The beam design, our side support beam use Q460C high strength structural steel. The thickness is 6mm, and the inclined support is Q460C with a thickness of 6mm. Effectively connect the main beam and side beam together as a whole. Bearing capacity anti - turbulence capacity greatly increased, the service life more than 10 years.
All trapezoidal scales for the whole vehicle, G-type scales (higher strength than ordinary C-type scales) are used for the vehicle weighing less than 80 tons.

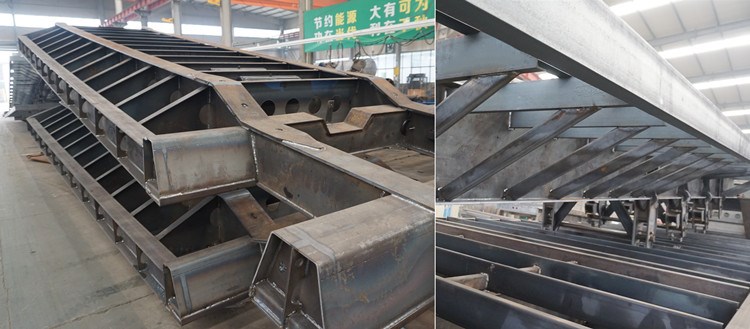

TITAN low bed truck trailer side support
4. Ramp of low bed truck
The ramp of low bed truck trailer is welded with H60 steel of high strength steel plate, which has strong bearing capacity and effectively ensures that the weight of excavator or other heavy equipment can pass through the spring ramp without deformation or damage.
The low bed truck trailer ramp adopts four-in-one high-strength board, which has high strength, durability and no deformation. Using high elastic double spring climbing ramp, ordinary people can easily lift with one hand, which is more convenient to operate.
The service can up to more than 5 years, other factories use channel steel welding, it is easy to deformation collapse.

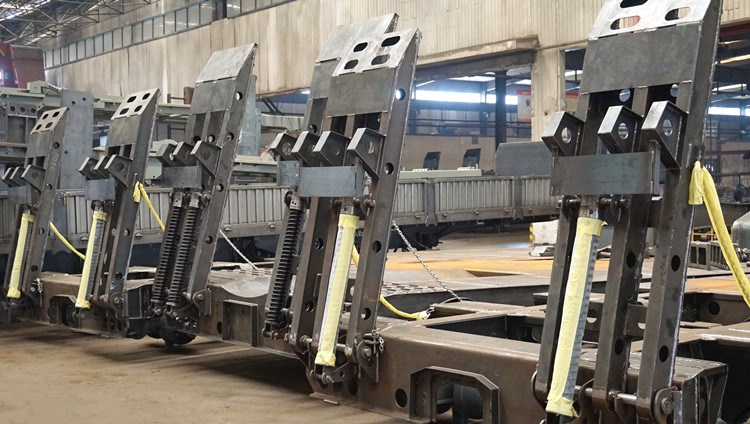

Ramp of TITAN low bed truck trailer for sale
5. Gooseneck of low bed trailer
TITAN low bed trailer main beam gooseneck lower has a reinforcement, gooseneck double plat. The trailer in the heavy load when the deformation range is very small, better to use.

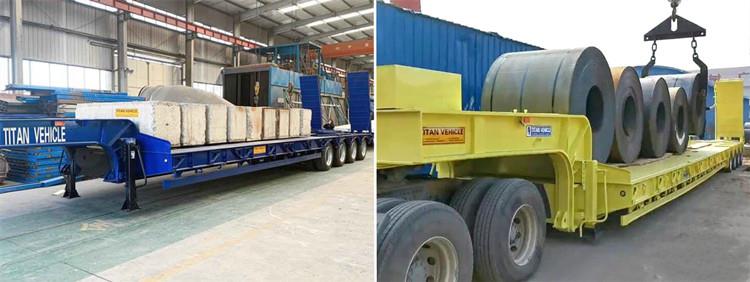

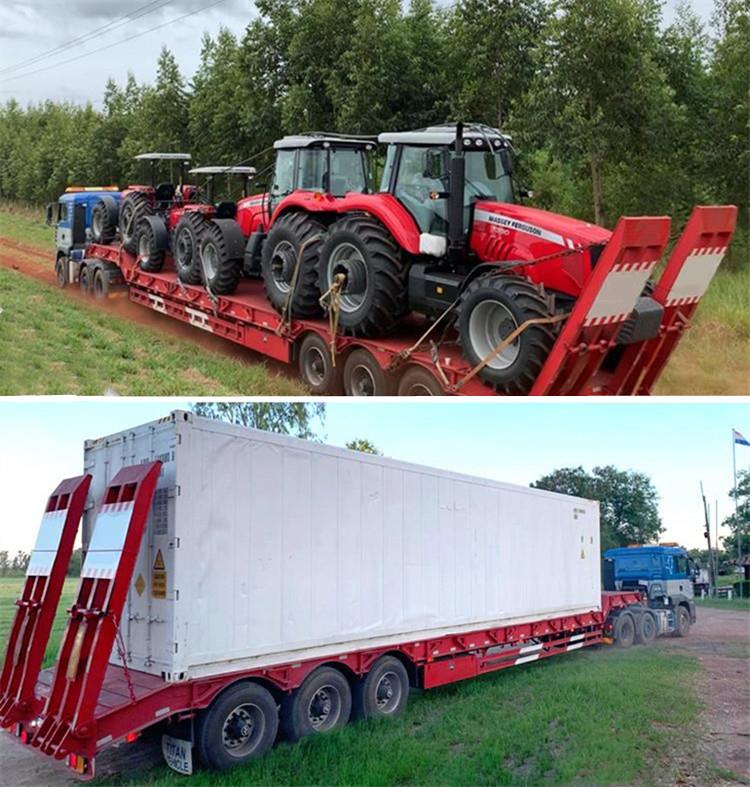

Low bed truck trailer is used to transport heavy objects in different industries. This is the most common use for low bed truck trailers.
Construction machinery transport:
Low bed semi trailer is most often used to transport excavators and other construction machinery. Heavy load low bed trailer for sale is usually used in the construction of roads and bridges.
Certain construction equipment and blocks cannot be transported by ordinary semi-trailers. Low bed trailer is used to transport concrete blocks to the construction site. The block is not only heavy, but also large. Construction workers use low bed trailers to transport bulk materials such as cement and beams.
Agricultural machinery transport:
The main agricultural machinery transported by lowbed trailer include loaders, excavators, bulldozers, cranes and pavers. Low bed truck price can sail through muddy agricultural farms and transfer machinery from one farm to another.
Mining machinery transport:
Mining requires heavy machinery to drill and transport materials including crude oil and minerals. The machinery is assembled off-site and then transported to the mining site using lowbed trailer truck.
Heavy duty low bed trailers are preferred because of the structure of mining machinery. Mining equipment may be the heaviest cargo that a machine manufacturer transports on the road.
Heavy vehicles transport:
Vehicle manufacturers use low bed trailer price to transport heavy vehicles from one showroom to another. And move vehicles from ports to showrooms and sometimes to customers.
Some of the heavy vehicles transported by low bed trailer for sale include buses, tractors and special vehicles. Lowbed truck trailer can transport piles of small vehicles at the same time.
Rail vehicles transport:
There are different categories of rail vehicles, including road rail vehicles, trucks, locomotives and trams. The common feature of these vehicles is that they are bulky. Low bed trailer is one of the best ways to transport railway vehicles.

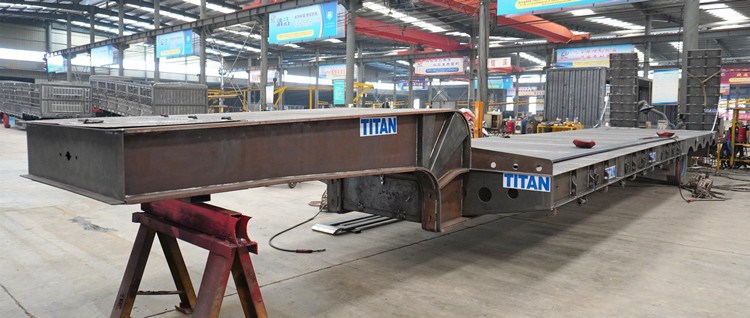

Frame of TITAN low bed truck trailer for sale
Low bed truck trailers are widely used in different fields due to their advantages over a flat bed. The main advantages are summarized below.
Meet height restrictions
Some countries have laws restricting the height of goods that can be transported on the road. Loading tall equipment on trailers is often a huge challenge for transportation companies.
Low bed truck trailer provide companies with a solution to safely transport ultra-high equipment without breaking the law.
Versatility
One of the reasons why many companies buy low bed trailers is that they are so versatile. The structure of the low bed trailer allows the company to easily transport such a wide cargo. Keep in mind that trailers can also handle ultra-high cargo.
In most cases, heavy machinery and equipment are very wide. A company that handles different types of goods does not need to buy different trailers for each category. As long as the goods are packaged correctly, the low bed truck trailer can transport any type of goods.
Stability
Compared with flat bed trailer, low bed trailer’s deck is excellent. A lower deck means a lower center of gravity. Therefore, low bed truck is more stable than trailers when transporting heavy goods.
One way to increase stability is to expand the support base. For low bed trailers, this is possible because the width of the cargo plane can be widened. Regardless of the height and weight of the cargo, the trailer can remain stable on the road.

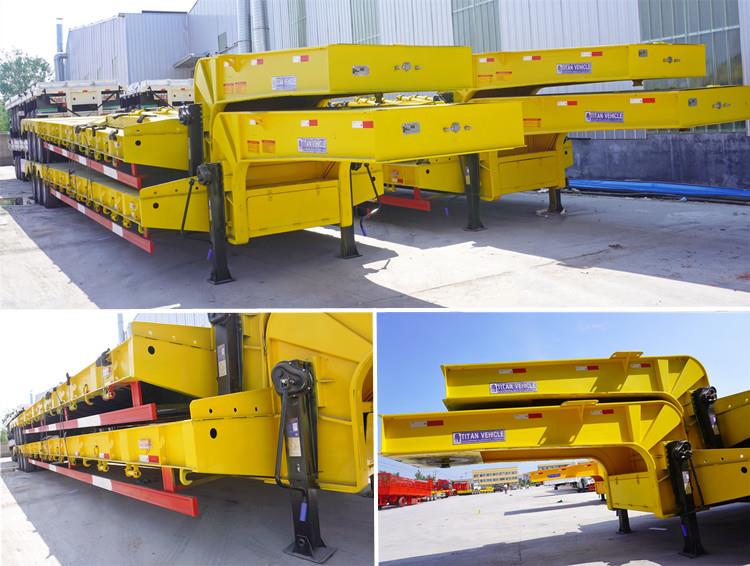

4 units low bed truck trailers package
Suspension system: transfer load and absorb vibration.
Axle and hub system: A single, two and three axle assemblies of the same structure are installed under the suspension system.
Landing gear lifting system: In order to make the low bed trailer price reliably parked after being separated from the truck, the front end of the frame is provided with two linkage or single action landing gear. It consists of a screw drive mechanism, a bevel gear drive mechanism, a two-speed reduction gearbox, a transmission rod, an operating handle, and so on.
When the handle is pushed in, the rotation can be raised and lowered at high speed, and when the handle is pulled out, the rotation can be raised and lowered at low speed. When the outriggers touch the ground, they can only be raised and lowered in low gear.
Traction pin: There is a traction pin connection plate connected to the tractor saddle at the lower part of the front end of the frame. The traction pin is mainly used to transmit the traction of the tractor and the braking force during braking.

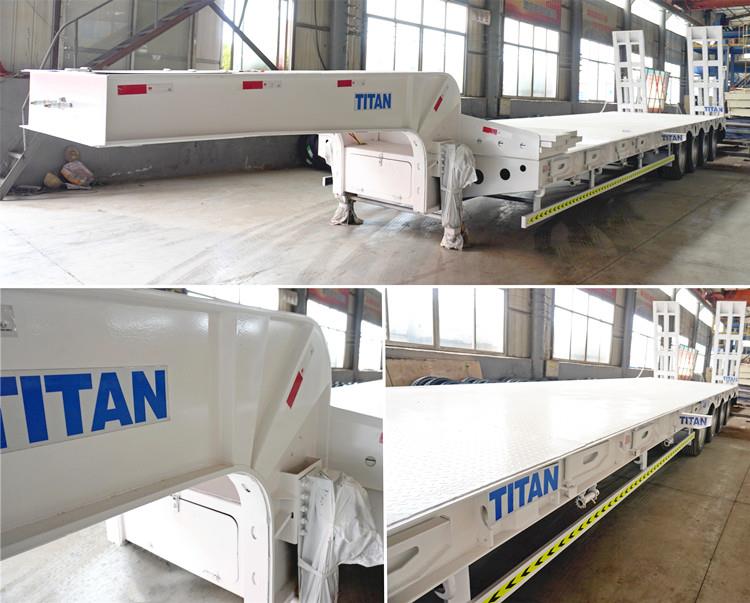

Details of 4 axle 100 ton low bed truck trailer
Ramp: There are three styles of low bed trailer price ramps, the most common is spring ladders. There are also ordinary hydraulic ramps and folding hydraulic ladders.
Semi trailer braking system: It is composed of the trachea connector, inflation pipe, operating channel, gas reservoir, brake air chamber, relay valve, ABS valve, ABS sensor and wheel brake of the tractor.
The inflatable tube is connected to the tractor’s gas tank through a quick pipe joint; it is connected to the tractor’s brake valve through a quick joint. When the low bed semi trailer brakes, each brake air chamber functions simultaneously.
Semi trailer airway: Three major parts: emergency relay valve, ABS valve, brake air chamber, most of the faults come from these three pieces.
Semi trailer circuit: The low bed semi trailer transmits the light signal of the main vehicle to the trailer by connecting the spiral cable plug of the truck to the circuit socket at the front of the trailer. Thus, the vehicle equip with an international general electrical system that matches the truck. The electrical system generally consists of seven core sockets, multi core cables, junction boxes, waterproof connectors, and various types of lamps and other components.
As a professional manufacturer, TITAN have provided many kinds of low bed trailer for sale for many countries, we have much more advantages in the low bed trailer price and quality control.
After the trailer is produced, all of TITAN low bed truck for sale are tested to ensure that our low bed trailers are free of problems. All low bed truck for sale is tested for carrying capacity after production is finished. TITAN has dedicated technical staff to guide the operation.
Testing of low bed truck for sale
When transporting tri axle low bed trailer and 4 axle low bed truck trailer for sale, many customers choose bulk carriers or ro-ro ships, which has low transportation costs and short transportation time. When the lowbed truck trailer size is small, some customers choose to use container transportation.
TITAN low bed trailer have professional staff to make a package, all of them were trained constantly. Please notice that to prevent the low bed trailer truck paint from being corroded by seawater to we spray a layer of wax on the surface of the low bed semi trailer before shipping. And covering poncho to prevent the damp condition.

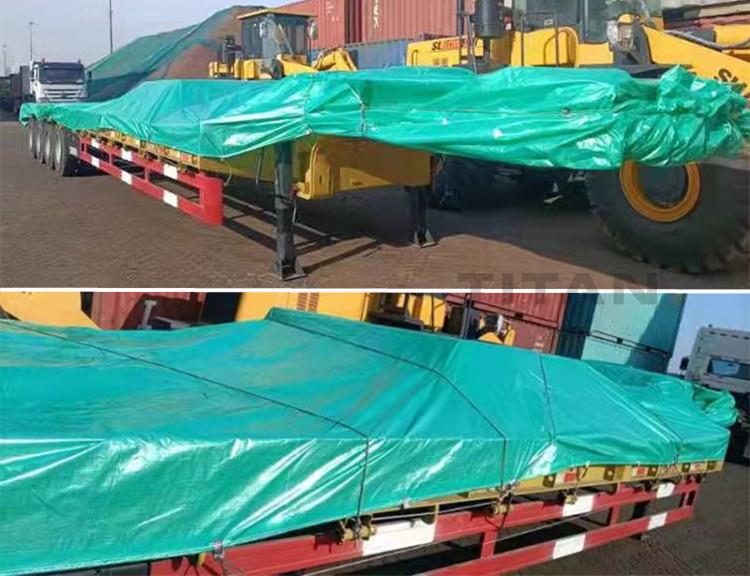

Package of 4 axle low bed truck trailer price
