Low Bed Trailer use quality materials and unique designs. Greatly improved service life and load carrying capacity of excavator trailer for sale.
4 axle lowbed semi trailer use high strength steel material to ensure the capacity, the load can be up to 100 to 120 ton payload.
We adopt famous brand parts, like WABCO braking valve, JOST legs, FUWA, BPW axles. This’ll ensure the long service life of the trailers.

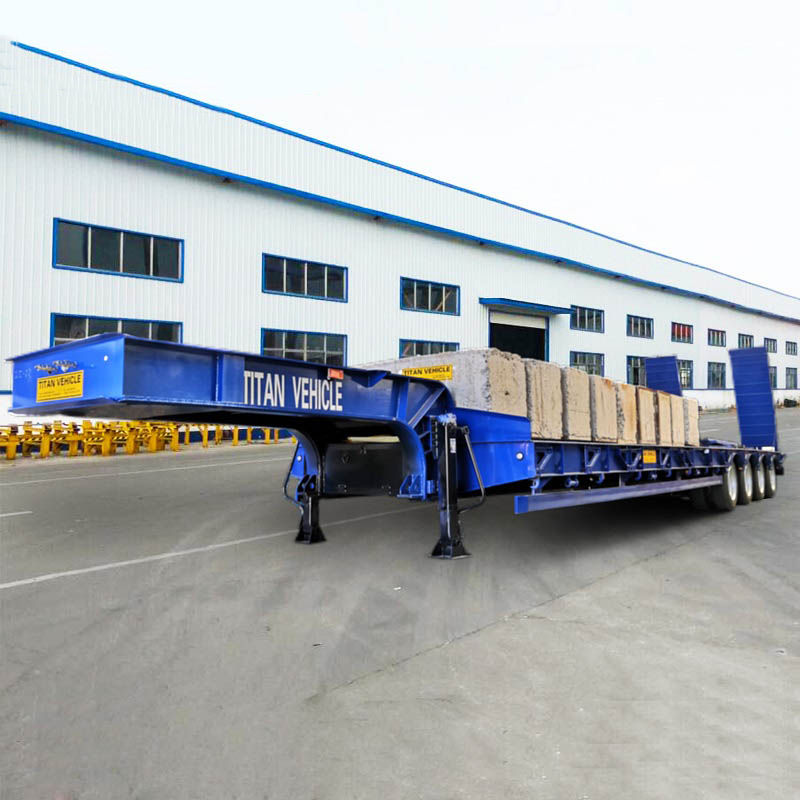

TITAN 4 axle lowbed semi trailer for sale
120 ton low loader semi trailer
1. Main beam adopts HG high strength steel, with high loading capacity.
2. Side beam adopt “H” steel, the durable design avoid the side beam to have the deformation.
3. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.
4. polyurethane paint, with long service lift, and avoid the vehicle get rust.
5. World famous brand spare part, ensure high quality and save costs.
Loading capacity ：100-120 ton
Overall dimension：18500mm * 3000mm *3465mm
Axles：4 axles
Suspension：Heavy duty mechanical spring suspension
Tire：16 units
King pin：90#
Langing gear：JOST
Brake system : WABCO
Electical system：24V, LED lights
Through this video below, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

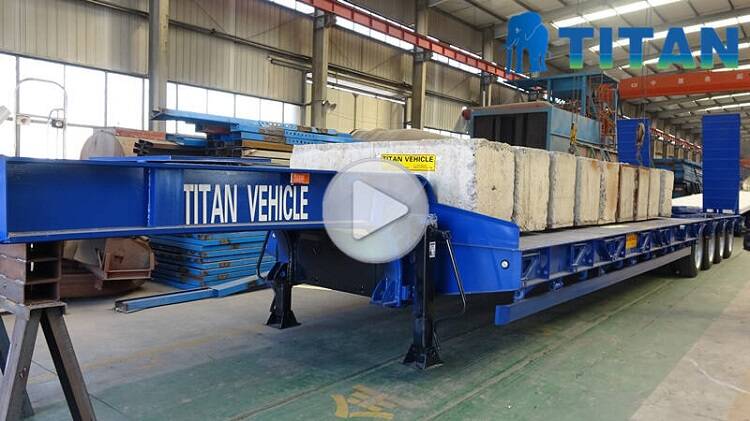

4 Axle 100 Ton Lowbed Semi Trailer details display video
