100 ton folding neck lowboy trailers for sale is widely used for transporting construction machines no matter they are with tires of crawlers or not.
Folding neck trailer for sale is a kind of front-loading trailer, different from the RGN trailer, you can load the trailer from the front of the trailer but no need to dismantle the gooseneck from the trailer body. It is widely used for transporting construction machines no matter they are with tires of crawlers or not.
The gooseneck of this folding neck lowboy trailers for sale is a design with a hydraulic folding structure. When the structure folded, it’s a gooseneck to connect the folding neck lowboy for sale with the prime mover. The semi trailer’s neck could be folded to ground as a shallow slope for crawler crane and other machines to drive on.

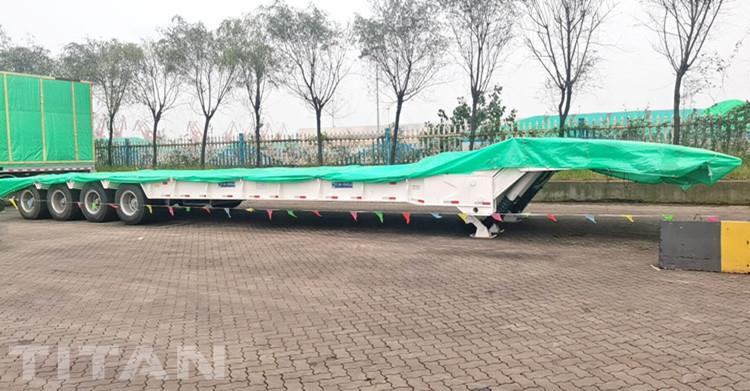

Folding Neck Lowboy Trailer for Sale with 100 Ton Capacity
Folding Neck Lowboy Trailer for Sale with 100 Ton Capacity
Dimension: 18000mm x 3800mm x 1800mm
Working platform: 14000*3800MM
Loading capacity: 100 TONS.4 AXLES,16TONS.
Gooseneck: hydraulic folding gooseneck.
Side hook for chain or belt
Checkered plate with 20 mm squre bar on ramps
Axle: 4 Axle
Tire: 16 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Tare weight: About 9.5-19T
Hydraulic cylinder: 12KW diesel engine with hydraulic station
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
After the production of all folding neck trailer for sale, pressure tests will be performed.
To prevent the folding neck lowboy trailer for sale paint from being corroded by seawater, we spray a layer of wax on the surface of the folding neck trailer for sale before shipping, and then seal it with a waterproof rain cloth.
Through the video, you can know different types of folding gooseneck trailer , 4 axle hydraulic folding gooseneck trailer , 100ton folding gooseneck trailer for sale.
Welcome to leave your inquiry!
We will provide more details, price, catalog, drawing, videos for you!
