Folding neck lowboy trailers for sale is a kind of front-loading trailer, you can load the mechanical gooseneck from the front of the trailer but no need to dismantle the gooseneck from the trailer body.
Folding neck lowboy trailers for sale is a kind of front-loading trailer, you can load the mechanical gooseneck from the front of the trailer but no need to dismantle the gooseneck from the trailer body.

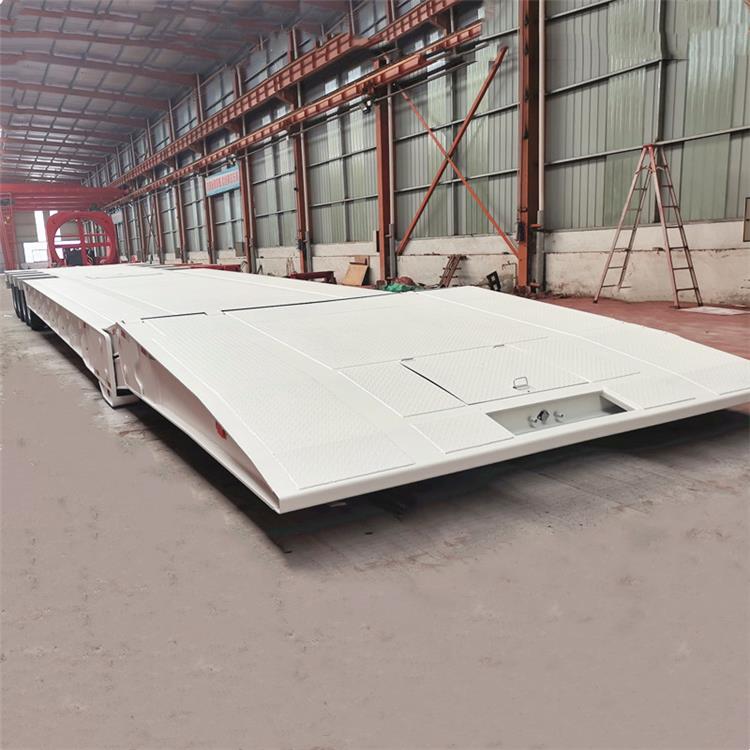

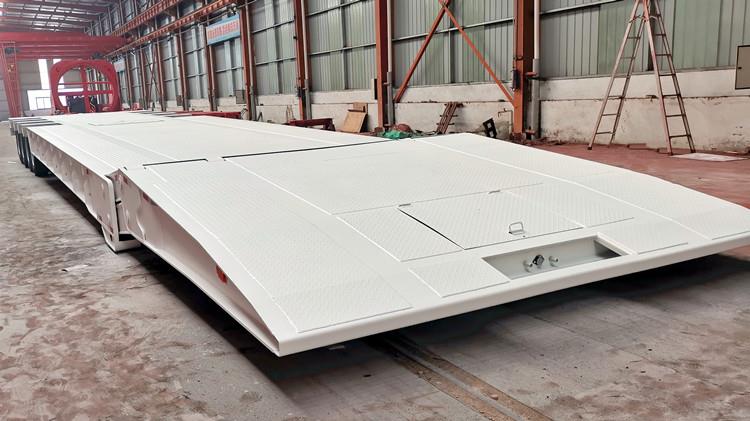

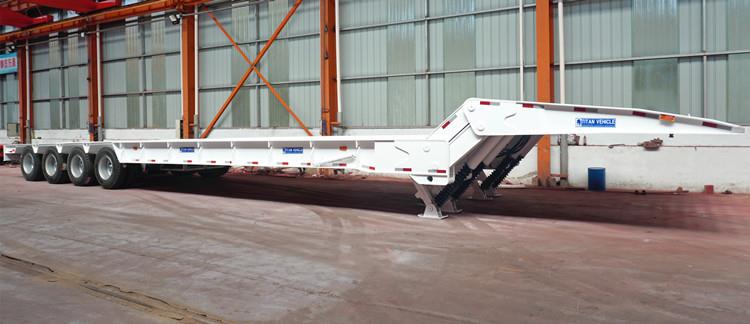

The gooseneck of this folding neck lowboy trailers for sale is a design with a hydraulic folding structure. When the structure folded, it’s a gooseneck to connect the folding gooseneck lowboy with the prime mover. The mechanical gooseneck trailer’s neck could be folded to ground as a shallow slope for crawler crane and other machines to drive on.
Mechanical Gooseneck | Folding Neck Lowboy Trailers for Sale
Mechanical Gooseneck | Folding Neck Lowboy Trailers for Sale
Mechanical Gooseneck | Folding Neck Lowboy Trailers for Sale
Dimension: 18000mmx3800mmx1800mm
Working platform: 14000x3800mm
Loading capacity: 100 ton
Gooseneck: hydraulic folding gooseneck
Side hook for chain or belt
Checkered plate with 20 mm squre bar on ramps
Axle: 4 axle
Tire: 16 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Hydraulic cylinder: 12KW diesel engine with hydraulic station
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
One end of the connecting rods hinged with a traction gooseneck(front part of the gooseneck), another end hinged with the lowbed trailer.

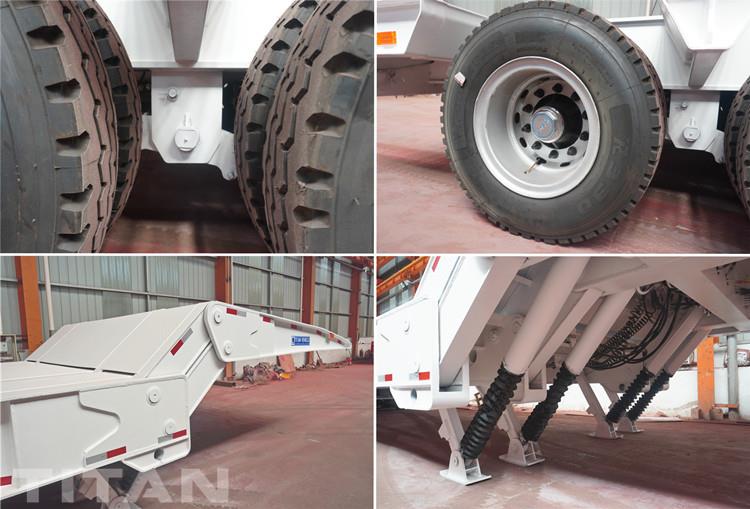

The hydraulic cylinder is articulated with a cylinder base and a support base. The cylinder base is welded with the front part of the mechanical gooseneck. There is a rubber anti-skid cushion under a supporting base to stable the folding gooseneck trailer for sale during transportation. Two cylinders are designed in the gooseneck to increase safety, balance, and stability.
The function of folding is realized by hydraulic cylinders and connecting bars which deployed inside the gooseneck. Connecting bars connect parts of the gooseneck and trailer body in an articulated (hinged) way. Folding neck lowboy trailers for sale has hydraulic cylinders connecting trailer chassis and connecting rods in the neck. The number of cylinders can be 2 or 4 units. After the neck folded or unfolded, we can use limited block(stop block) to lock the neck.
Through the video, you can know different types of folding gooseneck trailer , 4 axle hydraulic folding gooseneck trailer , 100ton folding gooseneck trailer for sale.
Welcome to leave your inquiry!
We will provide more details, price, catalog, drawing, videos for you!
