The 120 ton hydraulic detachable gooseneck trailer for sale is mainly separated or hooked by manually operating the hydraulic device mounted on the goose head, so as to reach the construction machinery from the front of the detach gooseneck trailer.
The detachable gooseneck trailer is mainly separated or hooked by manually operating the hydraulic device mounted on the goose head, so as to reach the construction machinery from the front of the detach gooseneck trailer.
This kind of detach trailer for sale is mainly suitable for the transportation of large construction machinery with small climbing ability. It solves the shortcomings of the current ladder slope angle is too large and poor passability existing in the rear loading and unloading of the lowbed trailer.

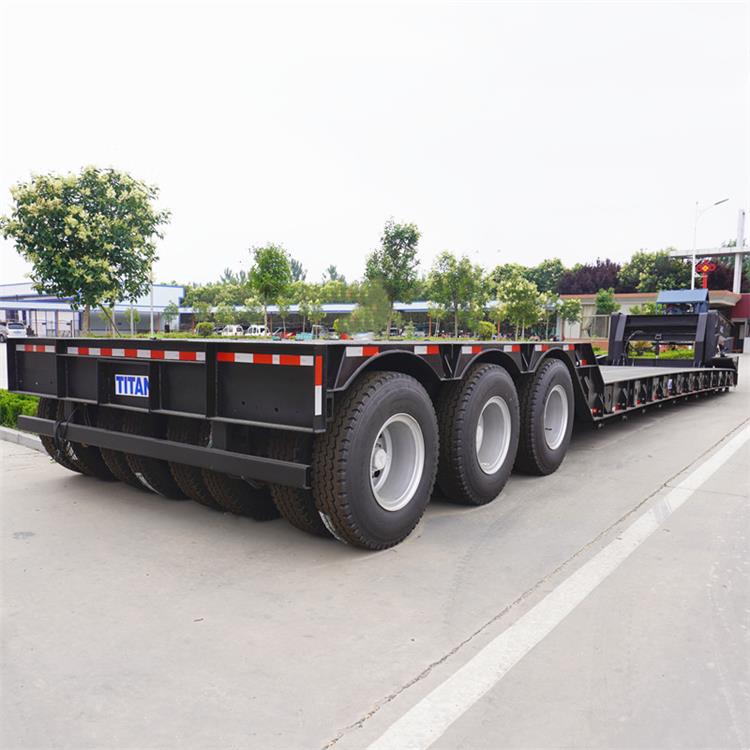

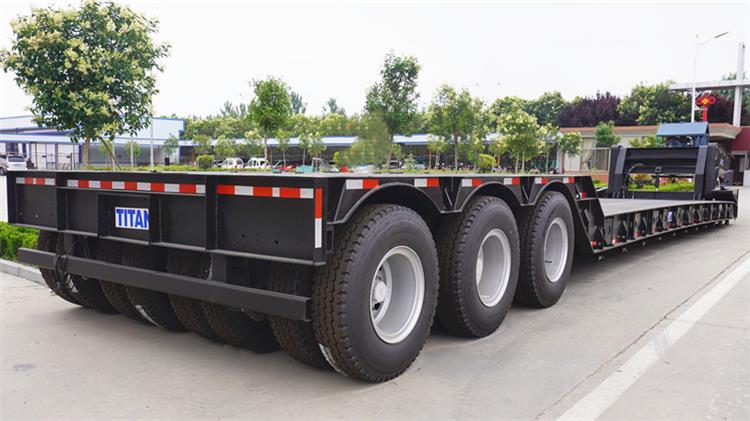

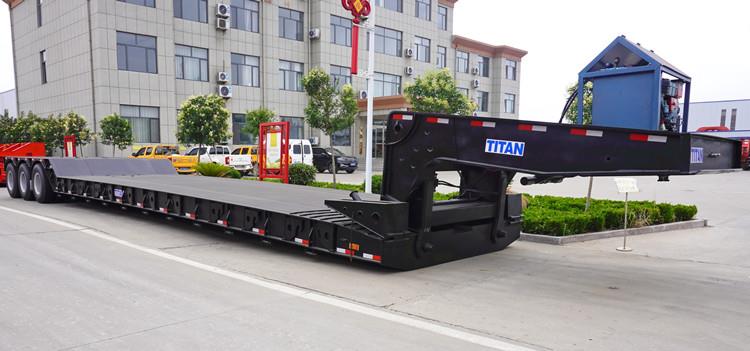

120 tons Hydraulic Detachable Gooseneck Trailer
120 tons Hydraulic Detachable Goose neck Trailer
detachable gooseneck trailer details
Dimension: 16250mm x 3400mm x 2500mm
Loading capacity(T): 120T
Axle: 3 lines 6 axles, 13T/16T, FUWA / BPW / TITAN Brand
Tire: 24 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate

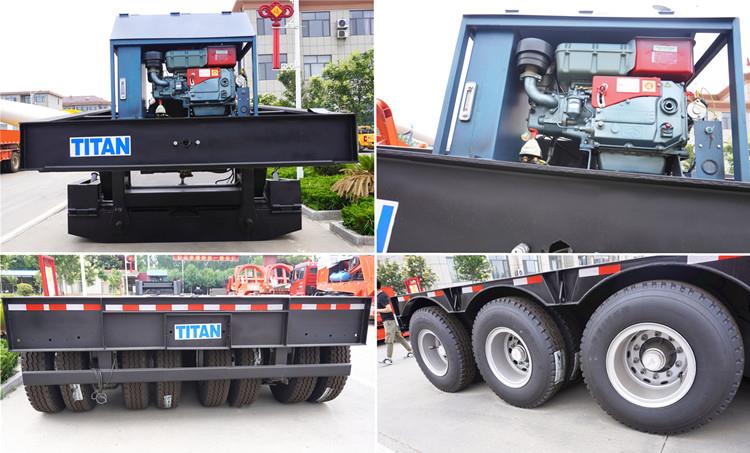

Hydraulic cylinder: 12KW diesel engine with hydraulic station
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
Shipping terms: Transported by the bulk carrier in an RORO or 40HQ container
hydraulic detachable gooseneck trailer drawing
After the production of all detachable gooseneck trailer , pressure tests will be performed.

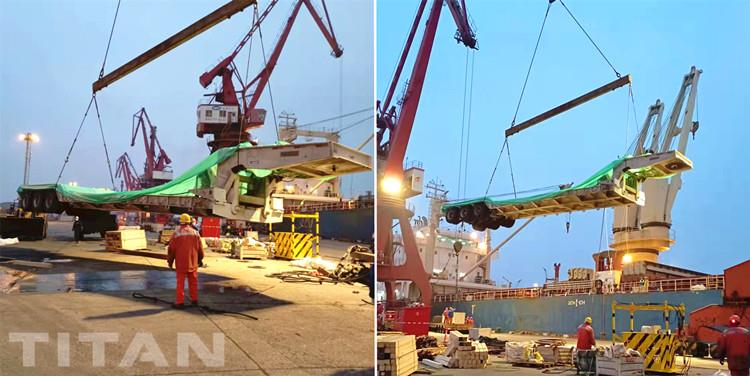

To prevent the detach gooseneck trailer paint from being corroded by seawater, we spray a layer of wax on the surface of the hydraulic detachable gooseneck lowboy trailer before shipping, and then seal it with a waterproof rain cloth.
Through the video, you can know different types of 60ton detachable neck trailer , 3 axle detachable neck trailer , detachable gooseneck trailer for sale, etc.
hydraulic detachable goose neck trailer videos
Welcome to leave your inquiry!
We will provide more details, price, catalog, drawing, videos for you!
