Different Parameters, Different Price. Price Reference Only.
150 Ton Low Bed Semi Trailer for sale can load more wide heavy machines, like the bulldozer, excavator, etc.
150 Ton Low Bed Semi Trailer for Sale can be widened on both sides, So, the low bed semi trailer can load more widen heavy machines, like the bulldozer, excavator, etc.
The height of the tires is lower than the working platform, which makes the height is lower than the normal 150 Ton Low Bed Semi Trailer for Sale. This lower low bed semi trailer is easy to load or unload the heavy machines.

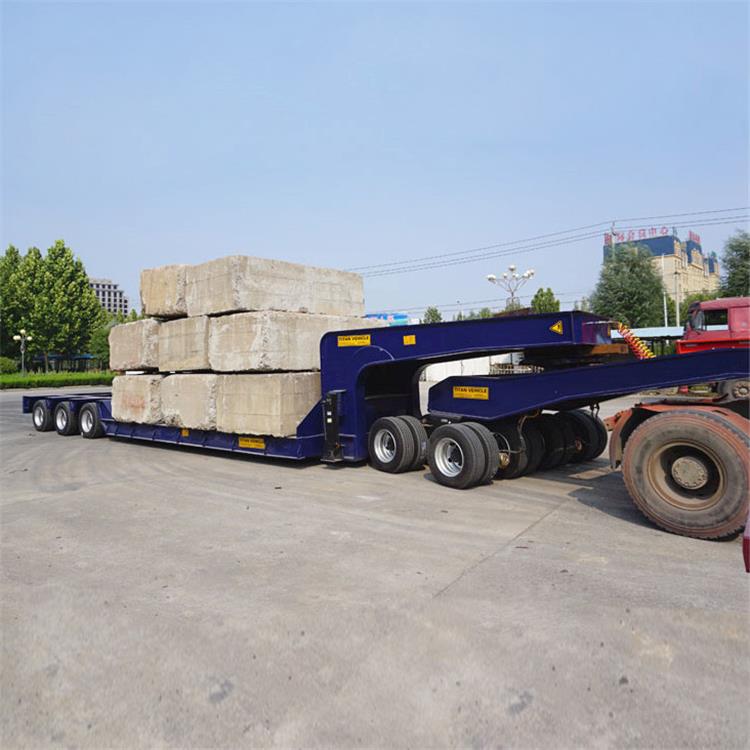

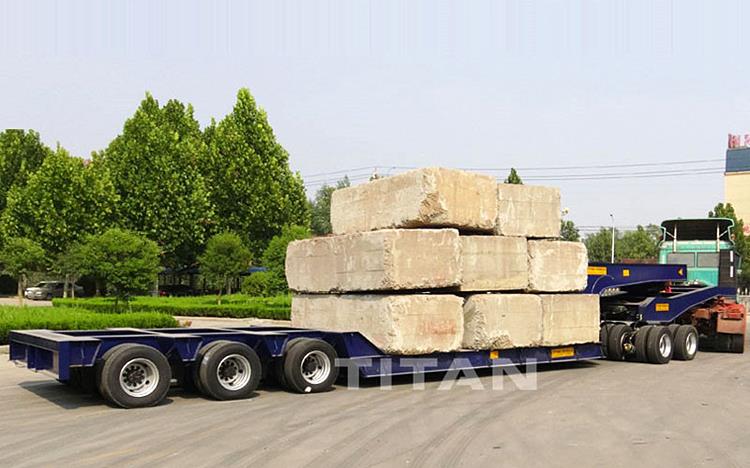

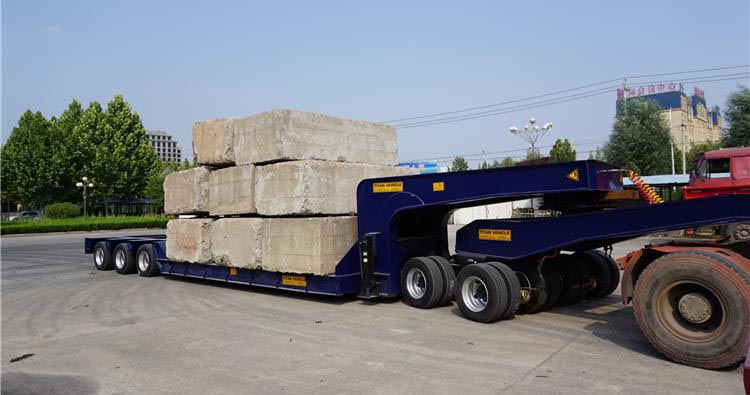

150 Ton Low Bed Semi Trailer for Sale in Jamaica
Details of 3 line 6 axle low bed semi trailer
Overall dimension: 15800mm * 3000mm *3400mm
Loading capacity(T): 120-150T
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20
Tire: 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: Spring ramp
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Through this videos, you can learn about different types of lowbed semi-trailers,like 2axle,3axle,4axle lowbed semi trailer,hydraulic ladder lowbed semi trailer,etc.As well as the process, testing, packaging and customer feedback, etc.

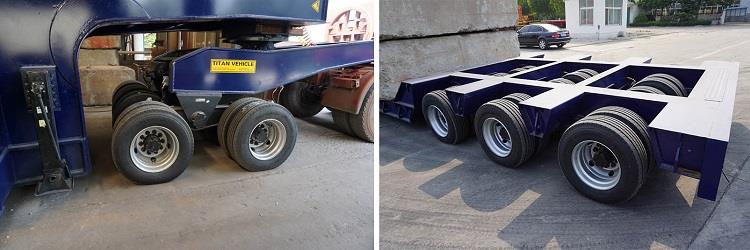

150 ton low loaders 3 line 6 axles Lowbed Trailer with dolly details display video
Get more videos, Welcome to click " TITAN lowbed trailer" on Youtube
