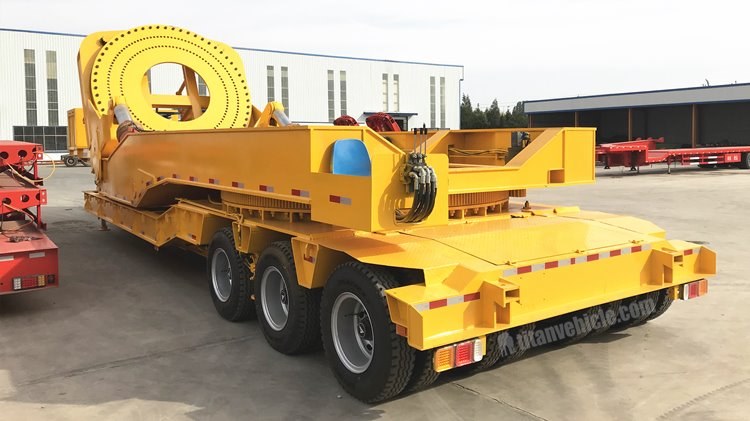

3 Line 6 Axle Wind Turbine Transportation Trailer with rotor adapter used to transport wind turbine blades to the top of the mountain.
The wind turbine transportation trailer uses hydraulic devices to control the wind turbine blades. During transportation, the wind turbine blades can raise, swing, and rotate themselves, avoiding various obstacles such as trees, mountains, and wires on the way, effectively solving the wind turbine blades in mountainous areas.

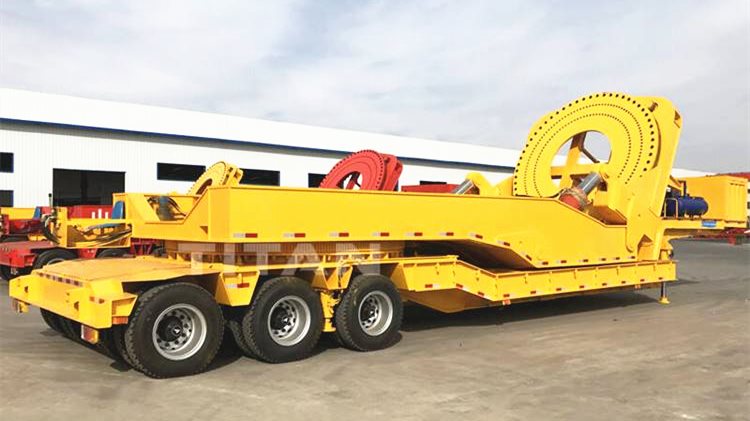

Brand: TITAN Adapter trailer for 80m wind turbine blade transportation
Dimension: 16250mm*3700mm*5000mm
Loading capacity: 23.5 Tons
Axle: 3 lines 6 axles
Max rotation angle: 360°
Hydraulic station: 40KW Four-cylinder Diesel Engine
Tail: Slewing support cylinder with tooling at the tail (horizontally telescopic); with pusher
Transportable wind blade specification:121-155 model

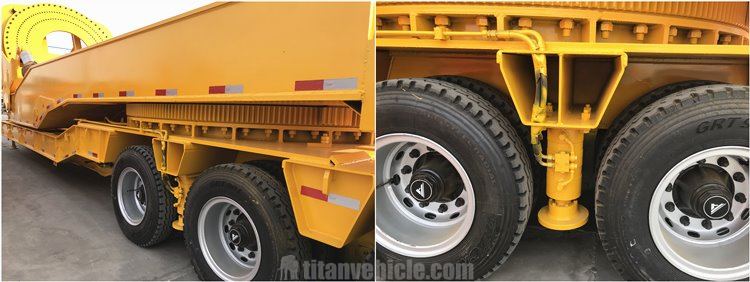

Diameter of lifting cylinder: 320mm; four-axis tire 8.25R16
1. These type of trailers are used to transport turbine blades on mountain roads and curved roads as well.
2. Because of the fact that extendable trailers are too long, when it comes to a mountain road, it is hard to steer hence the need for the special blade trailer.
3. The design is made in such a way that the blade adaptor can lift up and down making it easier for the trailer to steer easily.

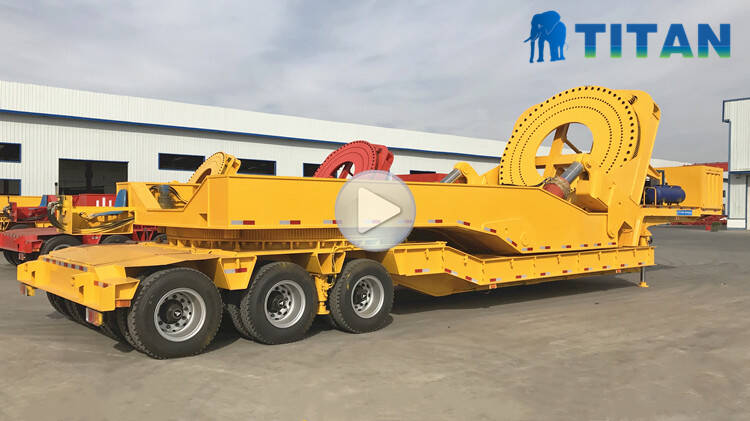

Through the video, you can know different types of 3 line 6 axle wind turbine transportation trailer , wind turbine blade transport trailer , wind turbine blade trailer, etc.
