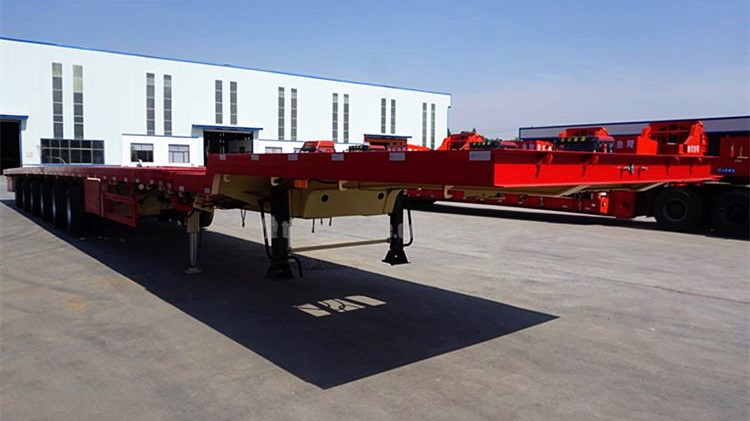

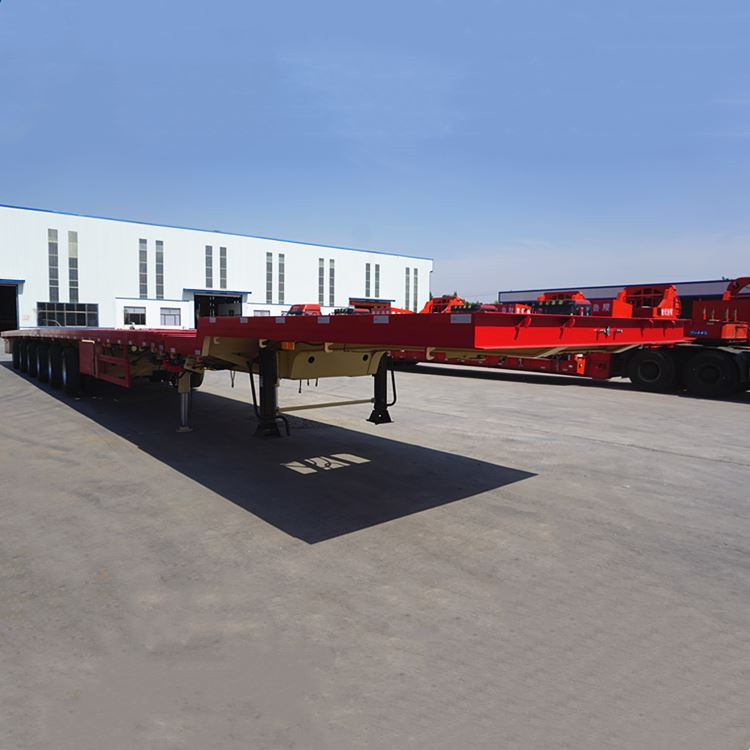

62M Windmill Blade Transport Trailer

62M Windmill Blade Transport Trailer Product Description:

Windmill blade transport trailer, windmill blade trailer, wind blade trailer, 52m, 56m, 62m, 64m hydraulic steering wind power equipment transporter. The extendable windmill blade transport trailer can be up to 62 meters in length, three-axis balanced, remote-controlled power steering, and a mass balance block is installed between the front and rear leaf springs, which can change the deflection of the front and rear leaf springs by the same amount, and force on the front and rear axles balance and so on.

Specification:

Brand: TITAN 62m Extendable Trailer for Windmill Blade Transport

Closed length: 24150mmX3000mmX1650mm

Total length: 62,000mm after extension

Transport: 80m windmill blade

Loading capacity: 90 Ton

Platform thickness: 3 mm

Hydraulic power station: Diesel engine

Axle: 6 axle

Suspension: Hydraulic suspension

Tire: 24 units

Braking system: WABCO emergency valve

Kingpin: 3.5 inch

Landing gear: JOST C200

Advantages:

1. The general extendable transporter of wind turbine blades is a bit similar to the lowbed transporter, but its girder adopts a buckle box type design, and the girder is pulled to adjust the length of the vehicle to adapt to the transportation of wind blades of different lengths.

2. The extendable flatbed semi trailer has flat, concave beam, tire leaking and pull-out structures. The frame is stepped and the longitudinal beam section is I-shaped, which has the characteristics of high rigidity and high strength.

3. The vehicle body is made of high-quality steel, and the main plane of the frame and cargo platform is low, which ensures the stability of transportation and is suitable for carrying various construction machinery, large equipment and steel. It adopts three-axis balance type, two-axis balance type or rigid suspension, with a mass balance block installed between the front and rear leaf springs, which can make the front and rear leaf springs change in equal amounts and balance the forces on the front and rear axles.

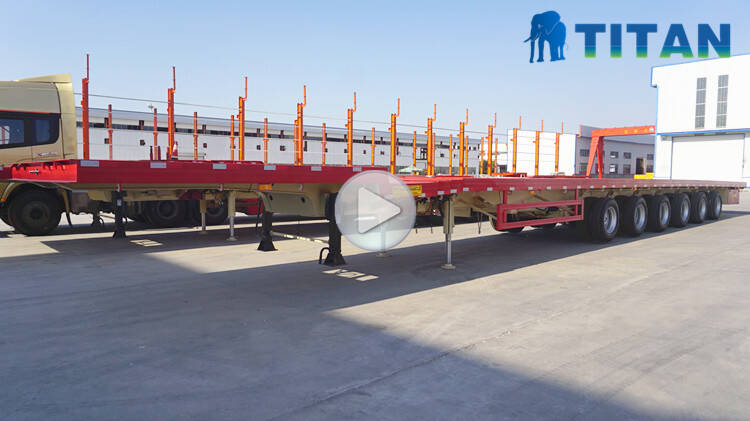

Through the video, you can know different types of 62m windmill blade transport , 6 axle windmill blade transport trailer , windmill blade trailer for sale, etc.

Please click "TITAN Wind Blade Trailer" to get more videos!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
