Price: 17800USD
TITAN 200 Ton Drop Deck Semi Trailer are specifically designed for African road conditions. Heavy Haul Trailers for Sale has no problem to carrying more.
200 Ton Heavy Haul Drop Deck Semi Trailer's main beam carrying capacity is 27% higher than that of ordinary trailers.
Side support’s thickness is 6mm, the distance of the side support is only 450mm. The heavy haul trailers for sale side support firmly connect the main beam and side beam to improve the whole drop deck semi trailer’s loading capacity, prevent the working platform to have cave the deformation.
200 Ton Heavy Haul Drop Deck Semi Trailer for Sale Price
200 Ton Heavy Haul Drop Deck Semi Trailer for Sale Price
200 Ton Heavy Haul Drop Deck Semi Trailer for Sale Price
Overall dimension: 14500mm * 3000mm *3400mm
Loading capacity(T): 200T
Axle: 6 axles, FUWA / BPW / TITAN Brand
Rim: 8.0-20
Tire: 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: Spring ramp, hydraulic ramp
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
The first maintenance is very important for you.
The new truck and trailer have a running-in period, the parts of truck and trailer are very easy to have problems during this period.
The function of the first maintenance, in addition to some routine maintenance, the greater effect is to check quality hazards in advance.
In addition, the truck's first maintenance is usually provided free of charge by the manufacturer.
Do not wasting any chance.
Through this videos, you can learn about different types of lowbed semi-trailers,like 2axle,3axle,4axle lowbed semi trailer,hydraulic ladder lowbed semi trailer,etc.As well as the process, testing, packaging and customer feedback, etc.

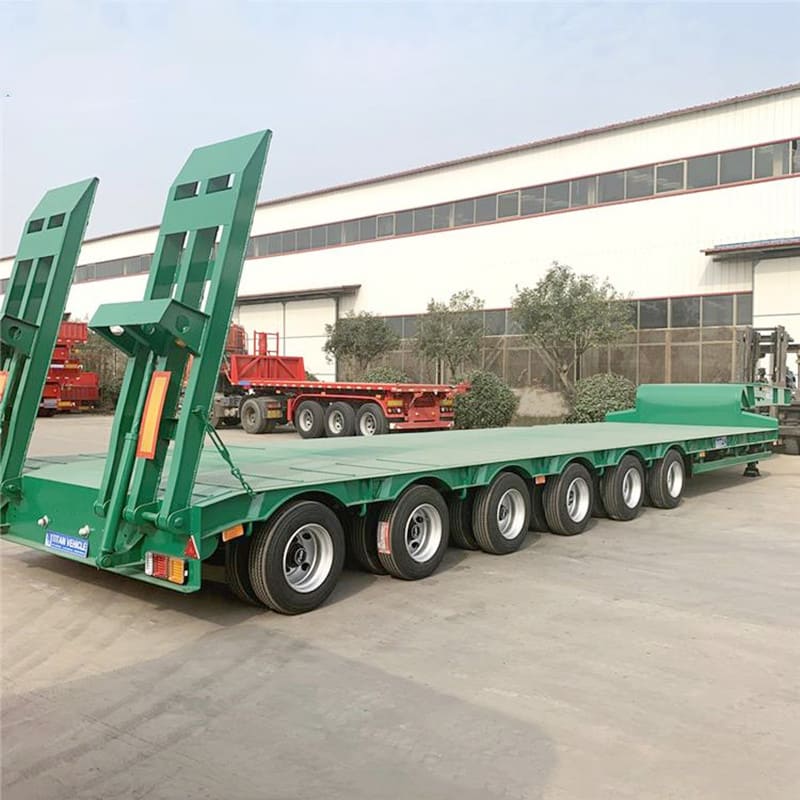

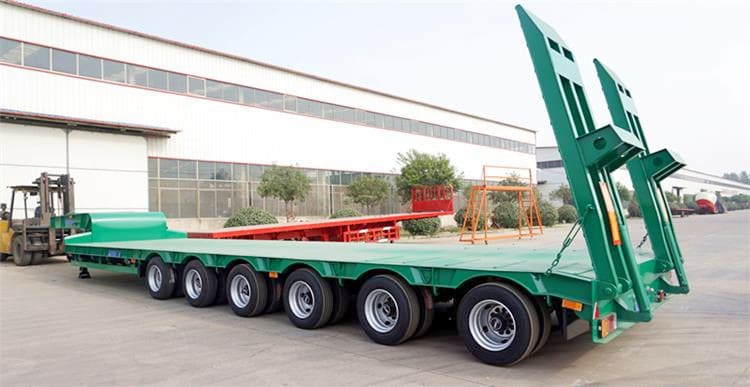

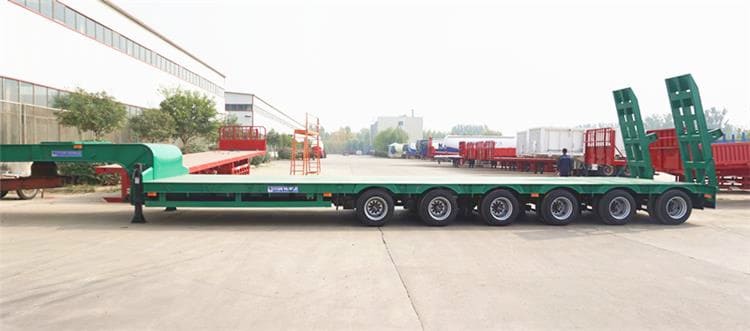

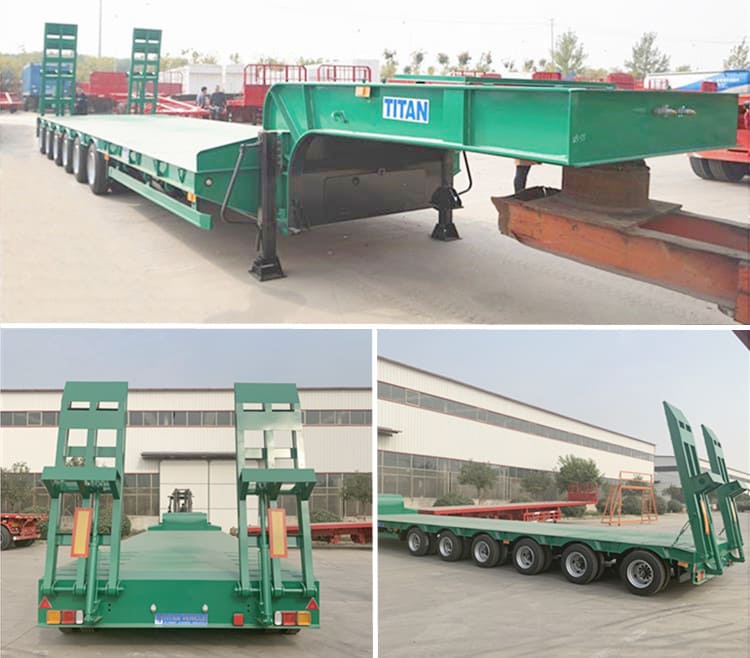

6 Axle drop deck trailer details display video
