Price: 16500USD
The Tri Axle 40ft Low Bed Semi Trailer main cargo platform is low, which ensures the stability of transportation and is suitable for carrying various types of engineering machinery.
Heavy Duty 40ft Low Bed Trailer is usually used to transport a variety of machinery and equipment, heavy equipment, highway construction equipment, large tank body, power station equipment, and various excavators, and are used to transport heavy vehicles.
The tri axle 40ft Low Bed Semi Trailer for Sale main cargo platform is low, which ensures the stability of transportation and is suitable for carrying various types of engineering machinery, large equipment and steel.

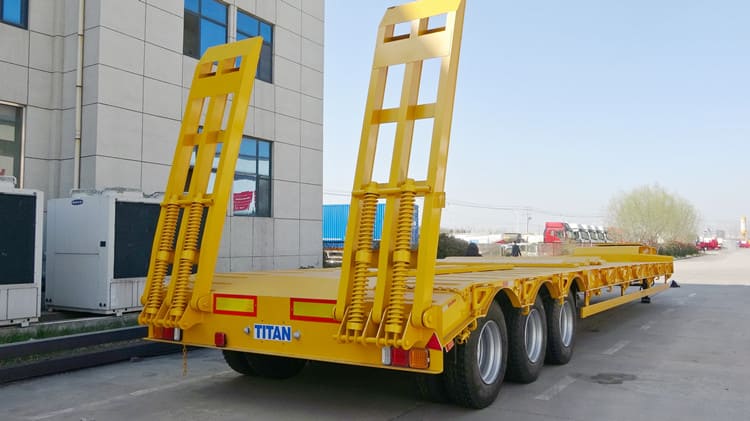

Tri Axle 40Ft Low Bed Semi Trailer for Sale

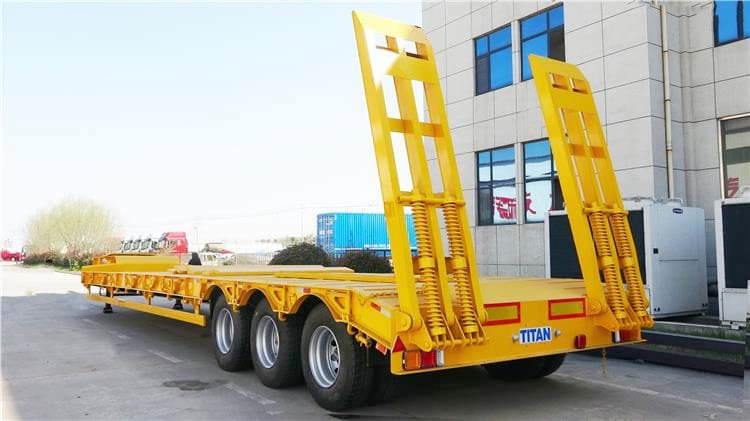

Tri Axle 40Ft Low Bed Semi Trailer for Sale

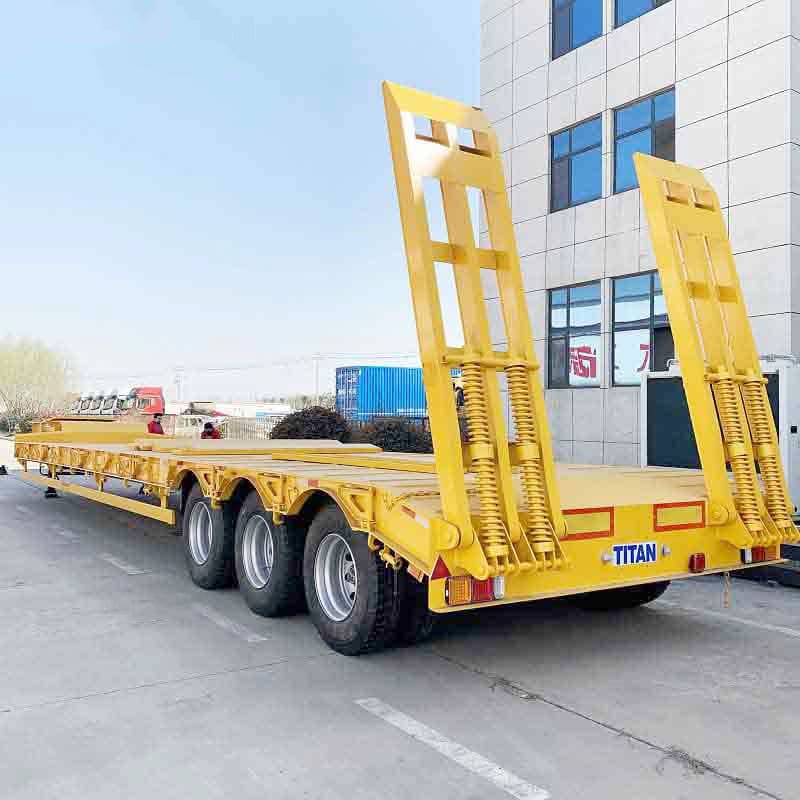

Tri Axle 40Ft Low Bed Semi Trailer for Sale

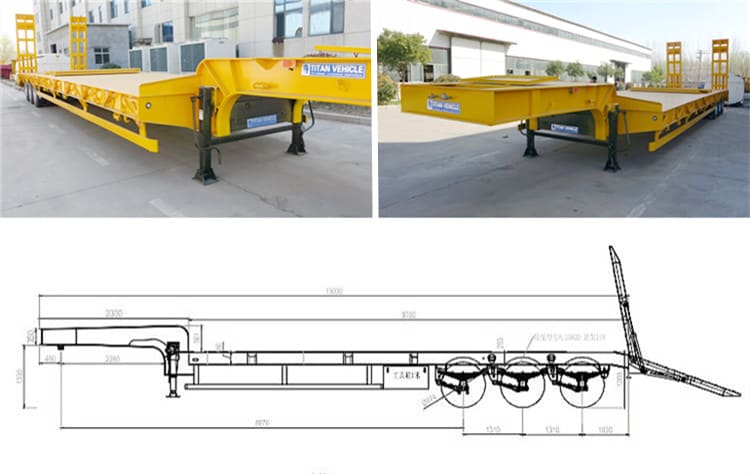

Overall dimension: 13000mm * 3000mm *3400mm
Loading capacity(T): 40-120T
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20
Tire: 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: Spring ramp, hydraulic ramp
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
