Chapter 1: How much does a low bed trailer price?
Chapter 2: Specification of lowbed trailer for sale
2.1: How high is a low bed trailer for sale?
2.2: How long is a lowbed truck for sale?
2.3: Semi low bed trailer for sale dimensions
Chapter 3: How does a low bed trailer work?
Chapter 4: Quality control of high quality lowbed trailer for sale
TITAN's standard 3 axle 60 ton low bed trailer price is 12,000 USD. 4 axle 100 ton low bed truck price is 19,500 USD.
Other heavy duty low bed trailer price with higher load, welcome to leave your inquiry, we will send you quotation.
TITAN semi low bed trailer for sale have different capacities, such as 40 tons, 60 tons, 80 tons and 100 tons, 120 tons, 150 tons. Each type uses the different number of axles from 2, 3, 4 axles to 7, 8 axles.
Advantages of TITAN lowbed trailer for sale
1. TITAN lowbed for sale main beam adopts submerged arc welding technology, that ensures the smooth, sturdy welding seams and avoids welding-opening problems. And also improve the loading capacity. Main beam height is 550-580mm. The front/down plate width is 220mm, and thickness is 22mm.
2. Other accessories on the semi-trailer include toolboxes, spare tire racks, etc. There are also some small accessories such as tight ropes and rope hooks, which are very functional accessories, which need to be selected according to their own types of goods.
3. The series of used lowbeds for sale have flat-plate, concave beam and exposed tire structures, and the longitudinal beams are straight or gooseneck. The frame is stepped and the longitudinal beam section is I-shaped. It has the characteristics of high rigidity and high strength.
4. The loading ramps are made by high strength steel, with high loading capacity, which will not happen to the deformation when carrying heavy equipment.
5. The electrical system of a used lowbeds for sale is composed of seven-core sockets, cables, gas lines, various lamps, etc. It is used for lighting, safety warning, and air supply for brakes. Generally, if you look at the regularity of electrical wiring, you basically know how the quality of this low bed truck price.
6. The used lowbeds for sale adopts world famous brand spare part, ensure high quality and save costs.

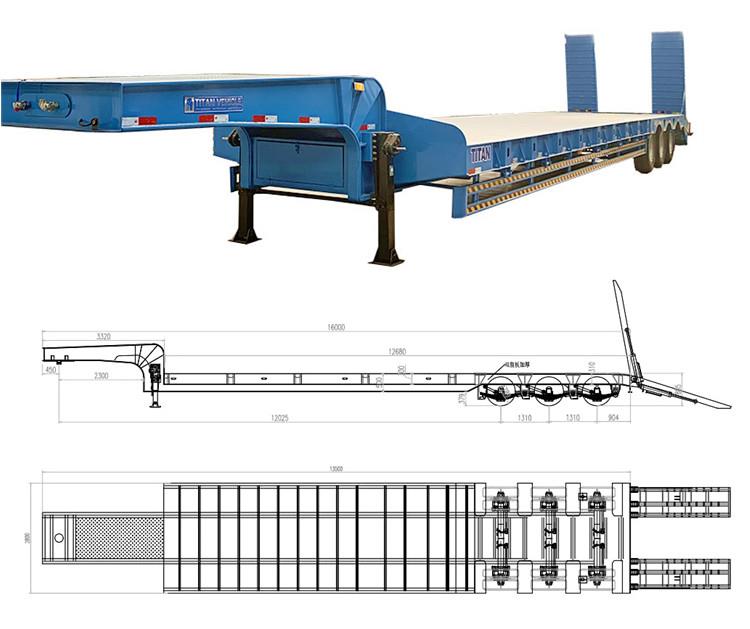

TITAN most popular 3 axle low bed trailer specification
Overall dimension: 16000mm * 3000mm *3400mm
Loading capacity(T): 60-80T
Axle: 3 axles, 13T/16T, FUWA / BPW / TITAN Brand
Tire: 12 units, 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: Spring ramp
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
2.1: How high is a low bed trailer for sale?
low bed trailer height from ground: 850-1250 mm
low bed trailer max-height: 1750 mm
2.2: How long is a lowbed truck for sale?
The 2 axle low bed trailer length: 11500mm
The tri axle low bed trailer for sale length: 13000mm
The 4 axle low bed trailer price length: 15800mm

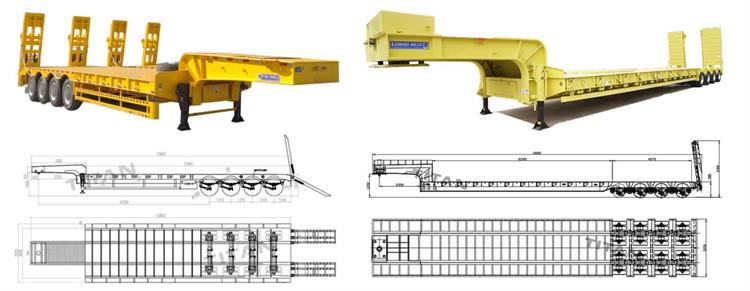

2.3: Semi low bed trailer for sale dimensions
2 axle low bed trailer price dimensions: 11500*2500*2900mm
tri axle low bed trailer for sale dimensions: 13000*3000*3400mm
4 axle lowbed for sale dimensions: 15800*3000*3400mm
2.4: Lowbed for sale capacity
2 axle semi low bed trailer for sale capacity: 30-40 ton
tri axle low bed trailer for sale capacity: 50-80 ton
4 axle lowbed for sale loading capacity: 90-120 ton
When loading mechanical equipment on a low bed semi trailer for sale, it is usually loaded from the rear of the lowbed truck for sale, that is, by moving the mechanical equipment from the rear wheel frame or removing the wheels, and then fixing the mechanical equipment to the lowbed for sale.
When loading mechanical equipment on a low bed trailer, the mechanical equipment is usually loaded from the rear of the semi-trailer, that is, the mechanical equipment is moved from the rear wheel frame or the wheels are removed, and then the mechanical equipment is fixed on the semi-trailer on.

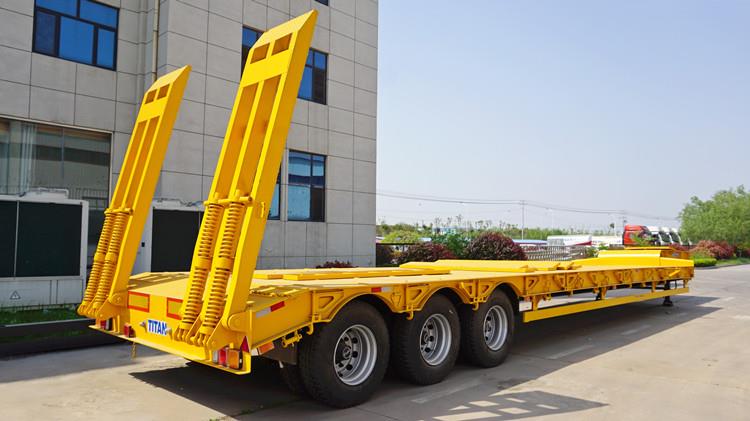

Equipped with a fixed neck at the front and a climbing ramp at the rear of the Tri axle lowbed trailer, no need procedure to detach neck, just put down the mechanical/hydraulic ramp then you can load and unload equipment directly. By this means construction machines need the strong ability to climb the high ramp. Loaded by a ramp at the rear side of the trailer, because of trailer wheels, the height of the rear side is higher, so the loading ramp should be very long then the machine able to climb on it.

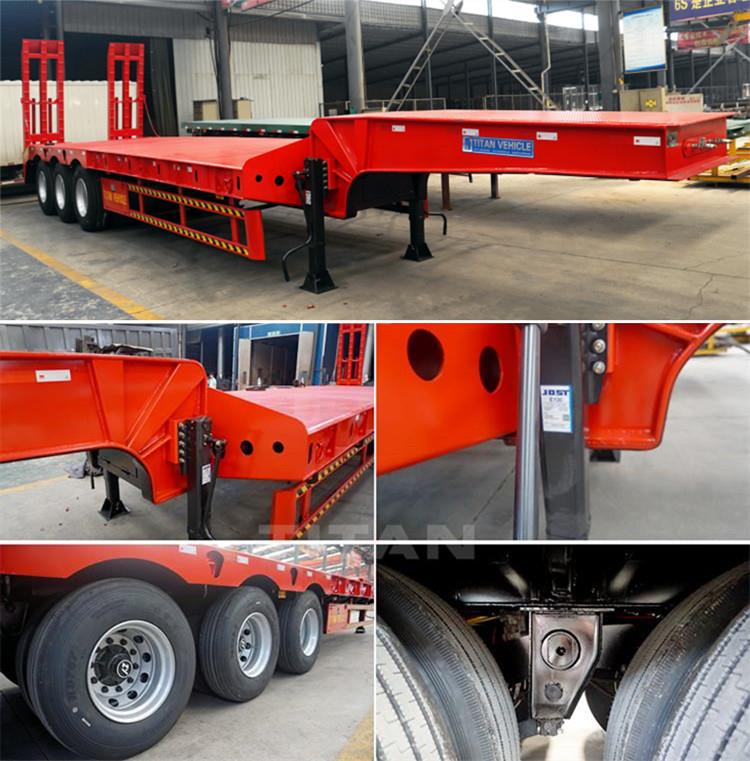

Details of Tri Axle Low Bed Trailer for Sale
This chapter covers the most important components of low bed trailer to check, including:
1. Check that the surface is smooth
It is important to inspect the surface before buying a lowbed trailer for sale and when servicing. The condition of the low bed trailer surface depends on the polishing and sandblasting process.
Make sure the surface is rough to reduce the rate of rust. If the surface is smooth, it is likely to wear and rust. The sandblasting process should be effective whether the surface is rough or smooth.
2. Welding inspection
Welding all the beams and plates is a hassle. Many mechanics take shortcuts in the process. Therefore, care must be taken when inspecting welded parts and joints.
All welded parts should be smooth and uniform. Sometimes soldering leaves some rough surfaces due to thermal deformation. Check all joints for rough surfaces.
Another thing to look out for when inspecting welded parts is cracks and penetration of adjacent beams. If the manufacturer is not careful with the welding process, the welding machine can penetrate the steel plate or cause cracks. This deformation will reduce the strength of the beam.
Also, you need to check for unwelded parts or joints. Sometimes the manufacturer may skip certain seams in this process, which will affect the load capacity of the low bed semi trailer for sale.
Welding is the most important part of the manufacturing process. WPS (Welding Procedure Specification) is a strict standard to ensure the quality of the trailer. It defines the process of each step in detail and records each part welded by different welders.

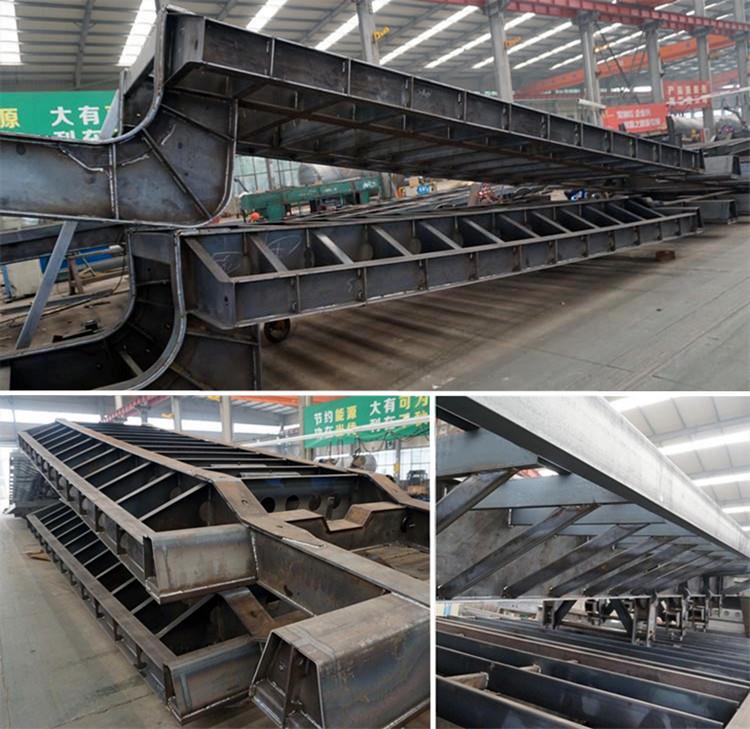

Frame of Lowbed Trailer for Sale in TITAN Factory
3. Beam inspection
Proper welding of beams alone is not enough. You need to check the verticality of the beam on all sides. Check the upper, middle and lower plates of all main beams to make sure they are vertical and straight.
Why is it important to check the squareness of the beam, you might ask? If the beam is not straight and not positioned correctly, the stress will not be balanced.
If the beam is not straight and the slab is not vertical, the beam can easily break. You may need some measuring equipment to check the beam.
4. Axle inspection
Another important aspect of quality control is checking the axles. When checking axles, you need to measure the parallelism and perpendicularity of each axle.
All axes should be parallel and their centerlines should be continuous. The purpose of checking the axles is to make sure the tires are positioned correctly. Once the axles are installed, it is easy to install the tires and keep the trailer stable.
5. Fastener inspection
The main reason for fastener inspection is to make sure all fasteners are tight. Fasteners can come loose if not properly secured or the wrong size.
Therefore, you need to determine if the fastener needs to be tightened or replaced with another fastener at the correct size. You need strong fasteners to ensure the strength and stability of the low bed truck price, especially when fully loaded.
6. Load testing
The manufacturer gives the load capacity for each low bed semi trailer for sale, but you can't rely on that information alone. You need to test whether the lowbed trailer for sale can handle the maximum load specified by the manufacturer.
Check the process of loading the cargo onto the trailer to make sure the ramp is working properly. The used low bed trailers for sale should be easy to use for loading and transporting heavy loads if the trailer has the specified load capacity.
