Price: 17500USD
TITAN 100T Lowbeds Trailer for Sale main beam adopts submerged arc welding technology, which ensures smooth, sturdy welding seams and avoids welding-opening problems.
TITAN Used 100T Lowbeds main beam adopts submerged arc welding technology, which ensures smooth, sturdy welding seams and avoids welding-opening problems. And also improve the loading capacity. Main beam height is 550-580mm. The front/down plate width is 220mm, and thickness is 22mm.
Low Flat Bed Trailer Price can load more widen heavy machines, like the bulldozer, excavator, etc. The height of the tires is lower than the working platform, which makes the height is lower than the normal 100T Lowbeds for Sale. The lower Lowbeds for Sale are easy to load or unload the heavy machines.
Used 100T Lowbeds for Sale - Low Flat Bed Trailer Price
Used 100T Lowbeds for Sale - Low Flat Bed Trailer Price
Used 100T Lowbeds for Sale - Low Flat Bed Trailer Price
Overall dimension: 13000mm * 3000mm *3400mm
Loading capacity(T): 40-120T
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20
Tire: 11.00R20
Suspension: Mechanical suspension

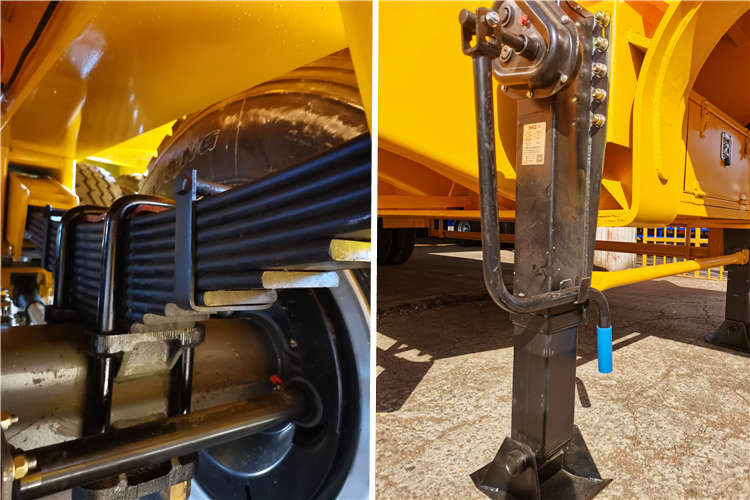

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: Spring ramp, hydraulic ramp
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
