Different Parameters, Different Price. Price Reference Only.
TITAN offers low bed trailer designed to carry 30 tons, 40 tons, 60 tons, 80 tons, 100 tons, 120 tons, 150tons. It's main cargo platform is low, which ensures the stability of transportation.
We produce very durably tri axle low bed trailer with high strength to meet the transport needs. We use high strength steel material to ensure the capacity, the load can be up to 60 to 100 ton payload. The loading ramps are made by high strength steel, with high loading capacity, will not happen to the deformation when carrying heavy equipment.
Tri Axle Low bed trailer is a heavy-duty vehicle that is to transport heavy, wide, and tall cargo. Tri Axle low bed trailers are used in different industries: heavy vehicles, rail vehicles, mining machinery, forestry machinery, construction, agricultural, etc, We can customize the Used Low Loaders for Sale according to your needs.

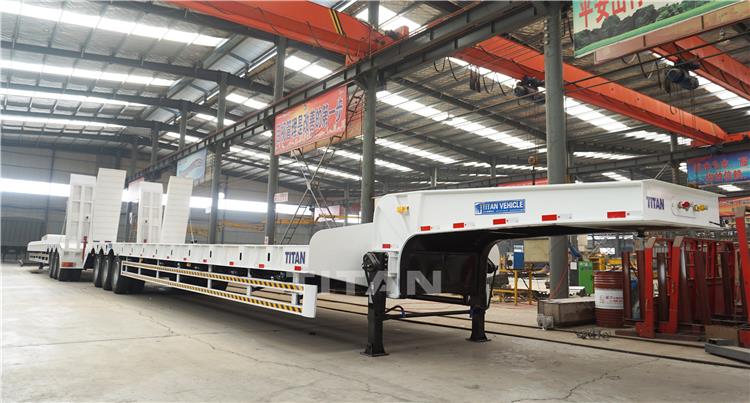

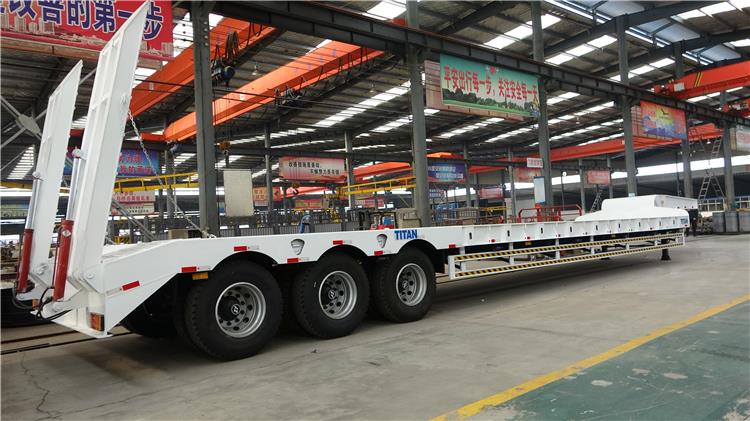

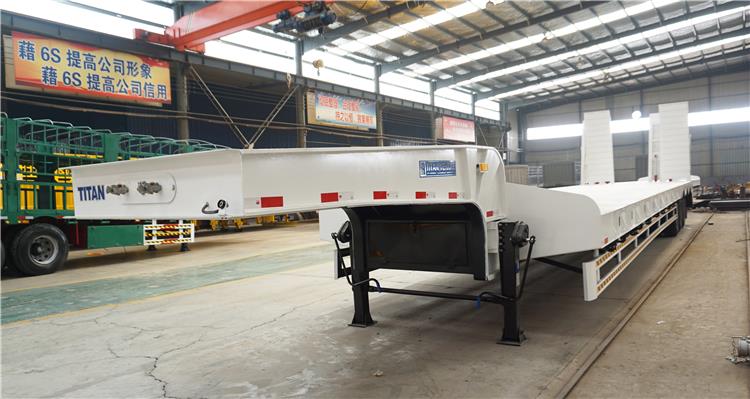

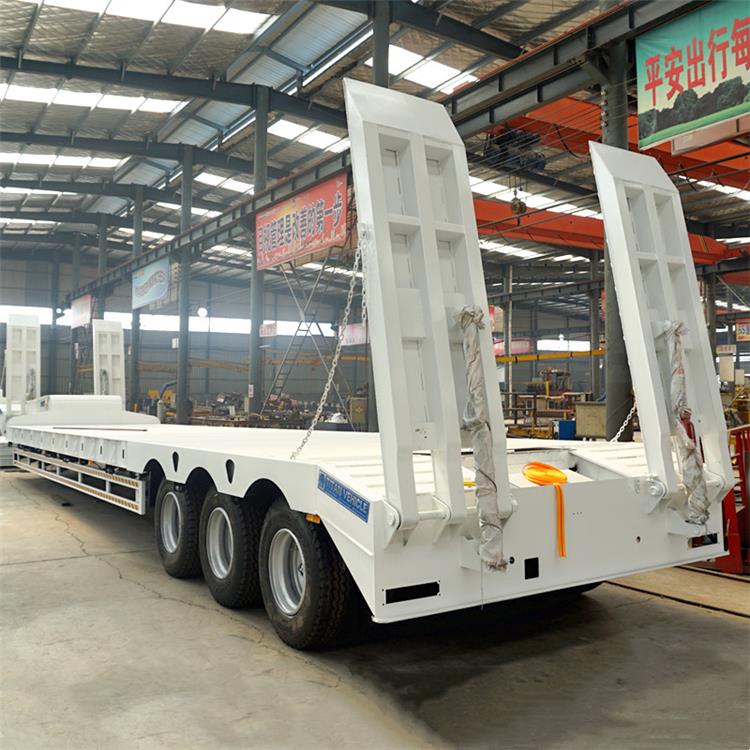

Tri Axle 60 Ton Low Bed Semi Trailer for Excavator Transport
Tri Axle 60 Ton Low Bed Semi Trailer for Excavator Transport
Overall dimension: 15800mm * 3000mm *3400mm
Loading capacity(T): 60T
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20
Tire: 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: Spring ramp
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Through this video below, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.
